COGIS - WELL SCOUT CARD

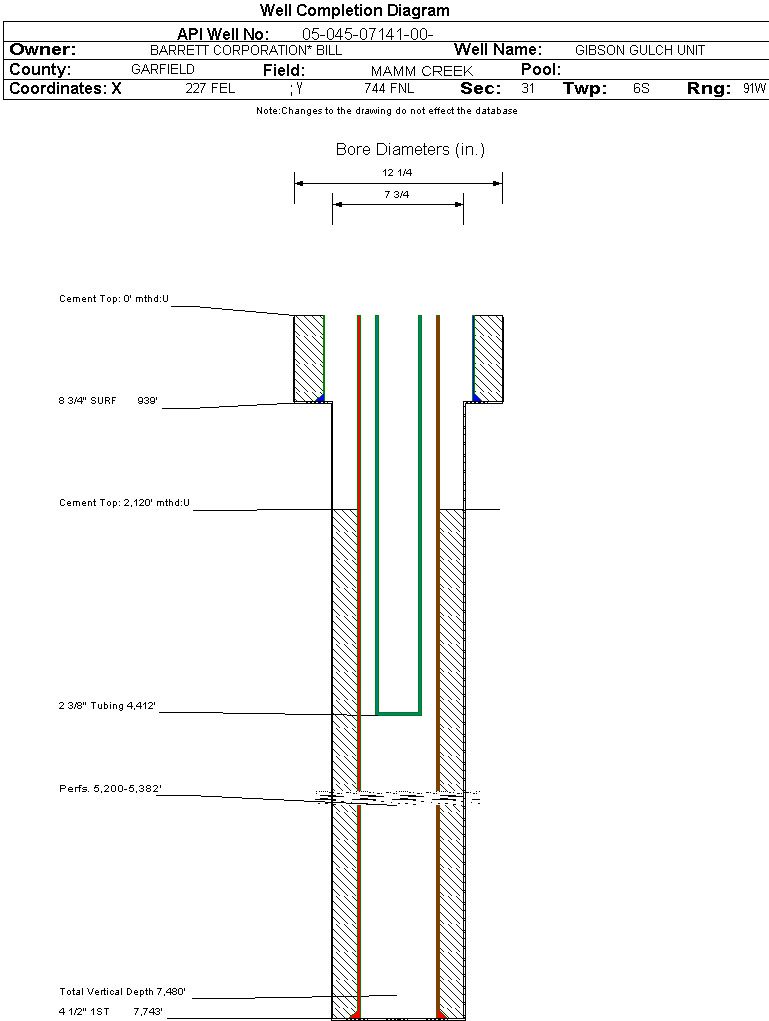

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07141		Well Classification: GW Status: SI - 3/1/2023
Well Name/No:GIBSON GULCH UNIT #1-31
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12647
Facility Status:SIStatus Date3/1/2023
FacilityID:211381LocationID:323971
County:GARFIELD #045Location:NENE 31 6S91W 6
Field:MAMM CREEK - #52500Elevation:5977 ft.
Basin:PICEANCE BASIN
Planned Location:744FNL  227 FELLat/Long: 39.489201 / -107.588041Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.489427 / -107.587890Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 3/1/2023             Measured TD: 7743 ft.    Vertical TD: 7480 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 3/1/2023
Wellbore Permit
Permit #:960961 Expiration Date:12/26/1997
Proposed Top PZ Location:Sec: Twp: Footage: 958 FSL  3471 FEL
Bottom Hole Location:Sec: Twp: Footage: 1990 FSL  3407 FWL
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: 0 , Unit Acreage: 0, Drill Unit: U
Wellbore Completed
Completion Date:8/21/2003
Spud Date:5/12/2003Spud Date Is:ACTUAL
Measured TD:7743 ft.Measured PB depth:0 ft.
True Vertical TD:7480 ft.True Vertical PB depth:7688 ft.
Top PZ Location:Sec: Twp: Footage: 958 FSL  3471 FEL
Bottom Hole Location:Sec: Twp: Footage: 1990 FSL  3407 FWL
Log Types:RST/GR/CCL, CBL/GR/CCL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.75 in., Top: 0 ft., Depth: 939 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 0 ft., Bottom: 939 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7743 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 765, Top: 2120 ft., Bottom: 7743 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.3950 ft.NN
OHIO CREEK3280 ft.
WILLIAMS FORK3951 ft.7422 ft.NN
ROLLINS7423 ft.7743 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  SI - 3/1/2023                  Interval Top: 5200 ft.    Interval Bottom: 5382 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:4/27/1997Choke Size:0.297 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:8/21/2003
Treatment Summary:TOTAL;FRAC W/200,300LBS 20/40 PREMIUM SAND.5243 BBL 2% KCL(FOR BREAKDOWN SEE SCANNED DOC#01259104)
Tubing Size:2.375 in.Tubing Setting Depth:4412 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/30/2004Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 0
BTU_GAS 1240
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 20
CASING_PRESS 120
MCF_GAS 20
Perforation Data:
Interval Top:5200 ft.# Of Holes:60
Interval Bottom:5382 ft.Hole Size:0.43 in.
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/03/2028
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
08/31/2021
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
