COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07129		Well Classification: GW Status: PA - 10/17/2014
Well Name/No:UNOCAL #GM 43-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12587
Facility Status:PAStatus Date10/17/2014
FacilityID:211369LocationID:323964
County:GARFIELD #045Location:NESE 2 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5216 ft.
Basin:PICEANCE BASIN
Planned Location:2213FSL  923 FELLat/Long: 39.465509 / -108.070665Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.465694 / -108.070910Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 10/17/2014             Measured TD: 6375 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 10/17/2014
Wellbore Permit
Permit #:960900 Expiration Date:12/11/1997
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:4/30/1997
Spud Date:3/20/1997Spud Date Is:ACTUAL
Measured TD:6375 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON, CBL

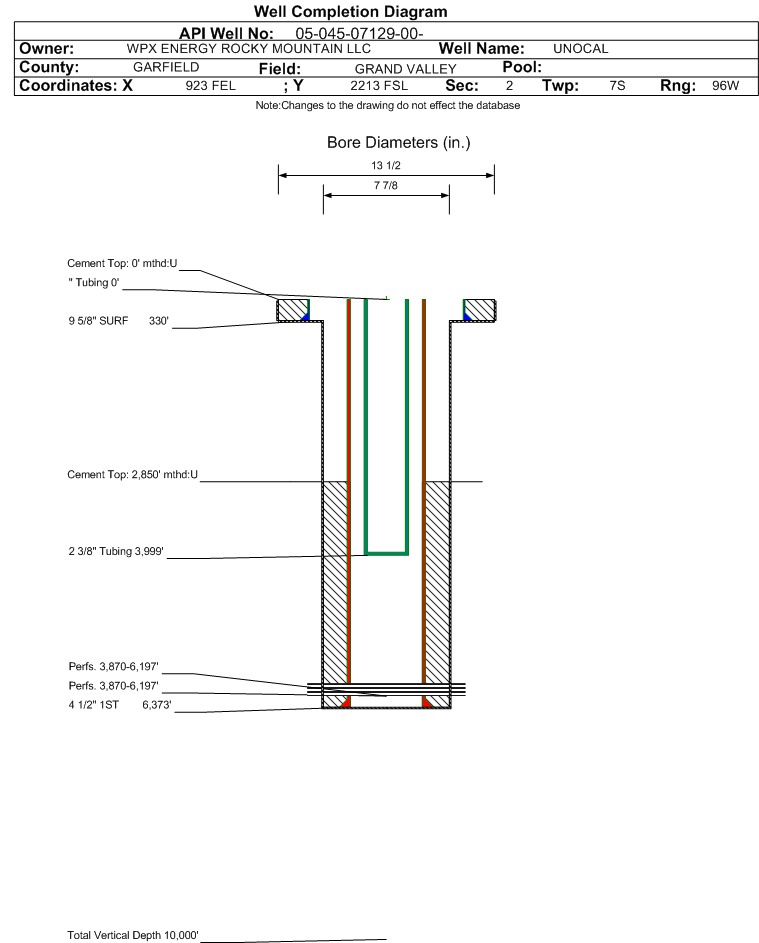

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 330 ft., Weight: 36# , Citings Type: ACTUAL
Cement:Sacks: 175, Top: 0 ft., Bottom: 330 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6373 ft., Weight: 11.6# , Citings Type: ACTUAL
Cement:Sacks: 1140, Top: 2850 ft., Bottom: 6373 ft., Determination Method: CBL
Additional Cement:String Type: S.C. 1.1 , Top: , Depth: 3820 ft., Bottom: 3820 ft., Sacks: 100, Method:
FormationInterval TopLog BottomCoredDSTs
FORT UNION1798 ft.NN
MESAVERDE3208 ft.NN
CAMEO COAL5784 ft.NN
ROLLINS6392 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  AB - 10/14/2014                Interval Top: 3870 ft.    Interval Bottom: 6197 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:4/30/1997
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
CALC_BBLS_H2O 12
CALC_BBLS_OIL 1
CALC_GOR 205000
CALC_MCF_GAS 2050
CASING_PRESS 1880
TUBING_PRESS 1810
Perforation Data:
Interval Top:3870 ft.# Of Holes:80
Interval Bottom:6197 ft.Hole Size:0.35 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 10/14/2014                Interval Top: 3870 ft.    Interval Bottom: 6197 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/30/1997
Treatment Summary:5845-6197' 1000 GALS 7 1/2% HCL, 502500# 20/40, 2409 BBLS GEL; 5229-5721' 1000 GALS 7 1/2% HCL, 500000# 20/40, 2278 BBLS GEL; 4569-4836' 1000 GALS 7 1/2% HCL, 500000# 20/40, 2356 BBLS GEL; 3870-4127' 750 GALS 7 1/2% HCL, 173195# 20/40, 2546 BBLS (CONT)
Tubing Size:2.375 in.Tubing Setting Depth:3999 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/23/2004Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 688
CASING_PRESS 1018
TUBING_PRESS 913
Perforation Data:
Interval Top:3870 ft.# Of Holes:80
Interval Bottom:6197 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/17/2014
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
