COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07118		Well Classification: GW Status: PR - 8/4/1997
Well Name/No:EATON #GM 200-4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12502
Facility Status:PRStatus Date8/4/1997
FacilityID:211358LocationID:333109
County:GARFIELD #045Location:NENE 4 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5427 ft.
Basin:PICEANCE BASIN
Planned Location:400FNL  491 FELLat/Long: 39.472068 / -108.105756Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.472176 / -108.105689Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/4/1997             Measured TD: 6329 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/4/1997
Wellbore PermitDIRECTIONAL
Permit #:960864 Expiration Date:12/3/1997
Proposed Depth/Form:
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 510-2 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:7/24/1997
Measured TD:6329 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:

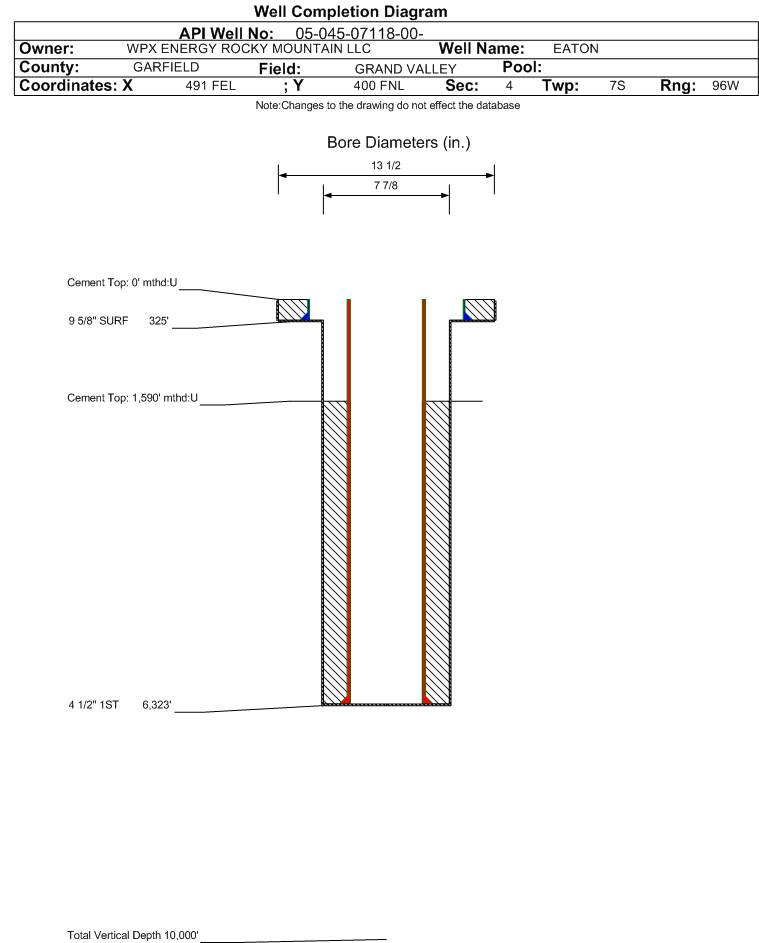

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 325 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 325 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6323 ft., Weight: 11.6&12.6, Citings Type: ACTUAL
Cement:Sacks: 1150, Top: 1590 ft., Bottom: 6323 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT SCOTT1960 ft.
MESAVERDE3311 ft.
CAMEO COAL5810 ft.
ROLLINS6300 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/4/1997

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:7/24/1997Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 8/4/1997

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:1,364.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)10218
GOR851500
GOR DeterminationMCFE
Average BOE per Day4.863
Average MCFE per Day28.193

 Federal Financial Assurance  i

 Tribal Well  i No
