COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07064		Well Classification: GW Status: PR - 11/10/1996
Well Name/No:ESTATE OF CLAUDE B HAMILL #RMV-28-27
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13351
Facility Status:PRStatus Date11/10/1996
FacilityID:211305LocationID:323938
County:GARFIELD #045Location:SWSE 27 6S94W 6
Field:RULISON - #75400Elevation:5297 ft.
Basin:PICEANCE BASIN
Planned Location:403FSL  2166 FELLat/Long: 39.490150 / -107.872479Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.490108 / -107.872480Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/10/1996             Measured TD: 7100 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/10/1996
Wellbore Permit
Permit #:960389 Expiration Date:11/15/1996
Proposed Depth/Form:
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:COC56657
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:11/7/1996
Measured TD:7100 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:

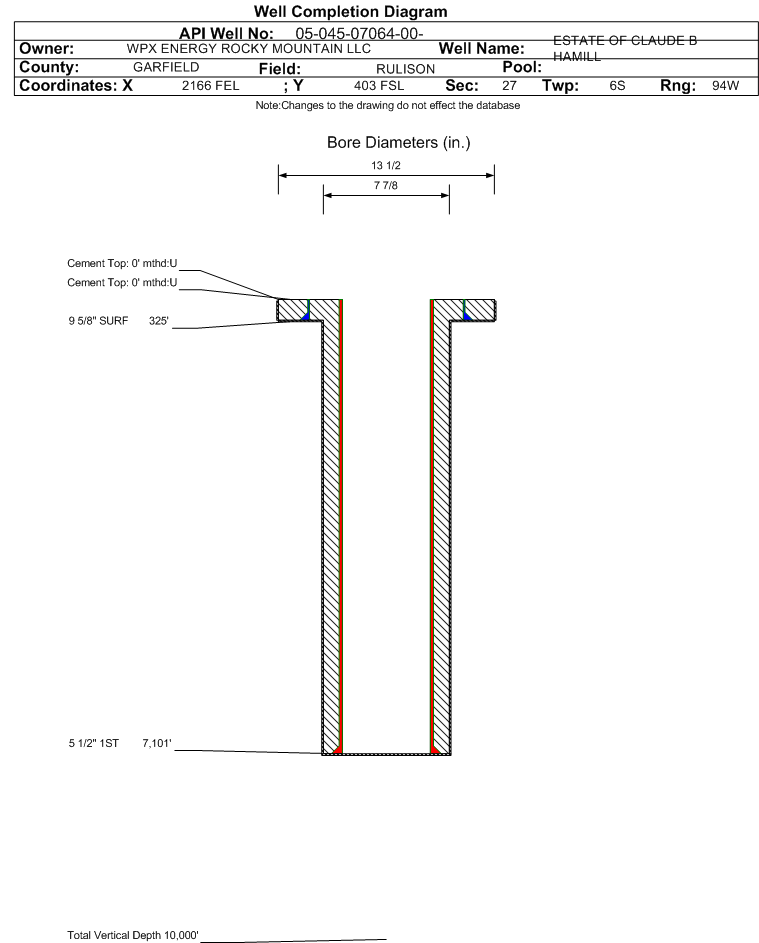

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 325 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 190, Top: 0 ft., Bottom: 325 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7101 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 1250, Top: 4270 ft., Bottom: 4270 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
MESAVERDE3795 ft.
CAMEO COAL6482 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/10/1996

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 11/10/1996

 Completed Information for Formation WILLIAMS FORK
1st Production Date:11/7/1996Choke Size:0.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)34
Total Gas Produced (MCF)16017
GOR471088
GOR DeterminationMCFE
Average BOE per Day7.659
Average MCFE per Day44.428

 Federal Financial Assurance  i

 Tribal Well  i No
