 Surface Location
 API# 05-045-07061		Well Classification: GW Status: SI - 12/1/2023
Well Name/No:UNOCAL #GM 44-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date12/1/2023
FacilityID:211302LocationID:334887
County:GARFIELD #045Location:SESE 2 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5185 ft.
Basin:PICEANCE BASIN
Planned Location:553FSL  781 FELLat/Long: 39.460989 / -108.070625Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.461156 / -108.070891Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 12/1/2023             Measured TD: 6274 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 12/1/2023
Wellbore Permit
Permit #:981062 Expiration Date:11/24/1999
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 510-1 , Unit Acreage: 40, Drill Unit: SESE
Wellbore Completed
Completion Date:3/11/1999
Measured TD:6274 ft.Measured PB depth:6240 ft.
True Vertical TD:0 ft.True Vertical PB depth:

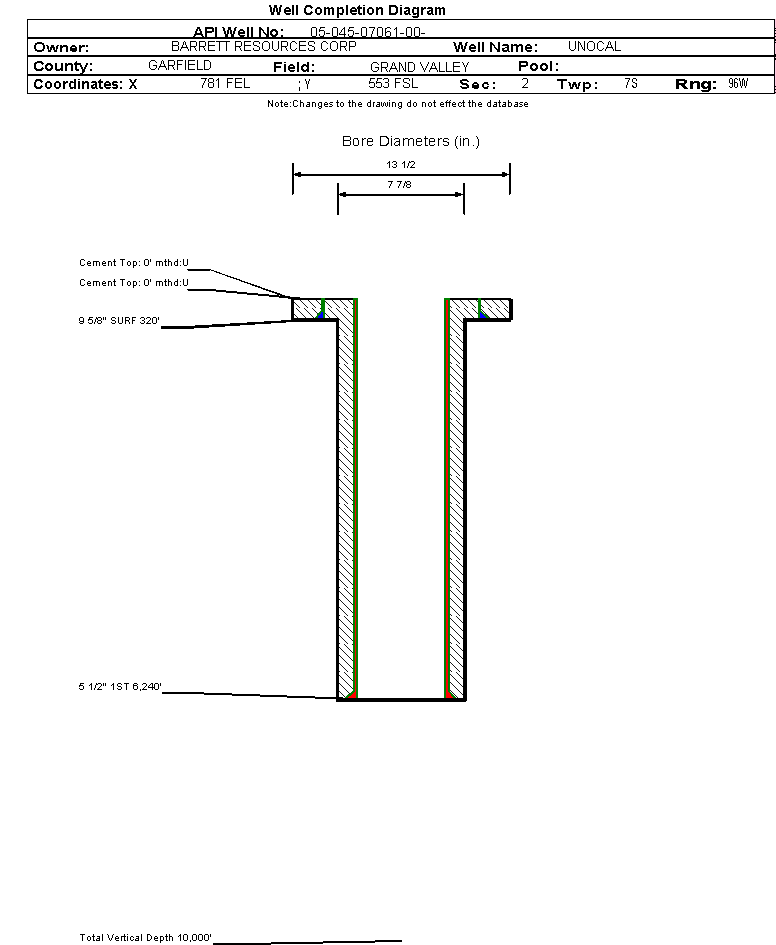

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 320 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 175, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6240 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FORT UNION1687 ft.
MESAVERDE3152 ft.
CAMEO COAL5648 ft.
ROLLINS6171 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  SI - 12/1/2023

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:3/11/1999Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.
Primary Well Designation:
Noticed Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveYNoticed Date
10/14/2025
Defined Inactive (SI )YDefined Inactive
11/30/2023
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
