COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06920		Well Classification: GW Status: PR - 1/17/1995
Well Name/No:JUHAN #RMV 22-35
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13042
Facility Status:PRStatus Date1/17/1995
FacilityID:211161LocationID:323908
County:GARFIELD #045Location:NWNE 35 6S94W 6
Field:RULISON - #75400Elevation:5440 ft.
Basin:PICEANCE BASIN
Planned Location:739FNL  2060 FELLat/Long: 39.487090 / -107.853249Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.487199 / -107.853254Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/17/1995             Measured TD: 7250 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/17/1995
Wellbore Permit
Permit #:941418 Expiration Date:3/25/1995
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:14080016937
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 0 , Unit Acreage: 640, Drill Unit: ALL
Wellbore Completed
Completion Date:1/11/1995
Measured TD:7250 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:

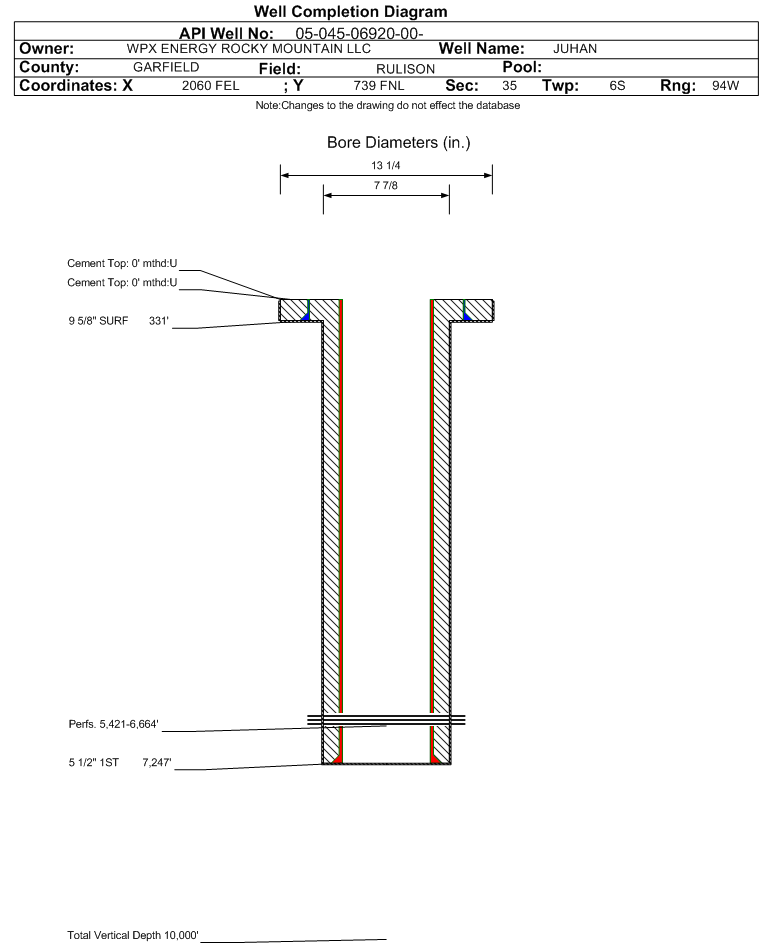

Casing:String Type: SURF, Hole Size: 13.25 in., Size: 9.625 in., Top: 0 ft., Depth: 331 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 331 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7247 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 1360, Top: 3636 ft., Bottom: 7247 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
MESAVERDE3754 ft.
CAMEO COAL6715 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 1/17/1995                 Interval Top: 5421 ft.    Interval Bottom: 6664 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:1/11/1995Choke Size:0.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/17/1995Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 20
BBLS_OIL 10
CASING_PRESS 1700
MCF_GAS 1400
TUBING_PRESS 1600
Perforation Data:
Interval Top:5421 ft.# Of Holes:60
Interval Bottom:6664 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)22
Total Gas Produced (MCF)11492
GOR522363
GOR DeterminationMCFE
Average BOE per Day5.491
Average MCFE per Day31.845

 Federal Financial Assurance  i

 Tribal Well  i No
