COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06747		Well Classification: GW Status: PR - 1/17/1995
Well Name/No:CLOUGH #GV 25-27
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12855
Facility Status:PRStatus Date1/17/1995
FacilityID:210989LocationID:311574
County:GARFIELD #045Location:NWNE 27 6S94W 6
Field:RULISON - #75400Elevation:5220 ft.
Basin:PICEANCE BASIN
Planned Location:690FNL  2275 FELLat/Long: 39.501489 / -107.873129Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.501611 / -107.873234Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/17/1995             Measured TD: 8450 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/17/1995
Wellbore Permit
Permit #:910235 Expiration Date:7/27/1991
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 139-20 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:6/28/1991
Measured TD:8450 ft.Measured PB depth:8390 ft.
True Vertical TD:0 ft.True Vertical PB depth:

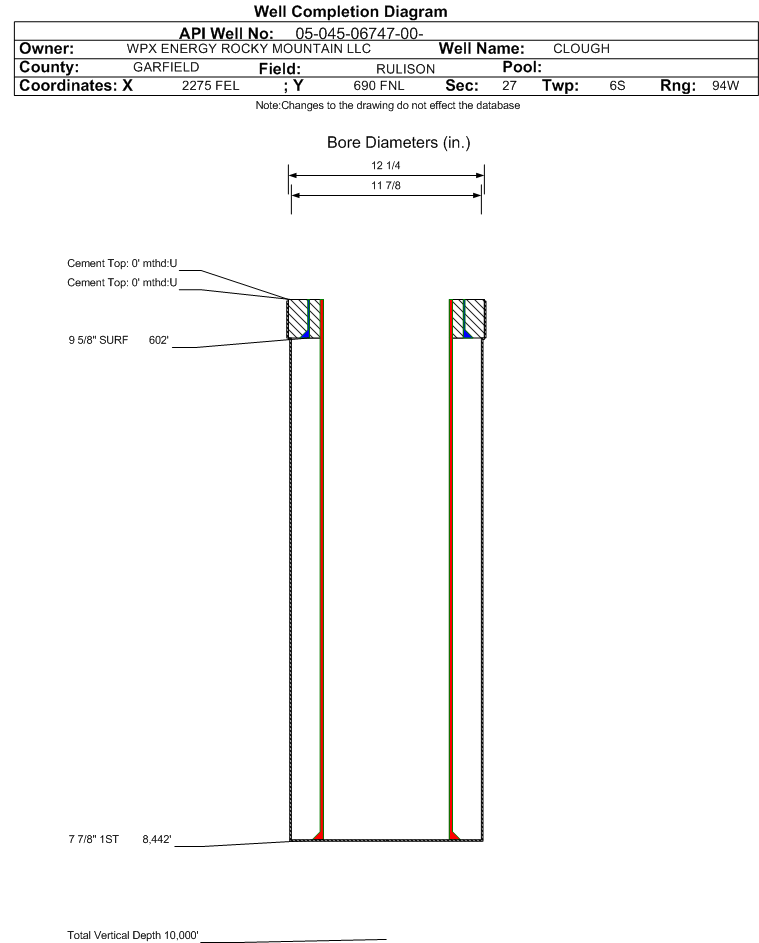

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 602 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 250, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: , Size: 7.875 in., Top: 0 ft., Depth: 8442 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
MESAVERDE3820 ft.
CAMEO COAL6634 ft.
ROLLINS7556 ft.
COZZETTE7930 ft.
CORCORAN8193 ft.

Formation CRCRN                   Formation Classification:  GW                   Status:  PR - 1/17/1995                 Interval Top: 8193 ft.

 Completed Information for Formation CORCORAN
1st Production Date:N/AChoke Size:
Formation Name:CORCORANCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CRCRN.
No Perforation Data was found for formation CRCRN.

Formation CRCMS                   Formation Classification:  GW                   Status:  CM - 7/3/1991

 Completed Information for Formation CAMEO SAND-CORCORAN
1st Production Date:N/AChoke Size:0.000 in.
Formation Name:CAMEO SAND-CORCORANCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CRCMS.
No Perforation Data was found for formation CRCMS.

Formation CRCWF                   Formation Classification:  GW                   Status:  CM - 1/17/1995

 Completed Information for Formation CRCRN-CMEO SD-WMFK
1st Production Date:N/AChoke Size:
Formation Name:CRCRN-CMEO SD-WMFKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CRCWF.
No Perforation Data was found for formation CRCWF.

Formation ILES                     Formation Classification:  GW                     Status:  CM - 1/17/1995

 Completed Information for Formation ILES
1st Production Date:N/AChoke Size:
Formation Name:ILESCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation ILES.
No Perforation Data was found for formation ILES.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 1/17/1995

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)30
Total Gas Produced (MCF)25876
GOR862533
GOR DeterminationMCFE
Average BOE per Day12.306
Average MCFE per Day71.385

 Federal Financial Assurance  i

 Tribal Well  i No
