COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06619		Well Classification: CBM Status: PR - 10/1/1995
Well Name/No:UNION #GV 5-33
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12897
Facility Status:PRStatus Date10/1/1995
FacilityID:210861LocationID:335237
County:GARFIELD #045Location:NWSE 33 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5410 ft.
Basin:PICEANCE BASIN
Planned Location:1966FSL  1647 FELLat/Long: 39.478538 / -108.109786Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.478623 / -108.109592Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 10/1/1995             Measured TD: 6530 ft.    Vertical TD: 6528 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 10/1/1995
Wellbore Permit
Permit #:890983 Expiration Date:3/6/1990
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:1/23/1990
Measured TD:6530 ft.Measured PB depth:6447 ft.
True Vertical TD:6528 ft.True Vertical PB depth:

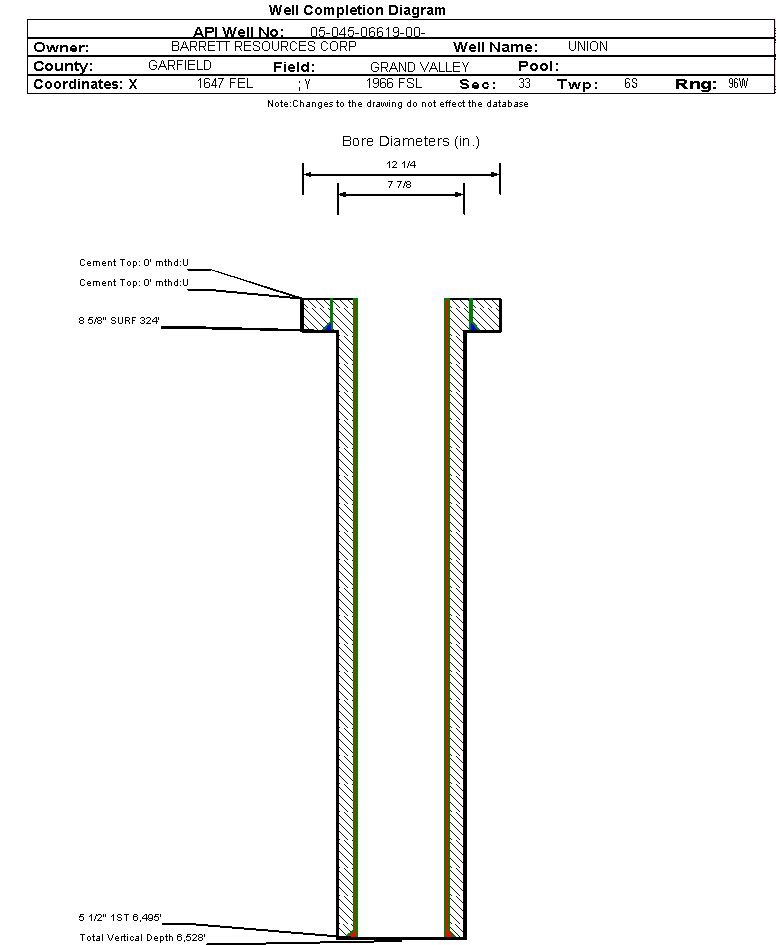

Casing:String Type: SURF, Hole Size: 12.5 in., Size: 8.625 in., Top: 0 ft., Depth: 324 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 324 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6495 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 1000, Top: 2723 ft., Bottom: 6495 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 2723 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 1900 ft., Bottom: 2723 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT UNION1971 ft.
MESAVERDE3311 ft.
CAMEO COAL5834 ft.
ROLLINS6339 ft.

Formation CMEOC                   Formation Classification:  GW                   Status:  CM - 1/29/1990                 Interval Top: 5834 ft.

 Completed Information for Formation CAMEO COAL
1st Production Date:N/AChoke Size:1,264.000 in.
Formation Name:CAMEO COALCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CMEOC.
No Perforation Data was found for formation CMEOC.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/1/1995

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)6313
GOR573909
GOR DeterminationMCFE
Average BOE per Day3.009
Average MCFE per Day17.478

 Federal Financial Assurance  i

 Tribal Well  i No
