COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06578		Well Classification: CBM Status: PR - 1/23/1993
Well Name/No:CHEVRON #MV 24-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12699
Facility Status:PRStatus Date1/23/1993
FacilityID:210820LocationID:335262
County:GARFIELD #045Location:SENW 20 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5616 ft.
Basin:PICEANCE BASIN
Planned Location:2153FNL  1960 FWLLat/Long: 39.511068 / -108.135027Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.511242 / -108.134682Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 1/23/1993             Measured TD: 6970 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 1/23/1993
Wellbore Permit
Permit #:890292 Expiration Date:8/29/1989
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CMEOC , Formation: CAMEO COAL , Order: 0 , Unit Acreage: 320, Drill Unit:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 320, Drill Unit:
Wellbore Completed
Completion Date:7/11/1989
Measured TD:6970 ft.Measured PB depth:6912 ft.
True Vertical TD:0 ft.True Vertical PB depth:

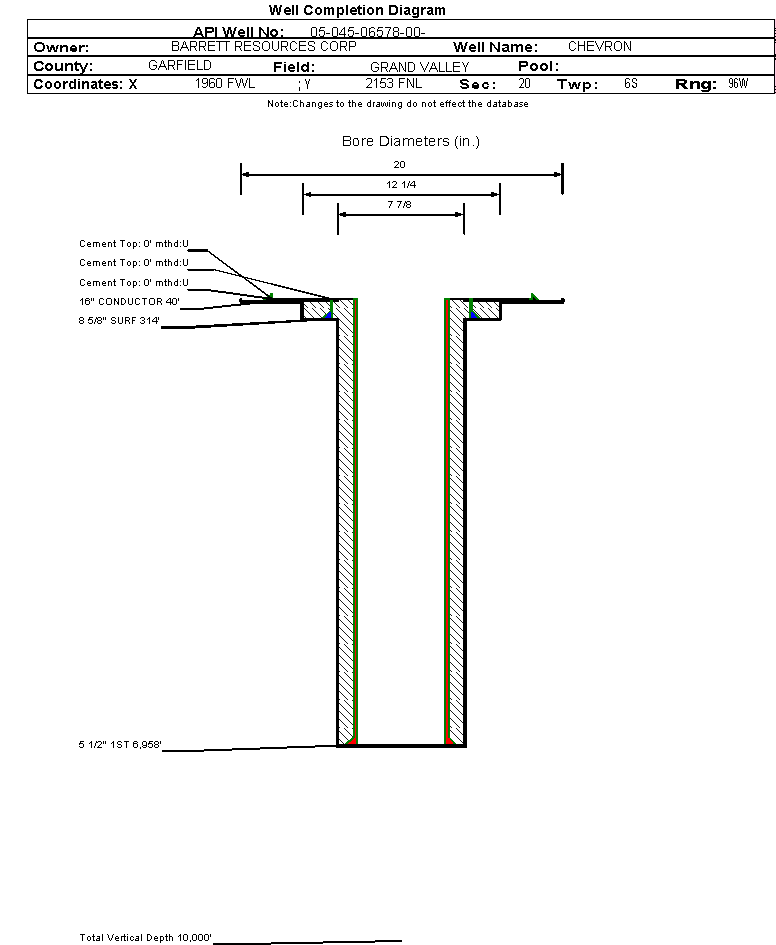

Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 314 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: , Bottom: 314 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6958 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 930, Top: 3680 ft., Bottom: 6958 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
FORT UNION2345 ft.
MESAVERDE3718 ft.
CAMEO6308 ft.
CAMEO COAL6308 ft.
ROLLINS6770 ft.

Formation CMEOC                   Formation Classification:  GW                   Status:  CM - 6/30/1989                 Interval Top: 6308 ft.

 Completed Information for Formation CAMEO COAL
1st Production Date:N/AChoke Size:732.000 in.
Formation Name:CAMEO COALCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CMEOC.
No Perforation Data was found for formation CMEOC.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 1/23/1993

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)10241
GOR853416
GOR DeterminationMCFE
Average BOE per Day4.862
Average MCFE per Day28.235

 Federal Financial Assurance  i

 Tribal Well  i No
