COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06537		Well Classification: GW Status: PR - 5/20/1998
Well Name/No:UNION #TW-1-32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12974
Facility Status:PRStatus Date5/20/1998
FacilityID:210779LocationID:323777
County:GARFIELD #045Location:SENW 32 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5700 ft.
Basin:PICEANCE BASIN
Planned Location:1750FNL  1900 FWLLat/Long: 39.482818 / -108.134987Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.482874 / -108.134973Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

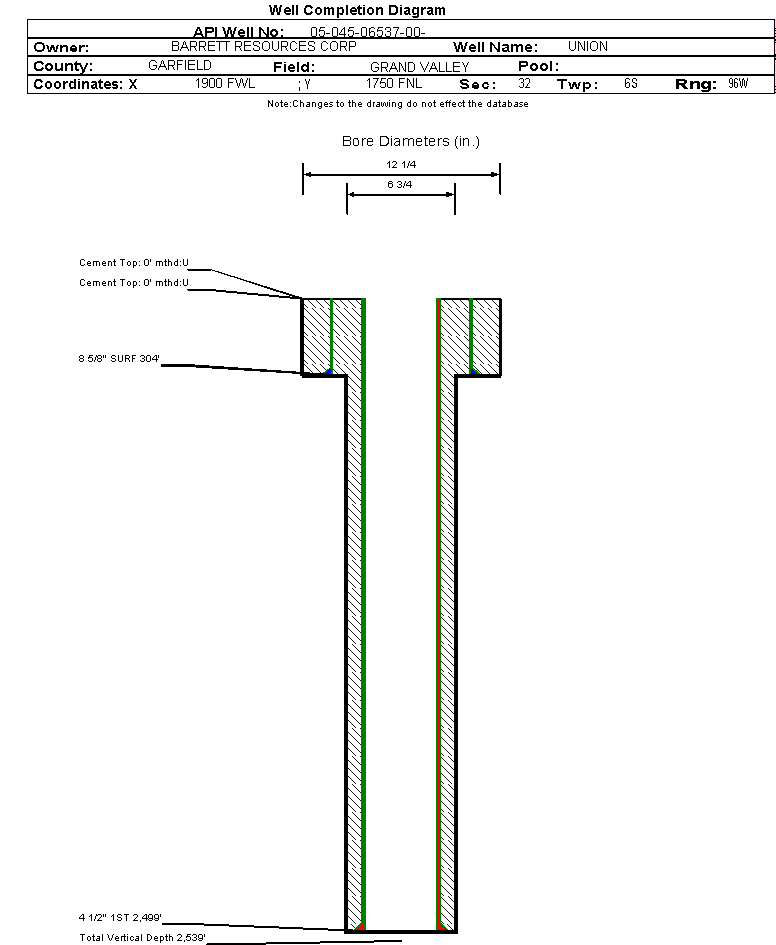

Wellbore #00             Wellbore Classification: GW             Status: PR - 5/20/1998             Measured TD: 2539 ft.    Vertical TD: 2539 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/20/1998
Wellbore Permit
Permit #:870412 Expiration Date:10/24/1987
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: 0 , Unit Acreage: 160, Drill Unit: NW4
Wellbore Completed
Completion Date:7/29/1987
Measured TD:2539 ft.Measured PB depth:2348 ft.
True Vertical TD:2539 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 304 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 175, Top: 0 ft., Bottom: 304 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 6.75 in., Size: 4.5 in., Top: 0 ft., Depth: 2499 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 375, Top: , Bottom: 2499 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.

Formation WSTC                     Formation Classification:  GW                     Status:  PR - 7/29/1987

 Completed Information for Formation WASATCH
1st Production Date:9/28/1988Choke Size:1,664.000 in.
Formation Name:WASATCHCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WSTC.
No Perforation Data was found for formation WSTC.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)19
Total Gas Produced (MCF)16831
GOR885842
GOR DeterminationMCFE
Average BOE per Day8.004
Average MCFE per Day46.431

 Federal Financial Assurance  i

 Tribal Well  i No
