COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06231		Well Classification: GW Status: PA - 11/21/2023
Well Name/No:CLOUGH #20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12917
Facility Status:PAStatus Date11/21/2023
FacilityID:210475LocationID:335068
County:GARFIELD #045Location:SWSW 15 6S94W 6
Field:RULISON - #75400Elevation:5770 ft.
Basin:PICEANCE BASIN
Planned Location:1112FSL  1090 FWLLat/Long: 39.521139 / -107.880120Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.521091 / -107.880028Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 11/21/2023             Measured TD: 7571 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 11/21/2023
Wellbore Permit
Permit #:791217 Expiration Date:7/3/1980
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 0 , Unit Acreage: 157, Drill Unit:
Wellbore Completed
Completion Date:7/18/1980
Measured TD:7571 ft.Measured PB depth:7530 ft.
True Vertical TD:0 ft.True Vertical PB depth:

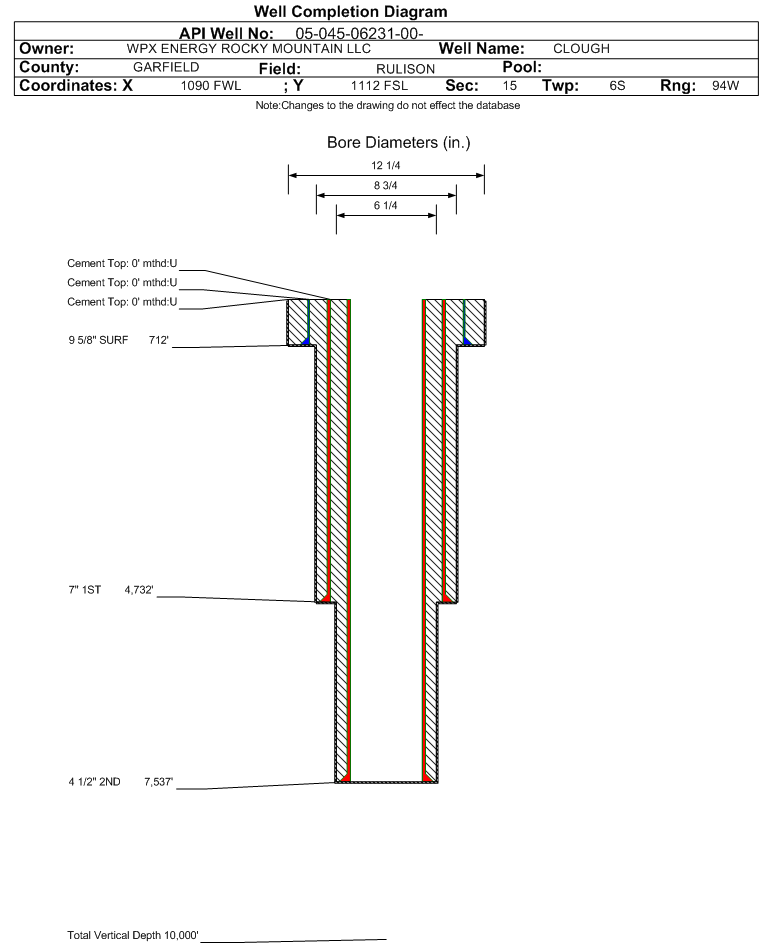

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 712 ft., Weight: 32 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: 0 ft., Bottom: 712 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 4732 ft., Weight: 20 , Citings Type: ACTUAL
Cement:Sacks: 885, Top: 0 ft., Bottom: 4732 ft., Determination Method: CALC
Casing:String Type: 2ND, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 7537 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 410, Top: 5380 ft., Bottom: 7537 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
MESAVERDE4534 ft.
CAMEO COAL7476 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  AB - 11/21/2023

 Completed Information for Formation WILLIAMS FORK
1st Production Date:4/7/1995Choke Size:0.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/21/2023
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
