COGIS - WELL SCOUT CARD

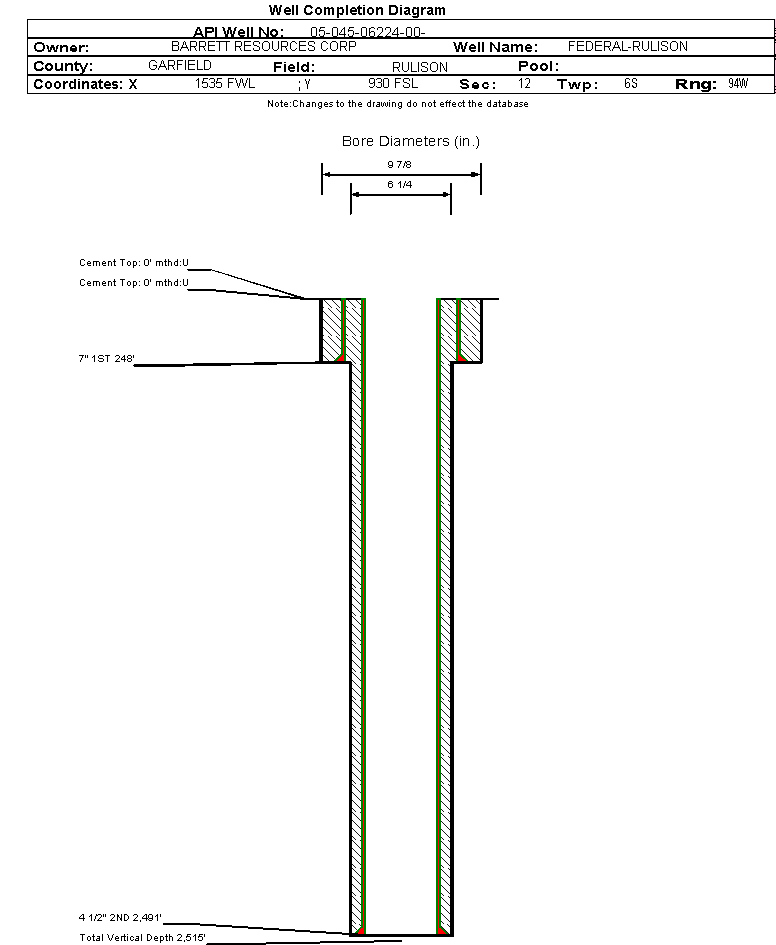

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06224		Well Classification: GW Status: PR - 1/1/2020
Well Name/No:FEDERAL-RULISON #122
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12949
Facility Status:PRStatus Date1/1/2020
FacilityID:210468LocationID:311534
County:GARFIELD #045Location:SESW 12 6S94W 6
Field:RULISON - #75400Elevation:5443 ft.
Basin:PICEANCE BASIN
Planned Location:930FSL  1535 FWLLat/Long: 39.535169 / -107.840659Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.535341 / -107.840580Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/1/2020             Measured TD: 2515 ft.    Vertical TD: 2515 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/1/2020
Wellbore Permit
Permit #:800710 Expiration Date:6/18/1980
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:FEE
Unit: Unit Number:C-27822
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: 0 , Unit Acreage: 42, Drill Unit:
Wellbore Completed
Completion Date:9/2/1980
Spud Date:7/15/1980Spud Date Is:ACTUAL
Measured TD:2515 ft.Measured PB depth:2352 ft.
True Vertical TD:2515 ft.True Vertical PB depth:
Casing:String Type: 1ST, Hole Size: 9.875 in., Size: 7 in., Top: 0 ft., Depth: 248 ft., Weight: 20 , Citings Type: ACTUAL
Cement:Sacks: 115, Top: 0 ft., Bottom: 248 ft., Determination Method: VISU
Casing:String Type: 2ND, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 2491 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 490, Top: 0 ft., Bottom: 2491 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.

Formation WSTC                     Formation Classification:  GW                     Status:  PR - 1/1/2020                  Interval Top: 1393 ft.    Interval Bottom: 2273 ft.

 Completed Information for Formation WASATCH
1st Production Date:N/AChoke Size:102.000 in.
Formation Name:WASATCHCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WSTC.
Perforation Data:
Interval Top:1393 ft.# Of Holes:20
Interval Bottom:2273 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)6
Total Gas Produced (MCF)5005
GOR834166
GOR DeterminationMCFE
Average BOE per Day2.375
Average MCFE per Day13.795

 Federal Financial Assurance  i Y

 Tribal Well  i No
