COGIS - WELL SCOUT CARD

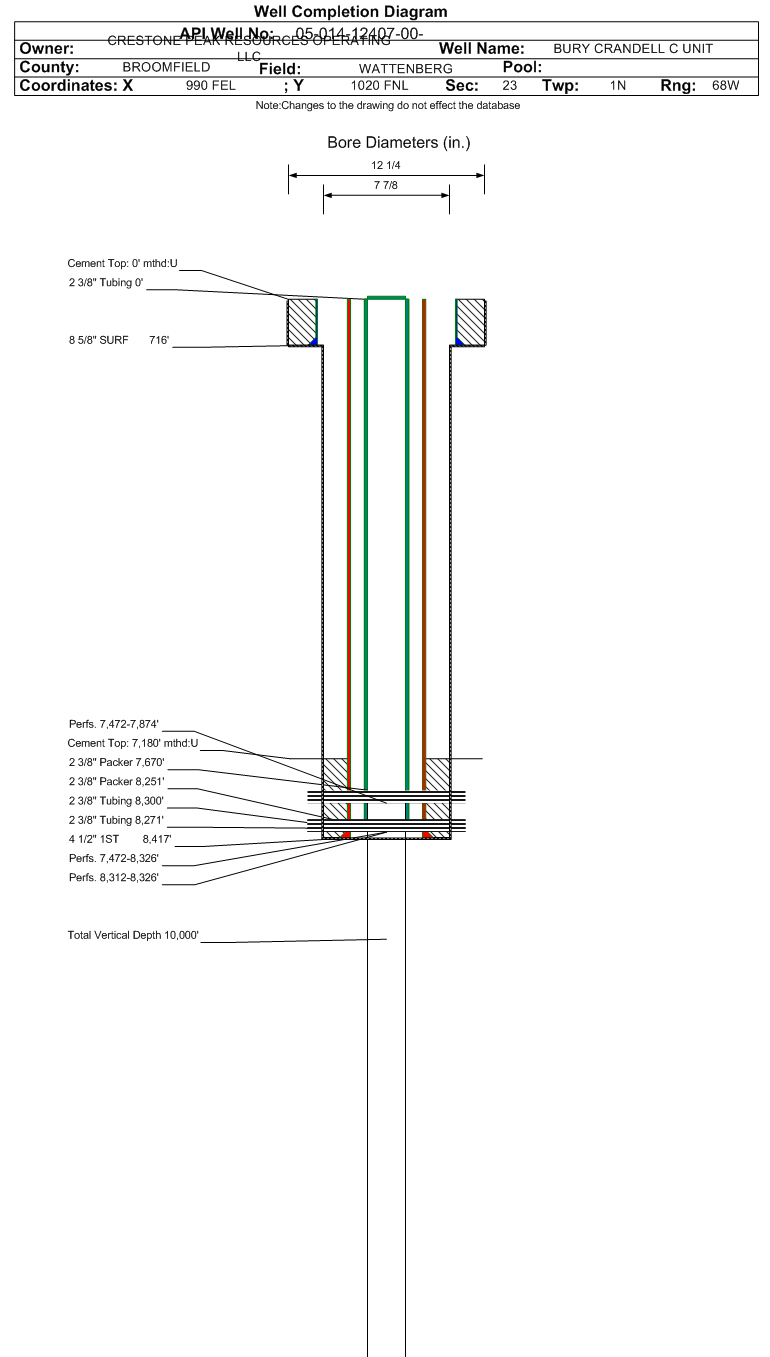

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-014-12407		Well Classification: GW Status: PA - 2/14/2024
Well Name/No:BURY CRANDELL C UNIT #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date2/14/2024
FacilityID:244612LocationID:321535
County:BROOMFIELD #014Location:NENE 23 1N68W 6
Field:WATTENBERG - #90750Elevation:5107 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1020FNL  990 FELLat/Long: 40.041348 / -104.964775Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.041358 / -104.964768Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 2/14/2024             Measured TD: 8435 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 2/14/2024
Wellbore Permit
Permit #:19850479 Expiration Date:4/17/1986
Proposed Depth/Form:8500 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407,407-66, Unit Acreage: 160, Drill Unit: NE/4
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 320, Drill Unit: E/2
Wellbore Completed
Completion Date:N/A
Spud Date:4/13/1985Spud Date Is:ACTUAL
Measured TD:8435 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:
Log Types:DIL, CDL, NGT
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 716 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 394, Top: 0 ft., Bottom: 716 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8411 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 7174 ft., Bottom: 8411 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1290 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 1290 ft., Determination Method: CBL
Casing:String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 4800 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 4050 ft., Bottom: 4800 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4766 ft.
SHANNON5261 ft.
NIOBRARA7462 ft.
TIMPAS7834 ft.
CODELL7855 ft.
J SAND8300 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 2/14/2024                 Interval Top: 8312 ft.    Interval Bottom: 8326 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/5/1993
Treatment Summary:ACID W/ 2,000 GAL 7.5% HCL ACID. FRAC'D W/ 99,500 GAL VERSAGEL, 325,000# 20/40 M, FLUSH W/ 5,430 GAL 2% KCL H2O
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 35
CASING_PRESS 420
MCF_GAS 622
TUBING_PRESS 180
Perforation Data:
Interval Top:8312 ft.# Of Holes:56
Interval Bottom:8326 ft.Hole Size:

Formation CODL                     Formation Classification:  GW                     Status:  CM - 12/20/2023                Interval Top: 7856 ft.    Interval Bottom: 7874 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7856 ft.# Of Holes:72
Interval Bottom:7874 ft.Hole Size:

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 6/1/2020                  Interval Top: 7472 ft.    Interval Bottom: 8326 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:3/12/1993Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:8300 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/15/1993Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 10
BBLS_OIL 51
CALC_GOR 1176
CASING_PRESS 500
MCF_GAS 60
TUBING_PRESS 200
Perforation Data:
Interval Top:7472 ft.# Of Holes:1160
Interval Bottom:8326 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 2/14/2024                 Interval Top: 7472 ft.    Interval Bottom: 7874 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/5/1993
Treatment Summary:CODL: 325,000# 20/40 M IN 99,500 GAL GEL. NBRR: 262,000# 20/40 M IN 76,880 GAL GEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:7472 ft.# Of Holes:1104
Interval Bottom:7874 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 12/20/2023                Interval Top: 7472 ft.    Interval Bottom: 7730 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7472 ft.# Of Holes:1032
Interval Bottom:7730 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY02/14/2024
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
