COGIS - WELL SCOUT CARD

API number must be numeric.
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-013-06560
Well Classification: OW Status: PA - 6/30/2021
Well Name/No:YOUNG MC #23-11D
(Click Well Name for Production Data)
Click Here for Transporter Gatherer Info
Operator:EXTRACTION OIL & GAS INC - 10459
(Click Operator Name for Company Detail Report)
Federal Or State Lease #:
Facility Status:PAStatus Date6/30/2021
FacilityID:291849LocationID:335890
Municipality/County:ERIE / BOULDER #013Location:NWSW 23 1N69W 6
Field:WATTENBERG - #90750Elevation:5104 ft.
Planned Location:2113FSL  284 FWLLat/Long: 40.035000 / -105.092240Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.034999 / -105.092246Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

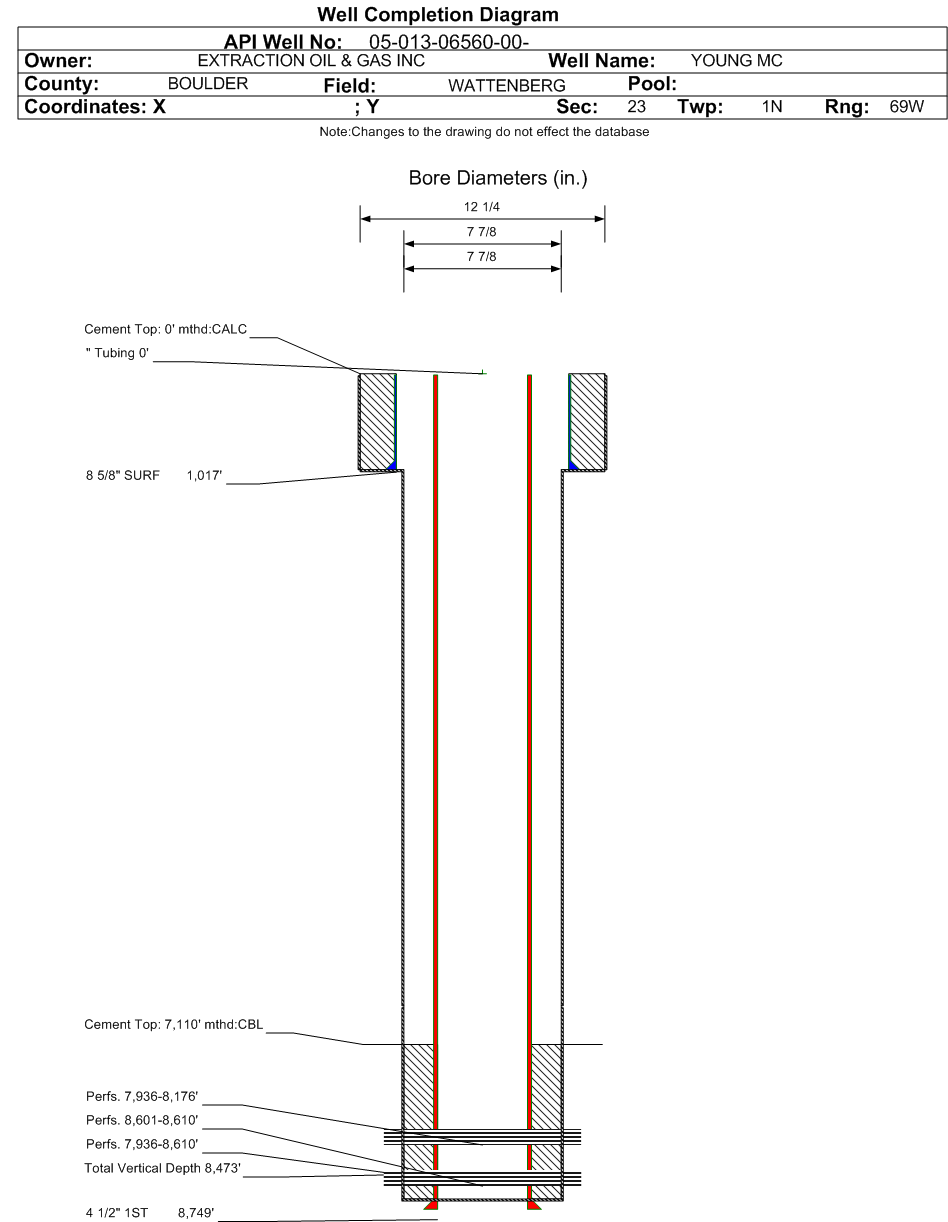

Wellbore #00             Wellbore Classification: OW             Status: PA - 6/30/2021             Measured TD: 8760 ft.    Vertical TD: 8473 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 6/30/2021
Wellbore PermitDIRECTIONAL
Permit #:20091698 Expiration Date:5/27/2010
Proposed Top PZ Location:Sec:23 Twp: 1N 69W Footage: 2045 FSL  1900 FWL
Bottom Hole Location:Sec:23 Twp: 1N 69W Footage: 2050 FSL  1916 FWL
Proposed Depth/Form:8460 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: E/2SW4
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 320, Drill Unit: S/2
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407-87 , Unit Acreage: 80, Drill Unit: E/2SW4
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 680 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 200, Top: 0 ft., Bottom: 680 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8650 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 300, Top: , Bottom: 8650 ft.

Wellbore Completed
Completion Date:9/29/2009
Spud Date:9/21/2009Spud Date Is:ACTUAL
Measured TD:8760 ft.Measured PB depth:8709 ft.
True Vertical TD:8473 ft.True Vertical PB depth:8422 ft.
Top PZ Location:Sec:23 Twp: 1N 69WFootage: 2045 FSL  1900 FWL
Bottom Hole Location:Sec:23 Twp: 1N 69WFootage: 2050 FSL  1916 FWL
Log Types:CBL/GRL/CCL, SDL/DSNL/ACL/TRL, CSL/NGRL.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 13 ft., Depth: 1017 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 374, Top: 0 ft., Bottom: 1017 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 13 ft., Depth: 8749 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 280, Top: 7110 ft., Bottom: 8749 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6700 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 690, Top: 1300 ft., Bottom: 6700 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7751 ft.
FORT HAYS8140 ft.
CODELL8159 ft.
GREENHORN8274 ft.
D SAND8526 ft.
MOWRY8573 ft.
J SAND8587 ft.

Formation JSND                     Formation Classification:  OW                     Status:  AB - 6/30/2021                 Interval Top: 8601 ft.

 Completed Information for Formation J SAND
1st Production Date:1/12/2010Choke Size:
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/10/2009
Treatment Summary:Frac'd the J-Sand w/ 178458 gals of Silverstim and Slick Water with 334,000#'s of Ottawa sand. The J-Sand is producing through a Composite Flow Through Plug.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
No Perforation Data was found for formation JSND.

Formation JNBCD                   Formation Classification:  OW                   Status:  CM - 1/12/2010                 Interval Top: 7936 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:1/12/2010Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/10/2009
Treatment Summary:Frac'd the J-Sand w/ 178458 gals of Silverstim and Slick Water with 334,000#'s of Ottawa sand. The J-Sand is producing through a Composite Flow Through Plug. Frac'd the Niobrara-Codell w/ 307692 gals of Silverstim and Slick Water with 521,000#'s of Ottawa sand. The Codell is producing through a Composite Flow Through Plug.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/12/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 114
BBLS_OIL 128
BTU_GAS 1185
CALC_BBLS_H2O 114
CALC_BBLS_OIL 128
CALC_GOR 4281
CALC_MCF_GAS 548
CASING_PRESS 1050
GRAVITY_OIL 51
MCF_GAS 548
No Perforation Data was found for formation JNBCD.

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 6/30/2021                 Interval Top: 7936 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:1/12/2010Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/10/2009
Treatment Summary:Frac'd the Niobrara-Codell w/ 307692 gals of Silverstim and Slick Water with 521,000#'s of Ottawa sand. The Codell is producing through a Composite Flow Through Plug. Commingle the Niobrara and Codell.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
No Perforation Data was found for formation NB-CD.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/30/2021
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
March 2024 - February 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
