COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-009-06532		Well Classification: ERIW Status: TA - 6/22/2023
Well Name/No:S E CAMPO UNIT #304W
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:MURFIN DRILLING COMPANY INC - 61650
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:8100
Facility Status:TAStatus Date6/22/2023
FacilityID:206116LocationID:321134
County:BACA #009Location:SESE 35 34S46W 6
Field:CAMPO - #9850Elevation:4193 ft.
Basin:HUGOTON EMBAYMENT
Planned Location:670FSL  700 FELLat/Long: 37.034565 / -102.563369Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 37.034576 / -102.563420Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: ERIW             Status: TA - 6/22/2023             Measured TD: 4253 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: ERIW        TA - 6/22/2023
Wellbore Permit
Permit #:19940769 Expiration Date:12/14/1994
Proposed Depth/Form:4250 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: LNSNG , Formation: LANSING , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:8/18/1994
Spud Date:7/13/1994Spud Date Is:ACTUAL
Measured TD:4253 ft.Measured PB depth:4213 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:SPECTRAL DENSITY, MICROLOG, DUAL INDUCTION

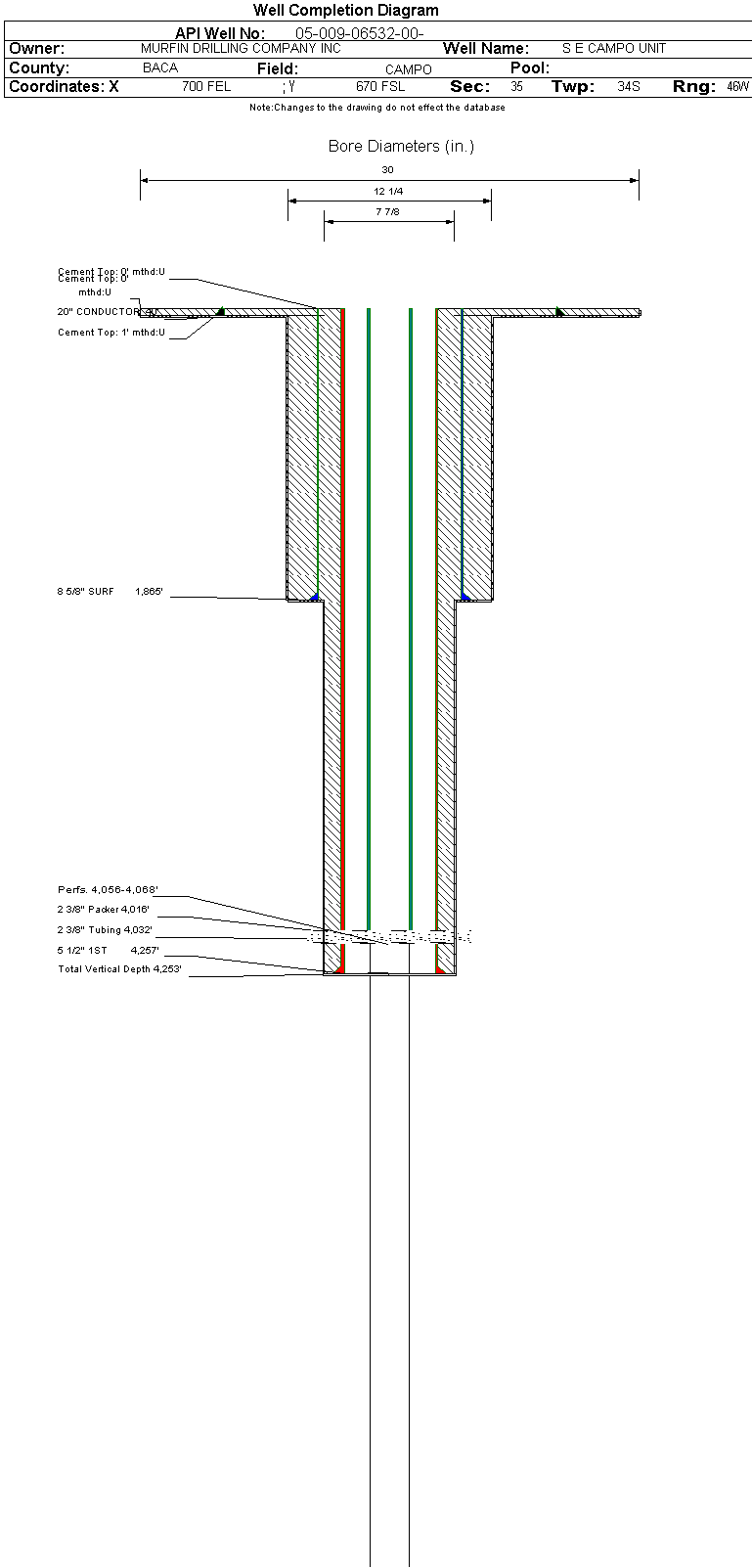

Casing:String Type: CONDUCTOR, Hole Size: , Size: , Top: , Depth: 40 ft., Weight: UNK , Citings Type: ACTUAL
Cement:Sacks: 5, Top: 0 ft., Bottom: 40 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1865 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 870, Top: 0 ft., Bottom: 1865 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 4257 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 465, Top: 3040 ft., Bottom: 4257 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: 0 ft., Depth: 3040 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 575, Top: 0 ft., Bottom: 3040 ft., Determination Method: VISU
FormationInterval TopLog BottomCoredDSTs
WOLFCAMP2622 ft.
NEVA2982 ft.
TOPEKA3285 ft.
LANSING3482 ft.
DES MOINES4218 ft.

Formation LNSNG                   Formation Classification:  ERIW                   Status:  TA - 6/22/2023                 Interval Top: 4056 ft.    Interval Bottom: 4068 ft.

 Completed Information for Formation LANSING
1st Production Date:N/AChoke Size:
Formation Name:LANSINGCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/18/1994
Treatment Summary:SEE SCANNED DOC #636604
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation LNSNG.
Perforation Data:
Interval Top:4056 ft.# Of Holes:48
Interval Bottom:4068 ft.Hole Size:0.5 in.
Primary Well Designation:
Reported Plugged      i
            All DesignationsDate
Reported PluggedY09/10/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2028
Inactive ExceptionN
Noticed InactiveYNoticed Date
06/05/2023
Defined Inactive (TA)YLast Use
12/31/2018
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i Y

 Tribal Well  i No
