COGIS - WELL SCOUT CARD

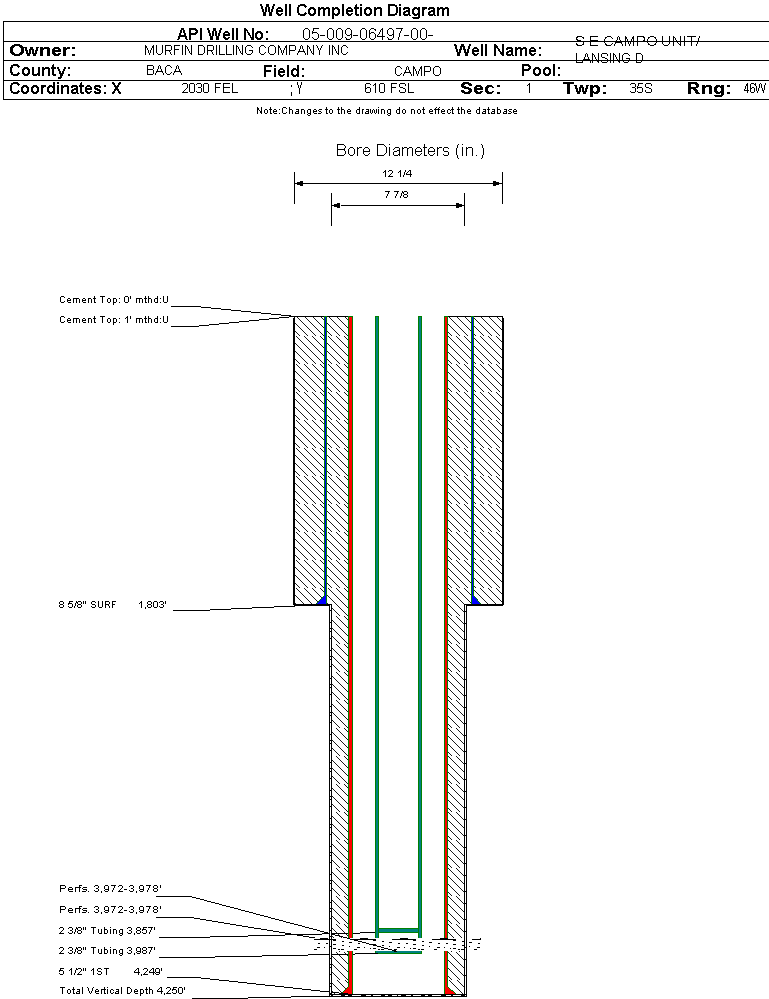

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-009-06497		Well Classification: ERIW Status: TA - 5/1/2023
Well Name/No:S E CAMPO UNIT/LANSING D #1202W/302W
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:MURFIN DRILLING COMPANY INC - 61650
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:8100
Facility Status:TAStatus Date5/1/2023
FacilityID:206081LocationID:321115
County:BACA #009Location:SWSE 1 35S46W 6
Field:CAMPO - #9850Elevation:4144 ft.
Basin:HUGOTON EMBAYMENT
Planned Location:610FSL  2030 FELLat/Long: 37.019835 / -102.549868Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 37.019928 / -102.549872Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: ERIW             Status: TA - 5/1/2023             Measured TD: 4250 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: ERIW        TA - 5/1/2023
Wellbore Permit
Permit #:19910733 Expiration Date:12/24/1991
Proposed Depth/Form:4250 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: LNSNG , Formation: LANSING , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:4/26/1992
Spud Date:12/17/1991Spud Date Is:ACTUAL
Measured TD:4250 ft.Measured PB depth:3965 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DIL, CNL, MICROLOG, SONIC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1803 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 750, Top: 1 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 4249 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 975, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
GLORIETA1355 ft.
WOLFCAMP2536 ft.
NEVA2888 ft.
TOPEKA3188 ft.
LANSING3376 ft.
DES MOINES4106 ft.

Formation LNSNG                   Formation Classification:  GW                   Status:  TA - 5/1/2023                  Interval Top: 3972 ft.    Interval Bottom: 3978 ft.

 Completed Information for Formation LANSING
1st Production Date:3/4/1992Choke Size:0.000 in.
Formation Name:LANSINGCommingled:
Production Method:INJECTION
Open Hole Completion:
Formation Treatment
Treatment Date:4/26/1992
Treatment Summary:SEE SCANNED DOC #638304
Tubing Size:2.375 in.Tubing Setting Depth:3987 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/4/1992Test Method:INJECTION
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 6
BBLS_OIL 68
MCF_GAS 16
Perforation Data:
Interval Top:3972 ft.# Of Holes:4
Interval Bottom:3978 ft.Hole Size:0.5 in.

Formation LSNGD                   Formation Classification:  GW                   Status:  CM - 5/1/1999                  Interval Top: 3972 ft.    Interval Bottom: 3978 ft.

 Completed Information for Formation LANSING D
1st Production Date:N/AChoke Size:
Formation Name:LANSING DCommingled:
Production Method:INJECTION
Open Hole Completion:
Formation Treatment
Treatment Date:4/26/1992
Treatment Summary:SEE SCANNED DOC #638304
Tubing Size:2.375 in.Tubing Setting Depth:3857 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation LSNGD.
Perforation Data:
Interval Top:3972 ft.# Of Holes:
Interval Bottom:3978 ft.Hole Size:0.4 in.
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2028
Inactive ExceptionN
Noticed InactiveYNoticed Date
06/06/2023
Defined Inactive (TA )YDefined Inactive
12/31/2018
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i Y

 Tribal Well  i No
