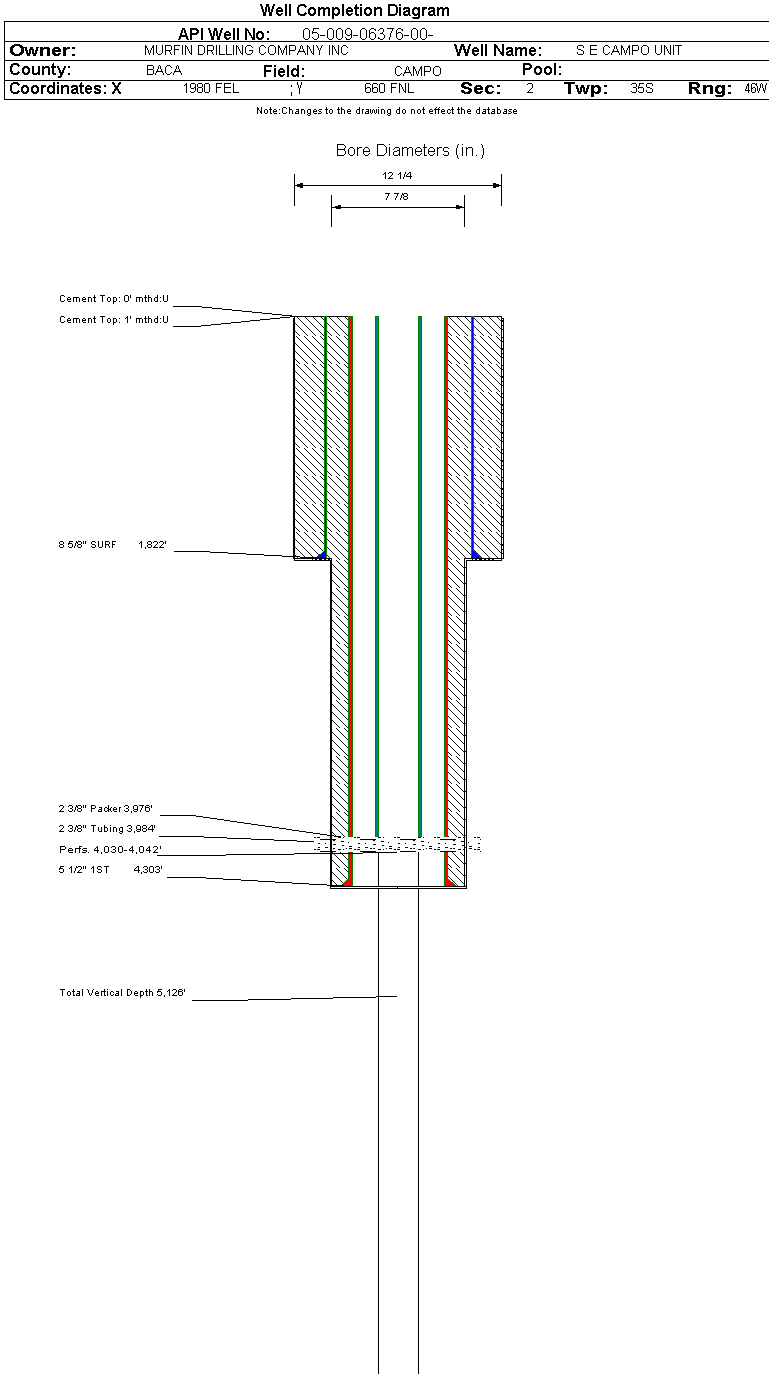

Wellbore #00 Wellbore Classification: OW Status: TA - 7/6/2023 Measured TD: 5126 ft. Vertical TD: 0 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW TA - 7/6/2023 | | Wellbore Permit | VERTICAL | | Permit #: | | Expiration Date: | 1/26/2026 | | Proposed Depth/Form: | 5125 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: LNSNG , Formation: LANSING , Order: 0 , Unit Acreage: 40, Drill Unit: | | Formation And Spacing: | Code: NEVA , Formation: NEVA , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 21 in., Top: 0 ft., Depth: 20 ft., Weight: 45 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 20 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1822 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 900, Top: 0 ft., Bottom: 1822 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 4303 ft., Weight: 14/15.5 , Citings Type: PLANNED | | Cement: | Sacks: 175, Top: 3290 ft., Bottom: 4303 ft. | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 3200 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 500, Top: 1600 ft., Bottom: 3200 ft. |
| | |
| Wellbore Completed | | Completion Date: | 8/5/1983 | | Spud Date: | 6/10/1983 | Spud Date Is: | ACTUAL | | Measured TD: | 5126 ft. | Measured PB depth: | 4073 ft. | | True Vertical TD: | 0 ft. | True Vertical PB depth: | | | Log Types: | DUAL INDUCTION, COMP. NEUTRON DENSITY | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 20 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 3, Top: 0 ft., Bottom: 20 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1822 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 900, Top: 0 ft., Bottom: 1822 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 4303 ft., Weight: 14 , Citings Type: ACTUAL | | Cement: | Sacks: 175, Top: 3290 ft., Bottom: 4303 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | NEVA | 2979 ft. | | | | | LANSING | 3466 ft. | | | | | DES MOINES | 4196 ft. | | | | | MORROW | 4640 ft. | | | | | MISSISSIPPIAN | 5059 ft. | | | |
Formation LNSNG Formation Classification: ERIW Status: TA - 7/6/2023 Interval Top: 4030 ft. Interval Bottom: 4042 ft.| Completed Information for Formation LANSING | | 1st Production Date: | 8/2/1983 | Choke Size: | | | Formation Name: | LANSING | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/5/1983 | | Treatment Summary: | SEE SCANNED DOC #638683 |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 3967 ft. | | Tubing Packer Depth: | 3967 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation LNSNG. |
| | Perforation Data: | | Interval Top: | 4030 ft. | # Of Holes: | 48 | | Interval Bottom: | 4042 ft. | Hole Size: | 0.5 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 04/02/2024 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2028 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (TA ) | Y | Defined Inactive
12/31/2018 |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | Y |
|
|
