Wellbore #00 Wellbore Classification: OW Status: PR - 10/1/2024 Measured TD: 17867 ft. Vertical TD: 7938 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 10/1/2024 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 10/26/2020 | | Proposed Top PZ Location: | Sec:28 Twp: 3S 65W | Footage: 1856 FNL 491 FEL | | Bottom Hole Location: | Sec:29 Twp: 3S 65W | Footage: 1923 FSL 337 FWL | | Proposed Depth/Form: | 17896 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-930 , Unit Acreage: 1280, Drill Unit: Sec 28 & 29 All | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 65 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 100 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2139 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 690, Top: 0 ft., Bottom: 2139 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17896 ft., Weight: 23 , Citings Type: PLANNED | | Cement: | Sacks: 2210, Top: 2139 ft., Bottom: 17896 ft. |
| | |

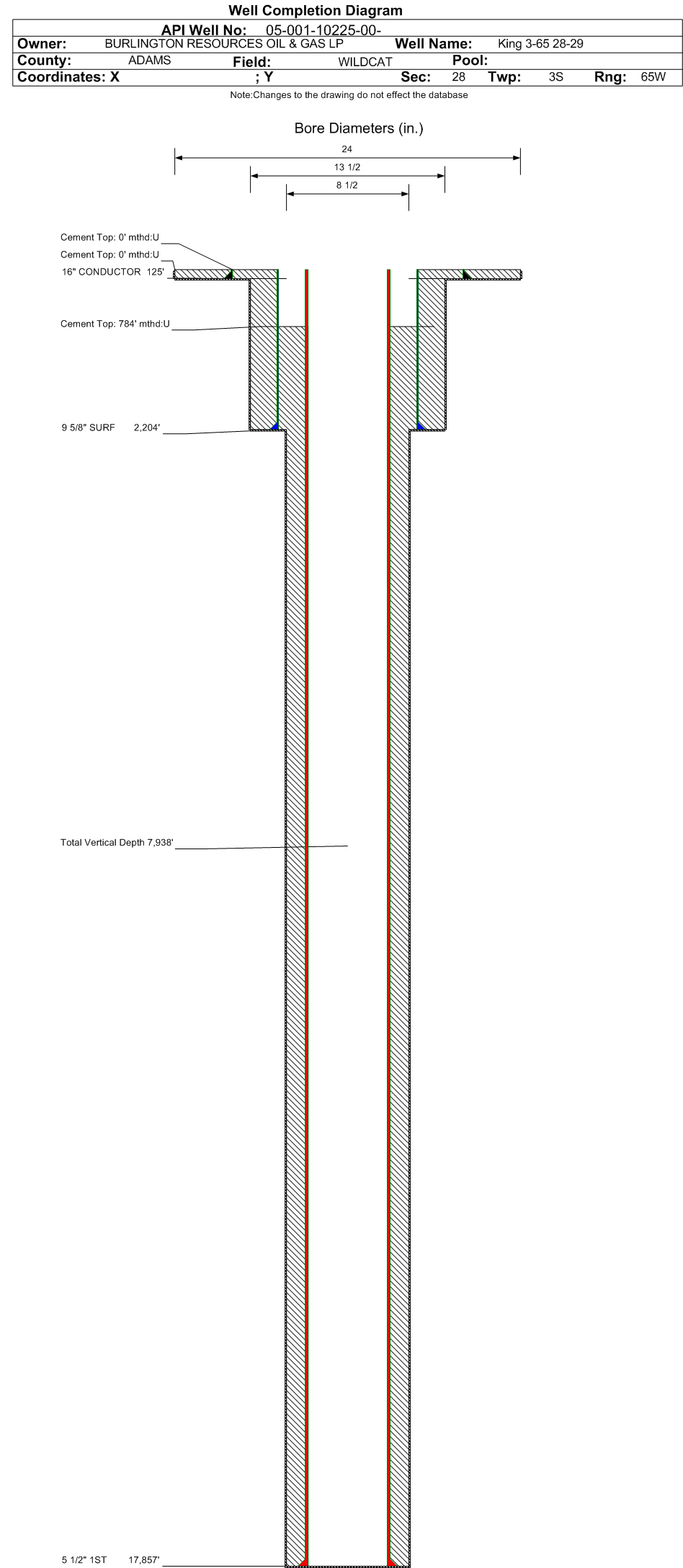

| Wellbore Completed | | Completion Date: | 6/4/2019 | | Spud Date: | 5/20/2019 | Spud Date Is: | ACTUAL | | Measured TD: | 17867 ft. | Measured PB depth: | 17768 ft. | | True Vertical TD: | 7938 ft. | True Vertical PB depth: | 7937 ft. | | Top PZ Location: | Sec:28 Twp: 3S 65W | Footage: 1856 FNL 491 FEL | | Bottom Hole Location: | Sec:29 Twp: 3S 65W | Footage: 1923 FSL 337 FWL | | Log Types: | MWD/LWD; Mud Log; (Resistivity in API 001-10003) | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 125 ft., Weight: 65 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 125 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2204 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 755, Top: 0 ft., Bottom: 2214 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17857 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 2387, Top: 784 ft., Bottom: 17867 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FOX HILLS | 1697 ft. | | | | | PIERRE | 1943 ft. | | | | | SUSSEX | 7235 ft. | | | | | SHANNON | 7584 ft. | | | | | SHARON SPRINGS | 7846 ft. | | | | | NIOBRARA | 7965 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 10/1/2024 Interval Top: 8085 ft. Interval Bottom: 17662 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 11/12/2020 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 9/27/2020 | Treatment End Date: | 10/14/2020 | | Treatment Summary: | 317169 bbls of water, 159 bbls of additives (FRP-22G, FRS-1CS, Bardac 2250M, Dixichlor Max, Tolcide TP5, SAFE-BFH-2, XLS-3Z, BHL-68, ACI-97, ASF-67, PGA-4045) and 1787 bbl HCL in a 49 stage frac with 1,640 lbs of PGA-4045, 18892 lbs of DFR-1X, 5825240 lbs of silica quartz proppant
| | Total fluid used in treatment (bbls): | 319115 | Max pressure during treatment (psi): | 9016 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 49 | | Total acid used in treatment (bbls): | 1787 | Min frac gradient (psi/ft): | 0.81 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 11423 | | Fresh water used in treatment (bbls): | 317328 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 5845772 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7940 ft. | | Tubing Packer Depth: | 7950 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/10/2020 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 609 | | BBLS_OIL | 805 | | BTU_GAS | 1604 | | CALC_BBLS_H2O | 609 | | CALC_BBLS_OIL | 805 | | CALC_GOR | 1109 | | CALC_MCF_GAS | 893 | | GRAVITY_OIL | 42 | | MCF_GAS | 893 | | TUBING_PRESS | 1400 |
| | Perforation Data: | | Interval Top: | 8085 ft. | # Of Holes: | 1209 | | Interval Bottom: | 17662 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 7911 |
| Total Gas Produced (MCF) | 9716 |
| GOR | 1228 |
| GOR Determination | BOE |
| Average BOE per Day | 26.241 |
| Average MCFE per Day | 152.200 |
| Federal Financial Assurance | i | |
|
|
