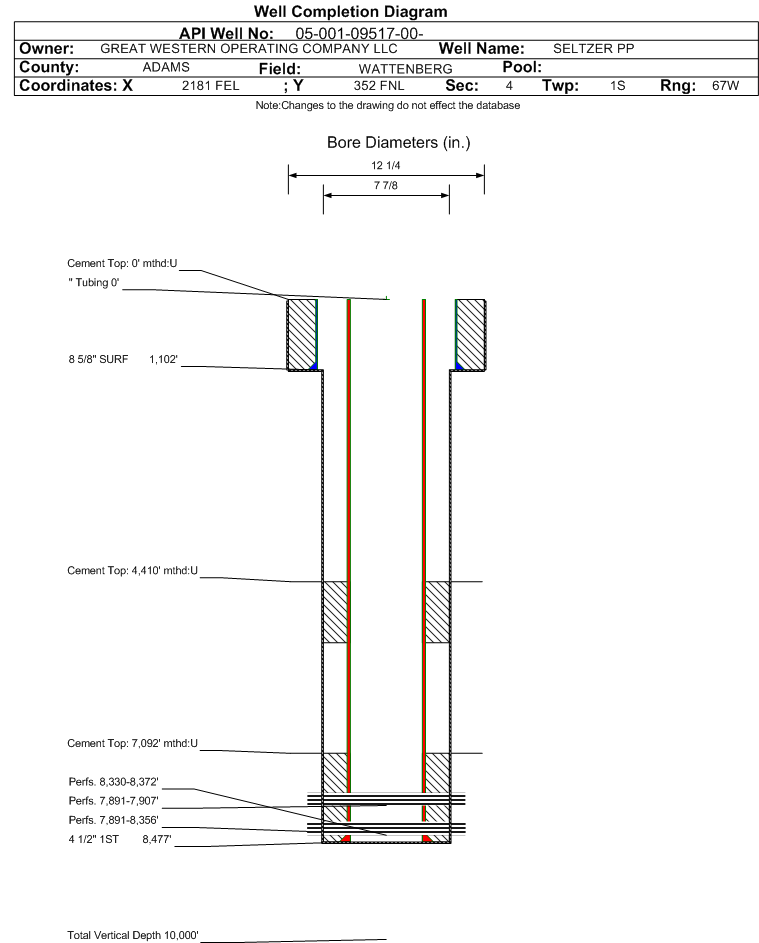

Wellbore #00 Wellbore Classification: GW Status: PA - 8/16/2018 Measured TD: 8500 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 8/16/2018 | | Wellbore Permit | DRIFTED | | Permit #: | 20052358 | Expiration Date: | 7/26/2006 | | Proposed Depth/Form: | 7907 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: NE4 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 160, Drill Unit: NE/4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1102 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 715, Top: 0 ft., Bottom: 1102 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8477 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 230, Top: 7092 ft., Bottom: 8477 ft. | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5366 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 210, Top: 4410 ft., Bottom: 5366 ft. |
| | |
| Wellbore Completed | | Completion Date: | 10/2/2004 | | Spud Date: | 8/30/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 8500 ft. | Measured PB depth: | 8463 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DIL, CDL/CNL, CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1102 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 715, Top: 0 ft., Bottom: 1102 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8477 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 230, Top: 7092 ft., Bottom: 8477 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5366 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 210, Top: 4410 ft., Bottom: 5366 ft., Determination Method: CBL | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5366 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 210, Top: 4410 ft., Bottom: 5366 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4940 ft. | | N | N | | NIOBRARA | 7435 ft. | | N | N | | FORT HAYS | 7865 ft. | | N | N | | CODELL | 7890 ft. | | N | N | | J SAND | 8329 ft. | | N | N |
Formation JSND Formation Classification: GW Status: AB - 8/16/2018 Interval Top: 8330 ft. Interval Bottom: 8372 ft.| Completed Information for Formation J SAND | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | J SAND | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/31/2005 | | Treatment Summary: | J-SAND UNDER RBP @ 8200' TESTED CASING AND RBP TO 4000# FOR 15 MIN. HELD |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 8 | | BBLS_OIL | 0 | | BTU_GAS | 1175 | | CALC_BBLS_H2O | 8 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 119 | | CASING_PRESS | 530 | | MCF_GAS | 119 | | TUBING_PRESS | 380 |
| | Perforation Data: | | Interval Top: | 8330 ft. | # Of Holes: | 80 | | Interval Bottom: | 8372 ft. | Hole Size: | |
|
Formation CODL Formation Classification: GW Status: AB - 8/16/2018 Interval Top: 7891 ft. Interval Bottom: 7907 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 10/7/2005 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/5/2005 | | Treatment Summary: | FRAC'D CODELL W/128,016 GALS OF SILVERSTIM W/28# GEL LOADING AND 270,240# OF 20/40 OTTAWA SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 10 | | BBLS_OIL | 37 | | CALC_BBLS_H2O | 10 | | CALC_BBLS_OIL | 37 | | CALC_GOR | 3703 | | CALC_MCF_GAS | 137 | | CASING_PRESS | 700 | | MCF_GAS | 137 | | TUBING_PRESS | 250 |
| | Perforation Data: | | Interval Top: | 7891 ft. | # Of Holes: | 64 | | Interval Bottom: | 7907 ft. | Hole Size: | 0.42 in. |
|
Formation J-CDL Formation Classification: GW Status: CM - 5/23/2006 Interval Top: 7891 ft. Interval Bottom: 8356 ft.| Completed Information for Formation J-CODELL | | 1st Production Date: | N/A | Choke Size: | 1.000 in. | | Formation Name: | J-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/2/2004 | | Treatment Summary: | COMMINGLE CODELL AND J-SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/23/2006 | Test Method: | FLOWING | | Hours Tested: | 2 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 5 | | BBLS_OIL | 5 | | BTU_GAS | 1 | | CALC_GOR | 11200 | | CASING_PRESS | 440 | | MCF_GAS | 56 | | TUBING_PRESS | 320 |
| | Perforation Data: | | Interval Top: | 7891 ft. | # Of Holes: | 136 | | Interval Bottom: | 8356 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 08/16/2018 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
