COGIS - WELL SCOUT CARD

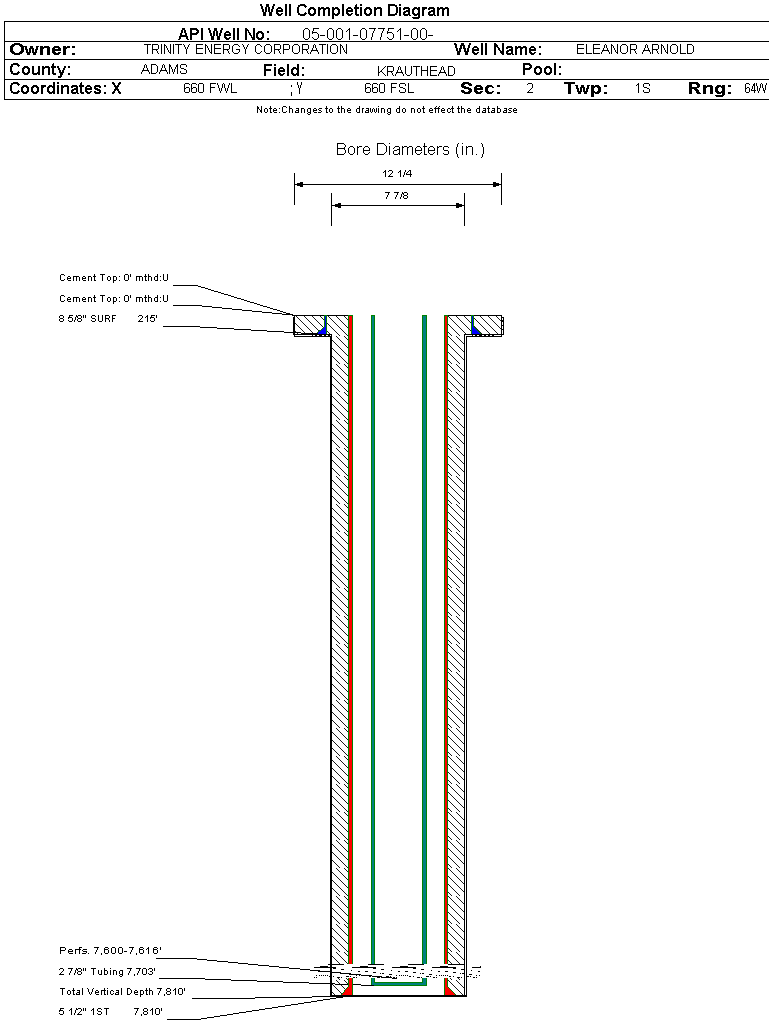

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-001-07751		Well Classification: GW Status: PA - 3/15/2022
Well Name/No:ELEANOR ARNOLD #1 (OWP)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PAINTED PEGASUS PETROLEUM LLC - 10711
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date3/15/2022
FacilityID:202346LocationID:320042
County:ADAMS #001Location:SWSW 2 1S64W 6
Field:KRAUTHEAD - #47550Elevation:5096 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FSL  660 FWLLat/Long: 39.986841 / -104.525550Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.986960 / -104.525484Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 3/15/2022             Measured TD: 7810 ft.    Vertical TD: 7810 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 3/15/2022
Wellbore Permit
Permit #:20020896 Expiration Date:6/3/2003
Proposed Depth/Form:7810 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: DSND , Formation: D SAND , Order: 0 , Unit Acreage: 0, Drill Unit:
Formation And Spacing:Code: J-2 , Formation: J-2 SAND , Order: , Unit Acreage: 40, Drill Unit: SWSW
Wellbore Completed
Completion Date:1/27/1981
Spud Date:1/6/1981Spud Date Is:ACTUAL
Measured TD:7810 ft.Measured PB depth:
True Vertical TD:7810 ft.True Vertical PB depth:
Log Types: SP-IES, FDC-GR CALIPER LOG
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 215 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: 215 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7810 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 6794 ft., Bottom: 7810 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE1011 ft.
NIOBRARA6821 ft.
MUDDY D7608 ft.
MUDDY J7661 ft.

Formation DSND                     Formation Classification:  GW                     Status:  AB - 3/15/2022                 Interval Top: 7600 ft.    Interval Bottom: 7616 ft.

 Completed Information for Formation D SAND
1st Production Date:1/31/1981Choke Size:0.406 in.
Formation Name:D SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:1/27/1981
Treatment Summary:SEE SCANNED DOCUMENT #00319111
Tubing Size:2.875 in.Tubing Setting Depth:7703 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/28/1982Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 30
CALC_BBLS_OIL 30
CALC_GOR 26666
CALC_MCF_GAS 800
GRAVITY_OIL 55.3
MCF_GAS 800
Perforation Data:
Interval Top:7600 ft.# Of Holes:64
Interval Bottom:7616 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY03/15/2022
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
July 2024 - June 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
