COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-001-06133		Well Classification: ERIW Status: SI - 9/1/2021
Well Name/No:UPRR-EHN #12-17 (OWP)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PAINTED PEGASUS PETROLEUM LLC - 10711
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date9/1/2021
FacilityID:200730LocationID:319650
County:ADAMS #001Location:SWNW 17 1S60W 6
Field:NILE - #57400Elevation:4832 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FNL  660 FWLLat/Long: 39.965963 / -104.129908Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.966110 / -104.129920Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

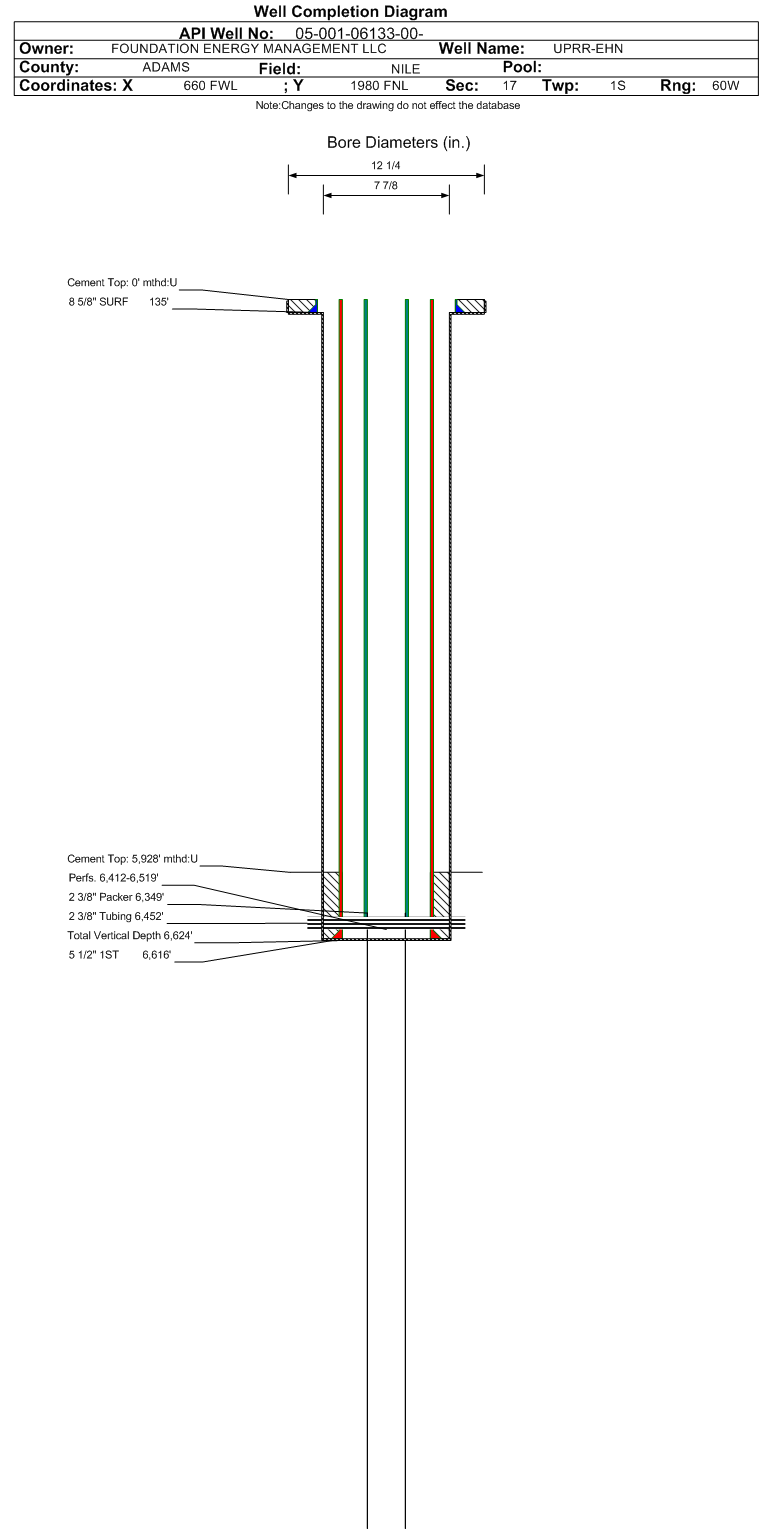

Wellbore #00             Wellbore Classification: DSPW             Status: SI - 9/1/2021             Measured TD: 6624 ft.    Vertical TD: 6624 ft.

 Wellbore Data for Original WellboreWellbore Classification: DSPW        SI - 9/1/2021
Wellbore Permit
Permit #:19700089 Expiration Date:3/6/1971
Proposed Depth/Form:6600 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: DSND , Formation: D SAND , Order: 0 , Unit Acreage: 80, Drill Unit: W2NW
Wellbore Completed
Completion Date:4/12/1988
Spud Date:3/5/1970Spud Date Is:ACTUAL
Measured TD:6624 ft.Measured PB depth:6584 ft.
True Vertical TD:6624 ft.True Vertical PB depth:
Log Types: TEMPERATURE SURVEY
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 135 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 0 ft., Bottom: 135 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6616 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 140, Top: 5928 ft., Bottom: 6616 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
D SAND6410 ft.
J SAND6475 ft.

Formation DSND                     Formation Classification:  GW                     Status:  SI - 9/1/2021                  Interval Top: 6412 ft.    Interval Bottom: 6519 ft.

 Completed Information for Formation D SAND
1st Production Date:4/29/1970Choke Size:0.000 in.
Formation Name:D SANDCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:4/12/1988
Treatment Summary:ANNULUS FILLED WITH INHIBITED WATER.
Tubing Size:2.375 in.Tubing Setting Depth:6452 ft.
Tubing Packer Depth:6369 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation DSND.
Perforation Data:
Interval Top:6412 ft.# Of Holes:
Interval Bottom:6519 ft.Hole Size:
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
08/31/2021
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
