Wellbore #00 Wellbore Classification: OW Status: TA - 9/1/2025 Measured TD: 12495 ft. Vertical TD: 7428 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW TA - 9/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 10/10/2021 | | Proposed Top PZ Location: | Sec:36 Twp: 8N 66W | Footage: 600 FNL 600 FWL | | Bottom Hole Location: | Sec:36 Twp: 8N 66W | Footage: 600 FSL 600 FWL | | Proposed Depth/Form: | 12374 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | STATE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 65 , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 479, Top: 0 ft., Bottom: 1500 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 12374 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 2012, Top: , Bottom: 12374 ft. |
| | |

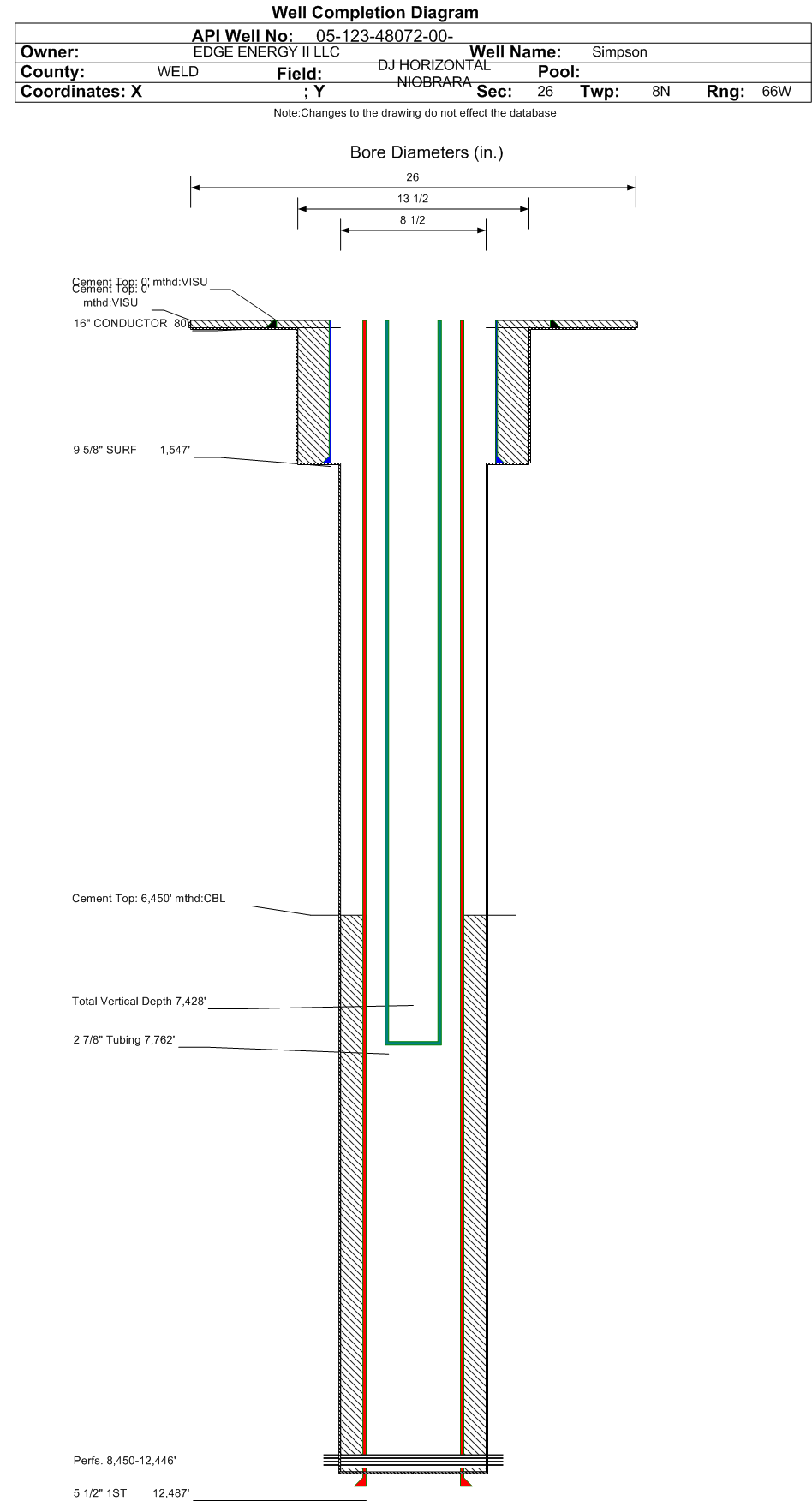

| Wellbore Completed | | Completion Date: | 11/2/2019 | | Spud Date: | 10/27/2019 | Spud Date Is: | ACTUAL | | Measured TD: | 12495 ft. | Measured PB depth: | 12483 ft. | | True Vertical TD: | 7428 ft. | True Vertical PB depth: | 7428 ft. | | Top PZ Location: | Sec:36 Twp: 8N 66W | Footage: 626 FNL 702 FWL | | Bottom Hole Location: | Sec:36 Twp: 8N 66W | Footage: 603 FSL 618 FWL | | Log Types: | CBL, Mud, MWD/LWD (Resistivity to be run on future well on the pad) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1547 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 395, Top: 0 ft., Bottom: 1547 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 12487 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 1695, Top: 6450 ft., Bottom: 12487 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 4280 ft. | | N | N | | SUSSEX | 5153 ft. | | N | N | | SHANNON | 5750 ft. | | N | N | | SHARON SPRINGS | 7957 ft. | | N | N | | NIOBRARA | 8094 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: TA - 9/1/2025 Interval Top: 8450 ft. Interval Bottom: 12446 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 11/30/2019 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 11/17/2019 | Treatment End Date: | 11/23/2019 | | Treatment Summary: | Plug and perf slickwater fracture treatment: 3600 gals Spearpoint Acid; 7,169,300 # 40/70; 600,030 # 30/50, 204,000 # 100 mesh; 215,909 bbls slickwater
| | Total fluid used in treatment (bbls): | 215909 | Max pressure during treatment (psi): | 9094 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 20 | | Total acid used in treatment (bbls): | 85 | Min frac gradient (psi/ft): | 0.98 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 10739 | | Fresh water used in treatment (bbls): | 215909 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 7973330 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 7762 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/12/2019 | Test Method: | flowback | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 655 | | BBLS_OIL | 137 | | BTU_GAS | 1400 | | CALC_BBLS_H2O | 655 | | CALC_BBLS_OIL | 137 | | CALC_GOR | 971 | | CALC_MCF_GAS | 133 | | CASING_PRESS | 1250 | | GRAVITY_OIL | 41 | | MCF_GAS | 133 | | TUBING_PRESS | 468 |
| | Perforation Data: | | Interval Top: | 8450 ft. | # Of Holes: | 618 | | Interval Bottom: | 12446 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 5199 |
| Total Gas Produced (MCF) | 7565 |
| GOR | 1455 |
| GOR Determination | BOE |
| Average BOE per Day | 17.842 |
| Average MCFE per Day | 103.468 |
| Federal Financial Assurance | i | |
|
|
