Wellbore #00 Wellbore Classification: OW Status: PA - 4/2/2020 Measured TD: 14245 ft. Vertical TD: 7340 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 4/2/2020 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 8/12/2020 | | Proposed Top PZ Location: | Sec:35 Twp: 2N 67W | Footage: 679 FSL 2279 FEL | | Bottom Hole Location: | Sec:36 Twp: 2N 67W | Footage: 648 FSL 1181 FEL | | Proposed Depth/Form: | 17597 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 280, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 36.94 , Citings Type: PLANNED | | Cement: | Sacks: 64, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 590, Top: 0 ft., Bottom: 1500 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 17587 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 2084, Top: , Bottom: 17587 ft. |
| | |

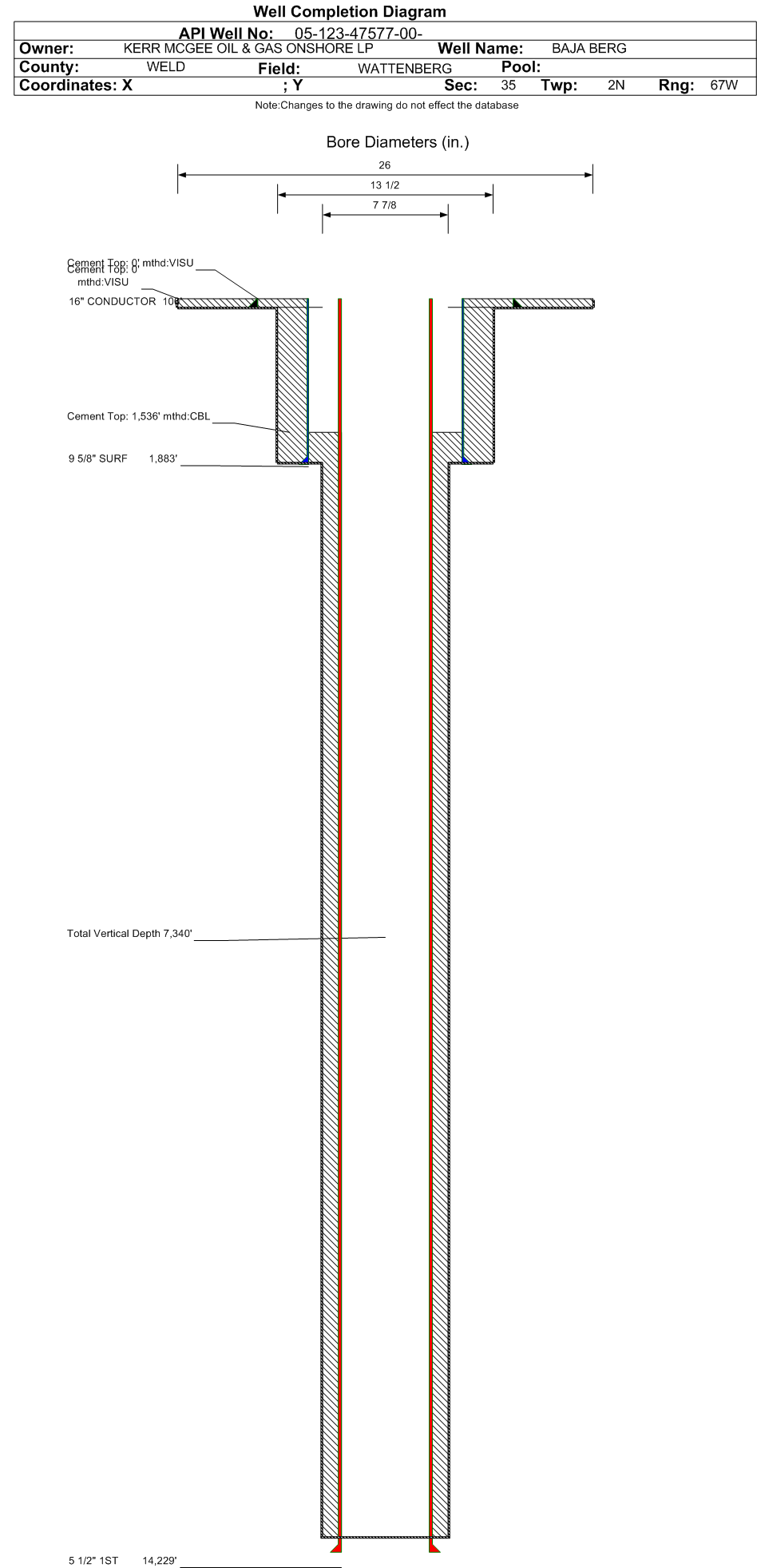

| Wellbore Completed | | Completion Date: | 1/28/2019 | | Spud Date: | 9/18/2018 | Spud Date Is: | ACTUAL | | Measured TD: | 14245 ft. | Measured PB depth: | 14225 ft. | | True Vertical TD: | 7340 ft. | True Vertical PB depth: | 7340 ft. | | Top PZ Location: | Sec:35 Twp: 2N 67W | Footage: 679 FSL 2279 FEL | | Bottom Hole Location: | Sec:36 Twp: 2N 67W | Footage: 648 FSL 1181 FEL | | Log Types: | CBL, MWD/LWD. (GR/RES in API 123-21077). CCL | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 100 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 64, Top: 0 ft., Bottom: 100 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1883 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 704, Top: 0 ft., Bottom: 1883 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 14229 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 1310, Top: 810 ft., Bottom: 14245 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FOX HILLS | 1255 ft. | | | | | PARKMAN | 4149 ft. | | | | | SUSSEX | 4497 ft. | | | | | SHARON SPRINGS | 7382 ft. | | | | | NIOBRARA | 7506 ft. | | | | | No formation data to display. |
|
