Wellbore #00 Wellbore Classification: OW Status: PR - 6/1/2024 Measured TD: 19975 ft. Vertical TD: 6861 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 6/1/2024 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 7/24/2020 | | Proposed Top PZ Location: | Sec:18 Twp: 2N 68W | Footage: 506 FSL 1103 FEL | | Bottom Hole Location: | Sec:6 Twp: 2N 68W | Footage: 2107 FSL 1105 FEL | | Proposed Depth/Form: | 19955 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407-2458 , Unit Acreage: 1440, Drill Unit: 6:S2;7:All;18:N2,SE | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 1500 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 19955 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 2689, Top: , Bottom: 19955 ft. |
| | |

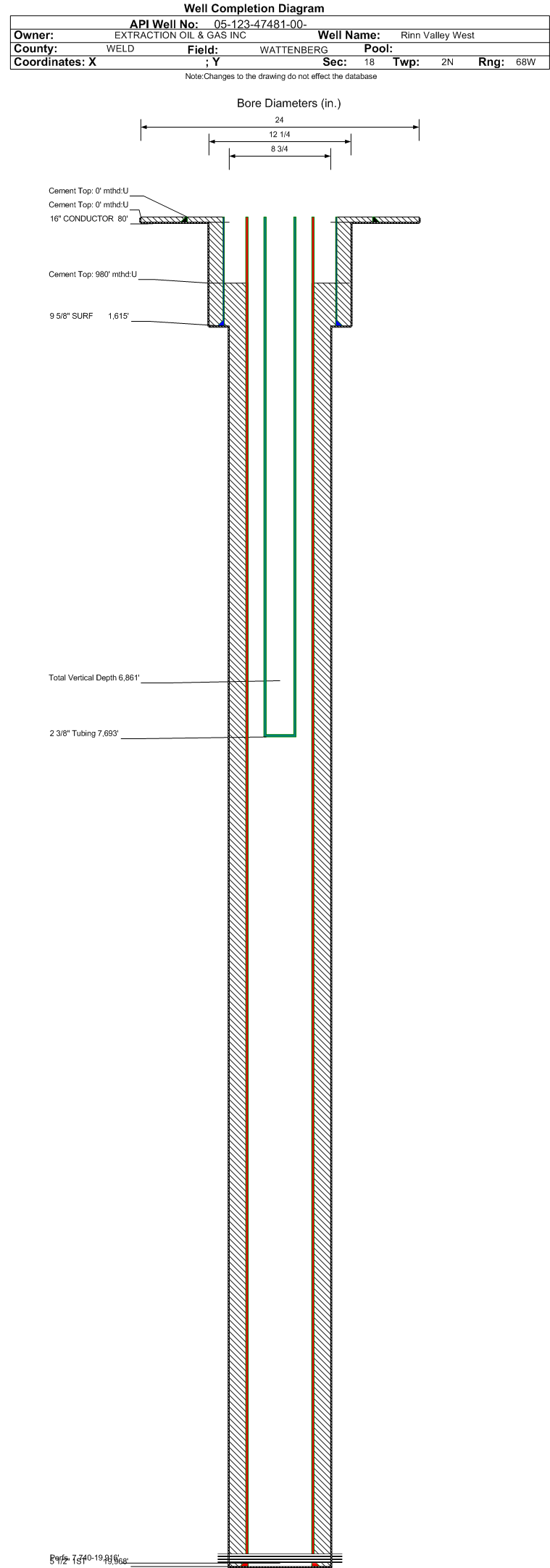

| Wellbore Completed | | Completion Date: | 9/12/2018 | | Spud Date: | 8/30/2018 | Spud Date Is: | ACTUAL | | Measured TD: | 19975 ft. | Measured PB depth: | 19968 ft. | | True Vertical TD: | 6861 ft. | True Vertical PB depth: | 6861 ft. | | Top PZ Location: | Sec:18 Twp: 2N 68W | Footage: 506 FSL 1103 FEL | | Bottom Hole Location: | Sec:6 Twp: 2N 68W | Footage: 2107 FSL 1105 FEL | | Log Types: | CBL, Mud, MWD/LWD, (Triple Combo on 123-47175). | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1615 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 550, Top: 0 ft., Bottom: 1615 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 19968 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 3415, Top: 980 ft., Bottom: 19968 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3797 ft. | | N | N | | SUSSEX | 4238 ft. | | N | N | | SHANNON | 4775 ft. | | N | N | | SHARON SPRINGS | 7183 ft. | | N | N | | NIOBRARA | 7375 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 6/1/2024 Interval Top: 7740 ft. Interval Bottom: 19916 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 12/25/2018 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/23/2018 | Treatment End Date: | 11/7/2018 | | Treatment Summary: | Frac'd Niobrara with 59-stage plug-and-perf;
26244 total bbls fluid pumped: 26055 bbls fresh water and 189 bbls 28% HCl acid;
18303200 total lbs proppant pumped: 9152320 lbs 40/70 mesh and 9150880 lbs 30/50 mesh. | | Total fluid used in treatment (bbls): | 26244 | Max pressure during treatment (psi): | 9347 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 59 | | Total acid used in treatment (bbls): | 189 | Min frac gradient (psi/ft): | 0.88 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 23257 | | Fresh water used in treatment (bbls): | 26055 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 18303200 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7693 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/15/2019 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 305 | | BBLS_OIL | 479 | | BTU_GAS | 1366 | | CALC_BBLS_H2O | 305 | | CALC_BBLS_OIL | 479 | | CALC_GOR | 3344 | | CALC_MCF_GAS | 1602 | | CASING_PRESS | 2393 | | GRAVITY_OIL | 48 | | MCF_GAS | 1602 | | TUBING_PRESS | 1911 |
| | Perforation Data: | | Interval Top: | 7740 ft. | # Of Holes: | 1404 | | Interval Bottom: | 19916 ft. | Hole Size: | 0.5 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 5930 |
| Total Gas Produced (MCF) | 49394 |
| GOR | 8329 |
| GOR Determination | BOE |
| Average BOE per Day | 39.659 |
| Average MCFE per Day | 230.023 |
| Federal Financial Assurance | i | |
|
|
