Wellbore #00 Wellbore Classification: OW Status: PR - 1/1/2024 Measured TD: 17565 ft. Vertical TD: 7397 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 1/1/2024 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 6/22/2020 | | Proposed Top PZ Location: | Sec:17 Twp: 2N 68W | Footage: 506 FSL 510 FWL | | Bottom Hole Location: | Sec:8 Twp: 2N 68W | Footage: 512 FNL 502 FWL | | Proposed Depth/Form: | 17652 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407-1968 , Unit Acreage: 1280, Drill Unit: S8:All & S17:All | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 1500 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17652 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 2353, Top: , Bottom: 17652 ft. |
| | |

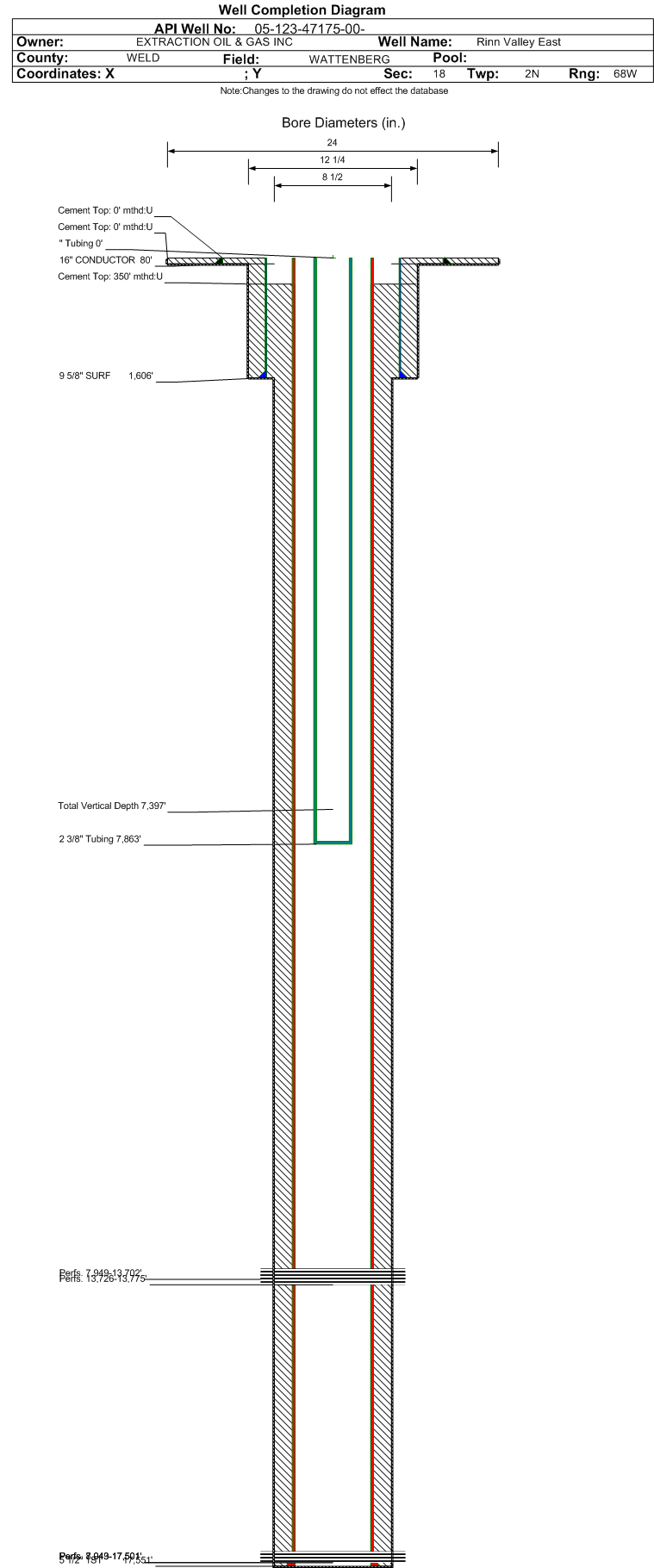

| Wellbore Completed | | Completion Date: | 8/22/2018 | | Spud Date: | 7/3/2018 | Spud Date Is: | ACTUAL | | Measured TD: | 17565 ft. | Measured PB depth: | 17551 ft. | | True Vertical TD: | 7397 ft. | True Vertical PB depth: | 7398 ft. | | Top PZ Location: | Sec:17 Twp: 2N 68W | Footage: 506 FSL 510 FWL | | Bottom Hole Location: | Sec:8 Twp: 2N 68W | Footage: 512 FNL 502 FWL | | Log Types: | CBL, Mud, MWD/LWD, Triple Combo. | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1606 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 550, Top: 0 ft., Bottom: 1606 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17551 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 2800, Top: 350 ft., Bottom: 17551 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3877 ft. | | N | N | | SUSSEX | 4273 ft. | | N | N | | SHANNON | 4840 ft. | | N | N | | SHARON SPRINGS | 7278 ft. | | N | N | | NIOBRARA | 7404 ft. | | N | N | | FORT HAYS | 7904 ft. | | N | N | | CODELL | 8026 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: CM - 3/6/2019 Interval Top: 13726 ft. Interval Bottom: 13775 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 12/28/2018 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/11/2018 | Treatment End Date: | 10/20/2018 | | Treatment Summary: | Producing Interval: 13726'-13775'. | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 13726 ft. | # Of Holes: | 9 | | Interval Bottom: | 13775 ft. | Hole Size: | 0.38 in. |
|
Formation CODL Formation Classification: OW Status: CM - 3/6/2019 Interval Top: 8043 ft. Interval Bottom: 17501 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 12/28/2018 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/11/2018 | Treatment End Date: | 10/20/2018 | | Treatment Summary: | Producing Intervals: 8043'-13596'; 13798'-17501'. | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 8043 ft. | # Of Holes: | 1096 | | Interval Bottom: | 17501 ft. | Hole Size: | 0.38 in. |
|
Formation FTHYS Formation Classification: OW Status: CM - 3/6/2019 Interval Top: 7949 ft. Interval Bottom: 13702 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | 12/28/2018 | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/11/2018 | Treatment End Date: | 10/20/2018 | | Treatment Summary: | Producing Intervals: 7949'-8020'; 13630'-13702'. | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 7949 ft. | # Of Holes: | 24 | | Interval Bottom: | 13702 ft. | Hole Size: | 0.38 in. |
|
Formation NBFHC Formation Classification: OW Status: PR - 1/1/2024 Interval Top: 7949 ft. Interval Bottom: 17501 ft.| Completed Information for Formation NIOBRARA-FT HAYS-CODELL | | 1st Production Date: | 12/28/2018 | Choke Size: | | | Formation Name: | NIOBRARA-FT HAYS-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/11/2018 | Treatment End Date: | 10/20/2018 | | Treatment Summary: | Frac'd Niobrara-Fort Hays-Codell with 48-stage plug-and-perf;
9600440 total lbs proppant pumped: 9513990 lbs 30/50 mesh and 86450 lbs 40/70 mesh;
17915 total bbls fluid pumped: 17909 bbls fresh water and 6 bbls 28% HCl acid. | | Total fluid used in treatment (bbls): | 17915 | Max pressure during treatment (psi): | 8393 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 48 | | Total acid used in treatment (bbls): | 6 | Min frac gradient (psi/ft): | 0.86 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 18511 | | Fresh water used in treatment (bbls): | 17909 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 9600440 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7863 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/15/2019 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 381 | | BBLS_OIL | 298 | | BTU_GAS | 1366 | | CALC_BBLS_H2O | 381 | | CALC_BBLS_OIL | 298 | | CALC_GOR | 4010 | | CALC_MCF_GAS | 1195 | | CASING_PRESS | 2769 | | GRAVITY_OIL | 48 | | MCF_GAS | 1195 | | TUBING_PRESS | 1775 |
| | Perforation Data: | | Interval Top: | 7949 ft. | # Of Holes: | 1129 | | Interval Bottom: | 17501 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 6953 |
| Total Gas Produced (MCF) | 72821 |
| GOR | 10473 |
| GOR Determination | BOE |
| Average BOE per Day | 53.430 |
| Average MCFE per Day | 309.885 |
| Federal Financial Assurance | i | |
|
|
