Wellbore #00 Wellbore Classification: OW Status: PR - 3/1/2020 Measured TD: 13428 ft. Vertical TD: 6210 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 3/1/2020 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 11/8/2019 | | Proposed Top PZ Location: | Sec:19 Twp: 8N 59W | Footage: 1836 FSL 600 FEL | | Bottom Hole Location: | Sec:24 Twp: 8N 60W | Footage: 1836 FSL 2126 FEL | | Proposed Depth/Form: | 13691 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-872 , Unit Acreage: 960, Drill Unit: 24:E/2, 19:ALL | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 43 , Citings Type: PLANNED | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 100 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1850 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 650, Top: 0 ft., Bottom: 1850 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 13691 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 1860, Top: 0 ft., Bottom: 13691 ft. |
| | |

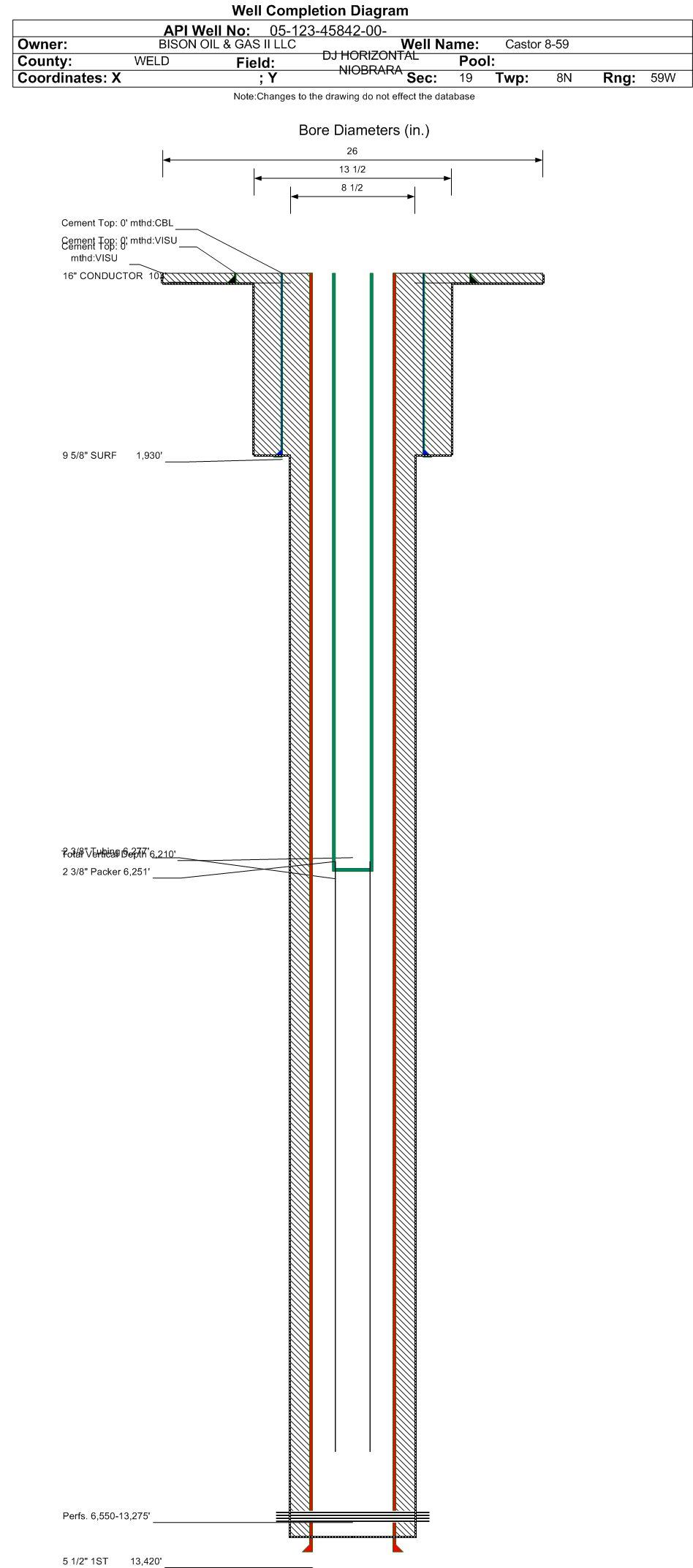

| Wellbore Completed | | Completion Date: | 12/12/2017 | | Spud Date: | 12/7/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 13428 ft. | Measured PB depth: | 13374 ft. | | True Vertical TD: | 6210 ft. | True Vertical PB depth: | 6208 ft. | | Top PZ Location: | Sec:19 Twp: 8N 59W | Footage: 1836 FSL 600 FEL | | Bottom Hole Location: | Sec:24 Twp: 8N 60W | Footage: 1836 FSL 2126 FEL | | Log Types: | MWD/LWD, CBL, Mud, (Resistivity in API 05-123-45855) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 103 ft., Weight: 43 , Citings Type: ACTUAL | | Cement: | Sacks: 270, Top: 0 ft., Bottom: 103 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1930 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 682, Top: 0 ft., Bottom: 1930 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 13420 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 1890, Top: 0 ft., Bottom: 13420 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3182 ft. | 3642 ft. | N | | | SUSSEX | 3845 ft. | 3945 ft. | N | | | SHANNON | 4710 ft. | 4910 ft. | N | | | SHARON SPRINGS | 5955 ft. | 6079 ft. | N | | | NIOBRARA | 6079 ft. | | N | |
Formation NBRR Formation Classification: OW Status: PR - 3/1/2020 Interval Top: 6550 ft. Interval Bottom: 13275 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 2/14/2018 | Choke Size: | 32.000 in. | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6277 ft. | | Tubing Packer Depth: | 6271 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/14/2018 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1033 | | BBLS_OIL | 303 | | BTU_GAS | 1600 | | CALC_BBLS_H2O | 1033 | | CALC_BBLS_OIL | 303 | | CALC_GOR | 1 | | CALC_MCF_GAS | 216 | | GRAVITY_OIL | 36 | | MCF_GAS | 216 | | TUBING_PRESS | 315 |
| | Perforation Data: | | Interval Top: | 6550 ft. | # Of Holes: | 1128 | | Interval Bottom: | 13275 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 6721 |
| Total Gas Produced (MCF) | 26216 |
| GOR | 3900 |
| GOR Determination | BOE |
| Average BOE per Day | 30.879 |
| Average MCFE per Day | 179.116 |
| Federal Financial Assurance | i | |
|
|
