COGIS - WELL SCOUT CARD

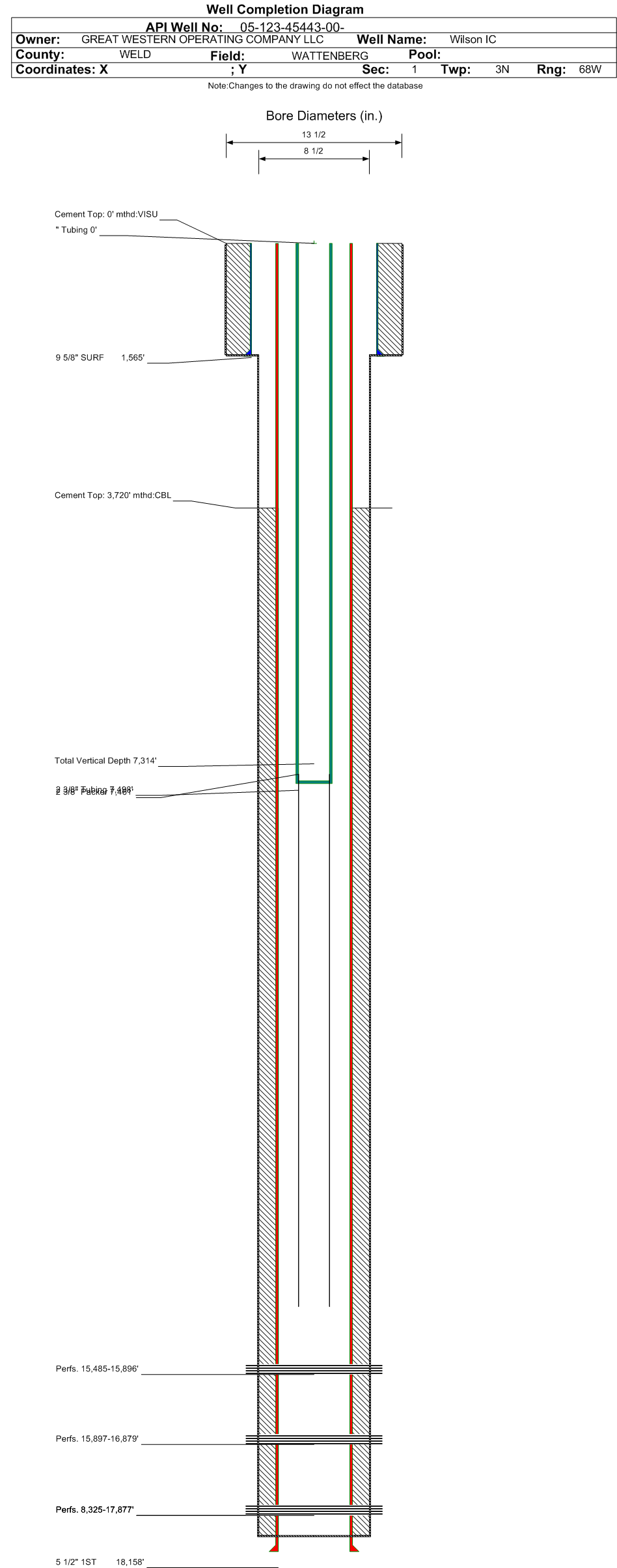

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-45443		Well Classification: OW Status: SI - 11/1/2025
Well Name/No:Wilson IC #03-259HC
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date11/1/2025
FacilityID:452186LocationID:452180
County:WELD #123Location:NWNW 1 3N68W 6
Field:WATTENBERG - #90750Elevation:4985 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1276FNL  675 FWLLat/Long: 40.259347 / -104.958331Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.259348 / -104.958330Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 6/29/2019
End Date: 7/16/2019
Reported: 8/9/2019
Days to report: 24
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 11/1/2025             Measured TD: 18158 ft.    Vertical TD: 7314 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 11/1/2025
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:9/16/2019
Proposed Top PZ Location:Sec:2 Twp: 3N 68W Footage: 2021 FSL  460 FEL
Bottom Hole Location:Sec:3 Twp: 3N 68W Footage: 2015 FSL  370 FWL
Proposed Depth/Form:17838 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: , Unit Acreage: 1280, Drill Unit: GWA
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 624, Top: 0 ft., Bottom: 1500 ft.
Casing:String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17938 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: 2289, Top: , Bottom: 17938 ft.
Wellbore Completed
Completion Date:4/12/2019
Spud Date:2/1/2019Spud Date Is:ACTUAL
Measured TD:18158 ft.Measured PB depth:18149 ft.
True Vertical TD:7314 ft.True Vertical PB depth:7314 ft.
Top PZ Location:Sec:2 Twp: 3N 68WFootage: 1990 FSL  509 FEL
Bottom Hole Location:Sec:3 Twp: 3N 68WFootage: 1964 FSL  247 FWL
Log Types:Mud, MWD/LWD, CBL, Formation MicroScan, Tracer Survey (Composite in 123-45441)
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1565 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 720, Top: 0 ft., Bottom: 1565 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 18158 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 2000, Top: 3720 ft., Bottom: 18158 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3699 ft.3728 ft.NN
SUSSEX4208 ft.4374 ft.NN
SHANNON4799 ft.4834 ft.NN
SHARON SPRINGS7391 ft.NN
NIOBRARA7562 ft.NN
FORT HAYS8045 ft.NN
CODELL8134 ft.NN

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 8/27/2020                 Interval Top: 15897 ft.    Interval Bottom: 16879 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:8/28/2019Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:8/27/2020Treatment End Date:N/A
Treatment Summary:Niobrara Perf Intervals: 15897-16879
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:15897 ft.# Of Holes:1440
Interval Bottom:16879 ft.Hole Size:0.38 in.

Formation FTHYS                   Formation Classification:  OW                   Status:  CM - 8/27/2020                 Interval Top: 15485 ft.    Interval Bottom: 15896 ft.

 Completed Information for Formation FORT HAYS
1st Production Date:8/28/2019Choke Size:
Formation Name:FORT HAYSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:8/27/2020Treatment End Date:N/A
Treatment Summary:Fort Hays Perf Intervals: 15485-15896
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation FTHYS.
Perforation Data:
Interval Top:15485 ft.# Of Holes:1440
Interval Bottom:15896 ft.Hole Size:0.38 in.

Formation CODL                     Formation Classification:  OW                     Status:  CM - 8/27/2020                 Interval Top: 8325 ft.    Interval Bottom: 17877 ft.

 Completed Information for Formation CODELL
1st Production Date:8/28/2019Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:8/27/2020Treatment End Date:N/A
Treatment Summary:Codell Perf Intervals: 8325-15484, 16880-17877
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:8325 ft.# Of Holes:1440
Interval Bottom:17877 ft.Hole Size:0.38 in.

Formation NBFHC                   Formation Classification:  OW                   Status:  SI - 11/1/2025                 Interval Top: 8325 ft.    Interval Bottom: 17877 ft.

 Completed Information for Formation NIOBRARA-FT HAYS-CODELL
1st Production Date:8/28/2019Choke Size:
Formation Name:NIOBRARA-FT HAYS-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:6/29/2019Treatment End Date:7/16/2019
Treatment Summary:24 bbls 15% HCL Acid; 486,726# 100 Mesh Sand; 9,109,524# 20/40 Sand; 166,201 bbls gelled fluid; Flowback determined from well test separator.
Total fluid used in treatment (bbls):166225Max pressure during treatment (psi):4641
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.33
Type Of gas:Number Of staged intervals:48
Total acid used in treatment (bbls):24Min frac gradient (psi/ft):0.93
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):21803
Fresh water used in treatment (bbls):166201Disposition method For flowback:DISPOSAL
Total proppant used (lbs):9596250Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:7498 ft.
Tubing Packer Depth:7481 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/31/2019Test Method:Flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 878
BBLS_OIL 462
BTU_GAS 1393
CALC_BBLS_H2O 878
CALC_BBLS_OIL 462
CALC_GOR 1567
CALC_MCF_GAS 724
GRAVITY_OIL 46
MCF_GAS 724
TUBING_PRESS 1050
Perforation Data:
Interval Top:8325 ft.# Of Holes:1440
Interval Bottom:17877 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)1080
Total Gas Produced (MCF)5139
GOR4758
GOR DeterminationBOE
Average BOE per Day5.419
Average MCFE per Day31.445

 Federal Financial Assurance  i

 Tribal Well  i No
