COGIS - WELL SCOUT CARD

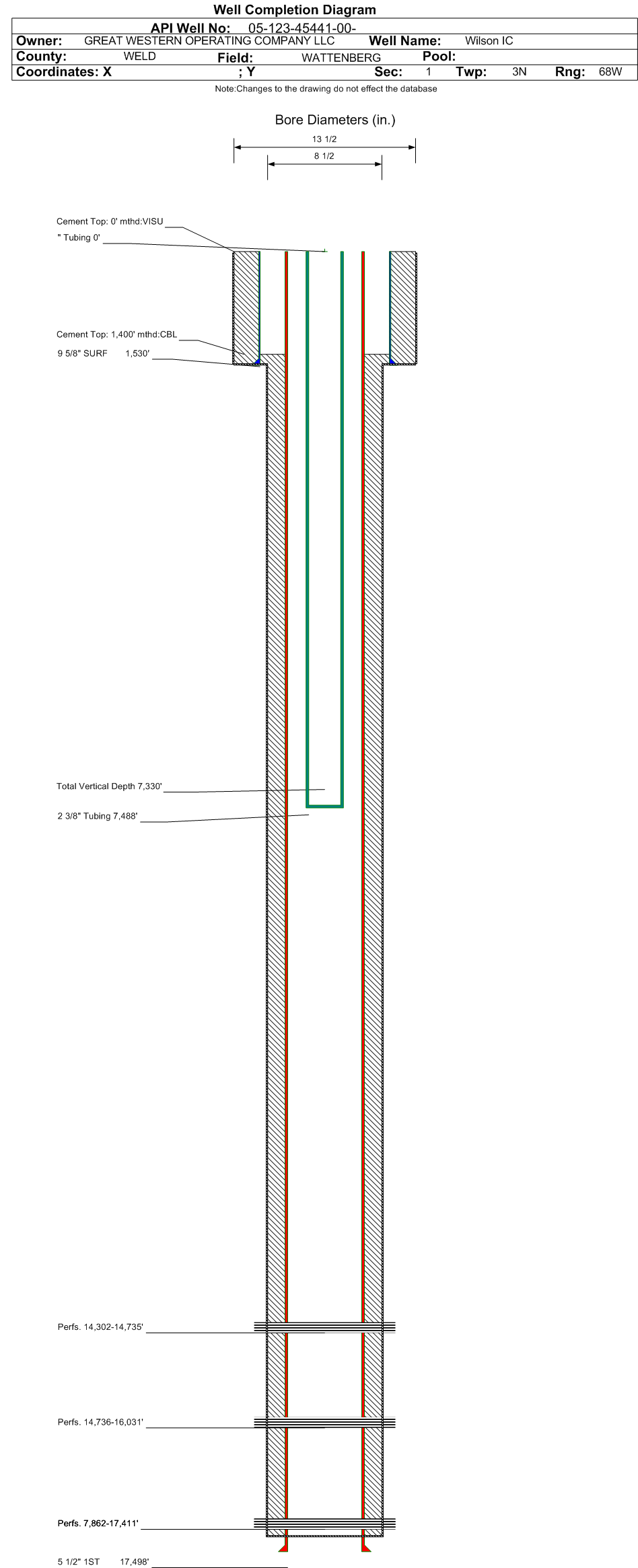

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-45441		Well Classification: OW Status: PR - 1/1/2026
Well Name/No:Wilson IC #03-099HC
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/1/2026
FacilityID:452184LocationID:452180
County:WELD #123Location:NWNW 1 3N68W 6
Field:WATTENBERG - #90750Elevation:4986 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1176FNL  615 FWLLat/Long: 40.259622 / -104.958544Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.259622 / -104.958543Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 7/24/2018
End Date: 8/9/2018
Reported: 9/4/2018
Days to report: 26
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 1/1/2026             Measured TD: 17498 ft.    Vertical TD: 7330 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 1/1/2026
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:9/16/2019
Proposed Top PZ Location:Sec:2 Twp: 3N 68W Footage: 1253 FNL  460 FEL
Bottom Hole Location:Sec:3 Twp: 3N 68W Footage: 1250 FNL  370 FWL
Proposed Depth/Form:17406 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: , Unit Acreage: 1280, Drill Unit: GWA
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 624, Top: 0 ft., Bottom: 1500 ft.
Casing:String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17506 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: 2234, Top: , Bottom: 17506 ft.
Wellbore Completed
Completion Date:6/10/2018
Spud Date:4/15/2018Spud Date Is:ACTUAL
Measured TD:17498 ft.Measured PB depth:17490 ft.
True Vertical TD:7330 ft.True Vertical PB depth:7330 ft.
Top PZ Location:Sec:2 Twp: 3N 68WFootage: 1259 FNL  540 FEL
Bottom Hole Location:Sec:3 Twp: 3N 68WFootage: 1260 FNL  418 FWL
Log Types:CBL, Mud Log, MWD/LWD, Composite
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1530 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 620, Top: 0 ft., Bottom: 1530 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17498 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 2285, Top: 1400 ft., Bottom: 17498 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3686 ft.3728 ft.NN
SUSSEX4132 ft.4287 ft.NN
SHANNON4637 ft.4670 ft.NN
SHARON SPRINGS6772 ft.NN
NIOBRARA7142 ft.NN
FORT HAYS7612 ft.NN
CODELL7723 ft.NN

Formation FTHYS                   Formation Classification:  OW                   Status:  CM - 7/27/2020                 Interval Top: 14736 ft.    Interval Bottom: 16031 ft.

 Completed Information for Formation FORT HAYS
1st Production Date:10/1/2018Choke Size:
Formation Name:FORT HAYSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:7/27/2020Treatment End Date:N/A
Treatment Summary:Fort Hays Perf Interval: 14736-16031
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation FTHYS.
Perforation Data:
Interval Top:14736 ft.# Of Holes:1440
Interval Bottom:16031 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 7/27/2020                 Interval Top: 14302 ft.    Interval Bottom: 14735 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:10/1/2018Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:7/27/2020Treatment End Date:N/A
Treatment Summary:Niobrara Perf Interval: 14302-14735
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:14302 ft.# Of Holes:1440
Interval Bottom:14735 ft.Hole Size:0.38 in.

Formation CODL                     Formation Classification:  OW                     Status:  CM - 7/27/2020                 Interval Top: 7862 ft.    Interval Bottom: 17411 ft.

 Completed Information for Formation CODELL
1st Production Date:10/1/2018Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:7/27/2020Treatment End Date:N/A
Treatment Summary:Codell Perf Interval: 7862-14301, 16032-17411
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7862 ft.# Of Holes:1440
Interval Bottom:17411 ft.Hole Size:0.38 in.

Formation NBFHC                   Formation Classification:  OW                   Status:  PR - 1/1/2026                  Interval Top: 7862 ft.    Interval Bottom: 17411 ft.

 Completed Information for Formation NIOBRARA-FT HAYS-CODELL
1st Production Date:10/1/2018Choke Size:
Formation Name:NIOBRARA-FT HAYS-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:7/24/2018Treatment End Date:8/9/2018
Treatment Summary:527,431 lbs 100 Mesh Sand; 9,129,471 lbs 20/40 Sand; 162,932bbls Gelled Fluid. Flowback determined from well test separator
Total fluid used in treatment (bbls):162932Max pressure during treatment (psi):4275
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.33
Type Of gas:Number Of staged intervals:48
Total acid used in treatment (bbls):Min frac gradient (psi/ft):0.86
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):19200
Fresh water used in treatment (bbls):162932Disposition method For flowback:DISPOSAL
Total proppant used (lbs):9656902Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:7488 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/5/2018Test Method:Flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 459
BBLS_OIL 321
BTU_GAS 1272
CALC_BBLS_H2O 459
CALC_BBLS_OIL 321
CALC_GOR 1560
CALC_MCF_GAS 501
CASING_PRESS 2165
GRAVITY_OIL 44
MCF_GAS 501
TUBING_PRESS 1584
Perforation Data:
Interval Top:7862 ft.# Of Holes:1440
Interval Bottom:17411 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)4084
Total Gas Produced (MCF)40758
GOR9979
GOR DeterminationBOE
Average BOE per Day30.501
Average MCFE per Day176.886

 Federal Financial Assurance  i

 Tribal Well  i No
