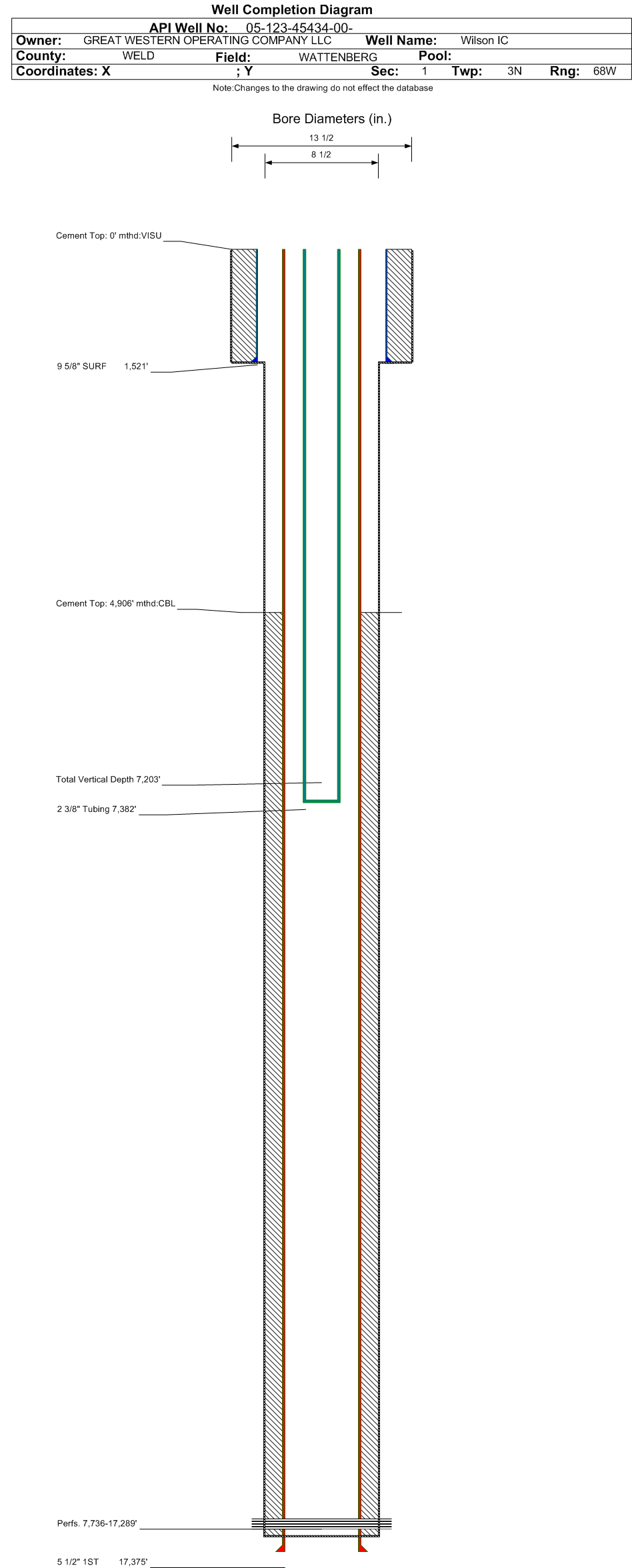

Wellbore #00 Wellbore Classification: OW Status: PR - 1/1/2026 Measured TD: 17375 ft. Vertical TD: 7203 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 1/1/2026 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 9/16/2019 | | Proposed Top PZ Location: | Sec:2 Twp: 3N 68W | Footage: 1540 FNL 460 FEL | | Bottom Hole Location: | Sec:3 Twp: 3N 68W | Footage: 1535 FNL 370 FWL | | Proposed Depth/Form: | 17304 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 1280, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 624, Top: 0 ft., Bottom: 1500 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17404 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 2224, Top: , Bottom: 17404 ft. |
| | |
| Wellbore Completed | | Completion Date: | 6/16/2018 | | Spud Date: | 4/16/2018 | Spud Date Is: | ACTUAL | | Measured TD: | 17375 ft. | Measured PB depth: | 17367 ft. | | True Vertical TD: | 7203 ft. | True Vertical PB depth: | 7203 ft. | | Top PZ Location: | Sec:2 Twp: 3N 68W | Footage: 1553 FNL 540 FEL | | Bottom Hole Location: | Sec:3 Twp: 3N 68W | Footage: 1532 FNL 419 FWL | | Log Types: | CBL, Mud Log, MWD/LWD, (Composite in API # 05-123-45441) | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1521 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 620, Top: 0 ft., Bottom: 1521 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17375 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 2513, Top: 4906 ft., Bottom: 17375 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3676 ft. | 3719 ft. | N | N | | SUSSEX | 4126 ft. | 4286 ft. | N | N | | SHANNON | 4637 ft. | 4671 ft. | N | N | | SHARON SPRINGS | 7014 ft. | | N | N | | NIOBRARA | 7217 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 1/1/2026 Interval Top: 7736 ft. Interval Bottom: 17289 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 10/2/2018 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/24/2018 | Treatment End Date: | 8/9/2018 | | Treatment Summary: | 785,349 lbs 100 Mesh Sand; 8,847,063 lbs 20/40 Sand; 2,667 bbls 15% HCL Acid; 216,409 bbls Gelled Fluid. Flowback determined from well test separator | | Total fluid used in treatment (bbls): | 219076 | Max pressure during treatment (psi): | 4383 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 64 | | Total acid used in treatment (bbls): | 2667 | Min frac gradient (psi/ft): | 0.90 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 17022 | | Fresh water used in treatment (bbls): | 216409 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 9632412 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7382 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/7/2018 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 500 | | BBLS_OIL | 339 | | BTU_GAS | 1272 | | CALC_BBLS_H2O | 500 | | CALC_BBLS_OIL | 339 | | CALC_GOR | 1271 | | CALC_MCF_GAS | 431 | | CASING_PRESS | 2008 | | GRAVITY_OIL | 44 | | MCF_GAS | 431 | | TUBING_PRESS | 1484 |
| | Perforation Data: | | Interval Top: | 7736 ft. | # Of Holes: | 1664 | | Interval Bottom: | 17289 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1610 |
| Total Gas Produced (MCF) | 28285 |
| GOR | 17568 |
| GOR Determination | MCFE |
| Average BOE per Day | 17.764 |
| Average MCFE per Day | 103.029 |
| Federal Financial Assurance | i | |
|
|
