Wellbore #00 Wellbore Classification: OW Status: PR - 6/4/2018 Measured TD: 12783 ft. Vertical TD: 7123 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 6/4/2018 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 4/16/2019 | | Proposed Top PZ Location: | Sec:29 Twp: 3N 65W | Footage: 194 FSL 127 FWL | | Bottom Hole Location: | Sec:29 Twp: 3N 65W | Footage: 64 FNL 123 FWL | | Proposed Depth/Form: | 12712 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42.1 , Citings Type: PLANNED | | Cement: | Sacks: 30, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 590, Top: 0 ft., Bottom: 1500 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 12702 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 1487, Top: , Bottom: 12702 ft. |
| | |

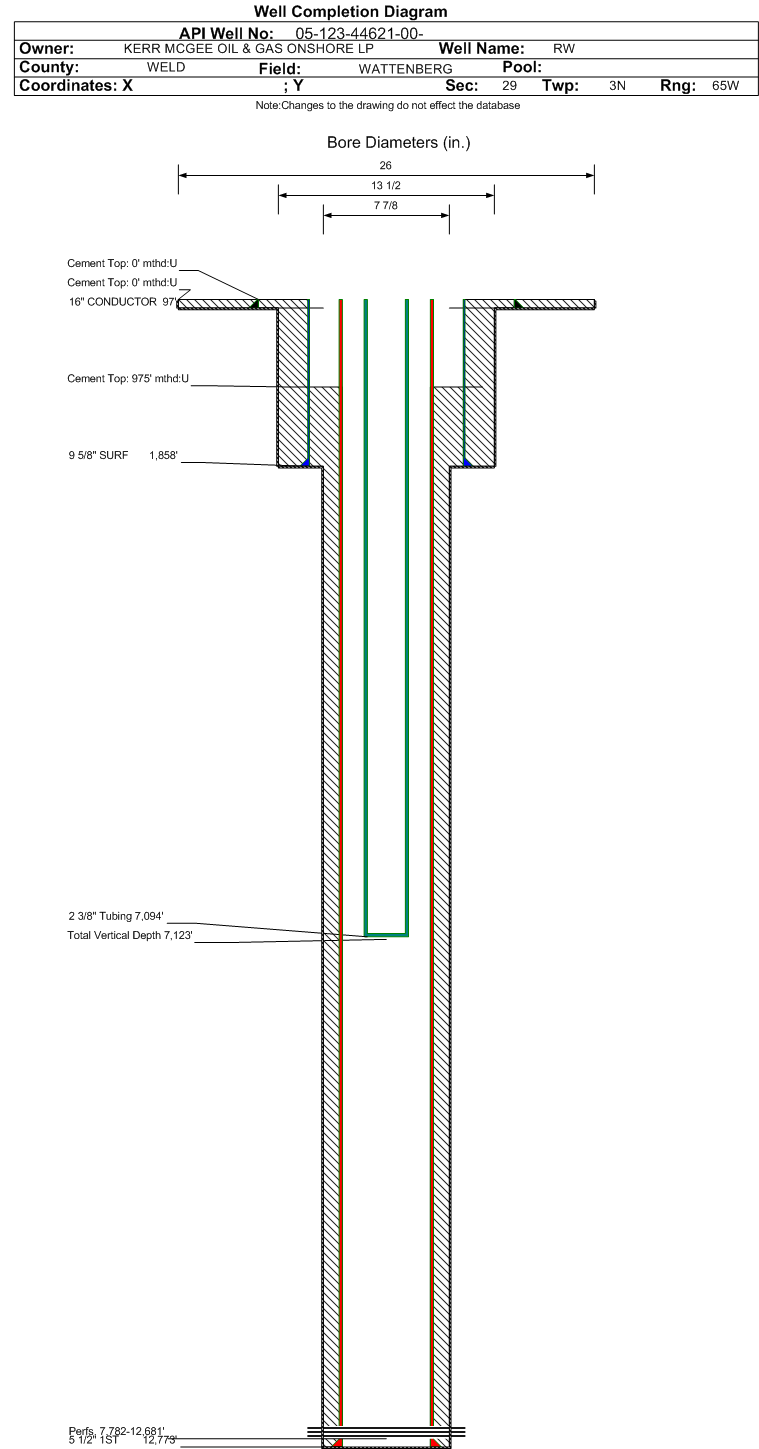

| Wellbore Completed | | Completion Date: | 7/30/2017 | | Spud Date: | 7/21/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 12783 ft. | Measured PB depth: | 12723 ft. | | True Vertical TD: | 7123 ft. | True Vertical PB depth: | 7124 ft. | | Top PZ Location: | Sec:29 Twp: 3N 65W | Footage: 194 FSL 127 FWL | | Bottom Hole Location: | Sec:29 Twp: 3N 65W | Footage: 64 FNL 123 FWL | | Log Types: | MWD/GR, CBL, (CNL in 05-123-44617, RESISTIVITY in 05-123-25834) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 97 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 64, Top: 0 ft., Bottom: 97 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1858 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 700, Top: 0 ft., Bottom: 1858 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 12773 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 1290, Top: 975 ft., Bottom: 12783 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4839 ft. | | | | | SHARON SPRINGS | 7231 ft. | | | | | NIOBRARA | 7305 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 6/4/2018 Interval Top: 7782 ft. Interval Bottom: 12681 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 5/7/2018 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 4/10/2018 | Treatment End Date: | 4/20/2018 | | Treatment Summary: | PERF AND FRAC FROM 7782-12681.
214 BBL 15% HCL ACID, 805 BBL 7.5% HCL ACID, 6,143 BBL PUMP DOWN, 174,168 BBL SLICKWATER, 181,330 TOTAL FLUID, 1,472,439# 40/70 OTTAWA/ST. PETERS, 1,472,439# TOTAL SAND. | | Total fluid used in treatment (bbls): | 181330 | Max pressure during treatment (psi): | 7839 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 46 | | Total acid used in treatment (bbls): | 1019 | Min frac gradient (psi/ft): | 0.96 | | Recycled water used in treatment (bbls): | 2480 | Total flowback volume recovered (bbls): | 7844 | | Fresh water used in treatment (bbls): | 177831 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1472439 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7094 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/4/2018 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 125 | | BBLS_OIL | 233 | | BTU_GAS | 1266 | | CALC_BBLS_H2O | 125 | | CALC_BBLS_OIL | 233 | | CALC_GOR | 4249 | | CALC_MCF_GAS | 990 | | CASING_PRESS | 2525 | | GRAVITY_OIL | 60 | | MCF_GAS | 990 | | TUBING_PRESS | 1882 |
| | Perforation Data: | | Interval Top: | 7782 ft. | # Of Holes: | 1080 | | Interval Bottom: | 12681 ft. | Hole Size: | 0.44 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 4148 |
| Total Gas Produced (MCF) | 52977 |
| GOR | 12771 |
| GOR Determination | BOE |
| Average BOE per Day | 36.377 |
| Average MCFE per Day | 211.001 |
| Federal Financial Assurance | i | |
|
|
