COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-44612		Well Classification: OW Status: PR - 6/4/2018
Well Name/No:RW #4N-5HZXX
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/4/2018
FacilityID:450018LocationID:450025
County:WELD #123Location:SESW 29 3N65W 6
Field:WATTENBERG - #90750Elevation:4887 ft.
Basin:DENVER (DJ) BASIN
Planned Location:441FSL  1674 FWLLat/Long: 40.190390 / -104.690734Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.190390 / -104.690734Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 3/29/2018
End Date: 4/9/2018
Reported: 5/16/2018
Days to report: 37
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

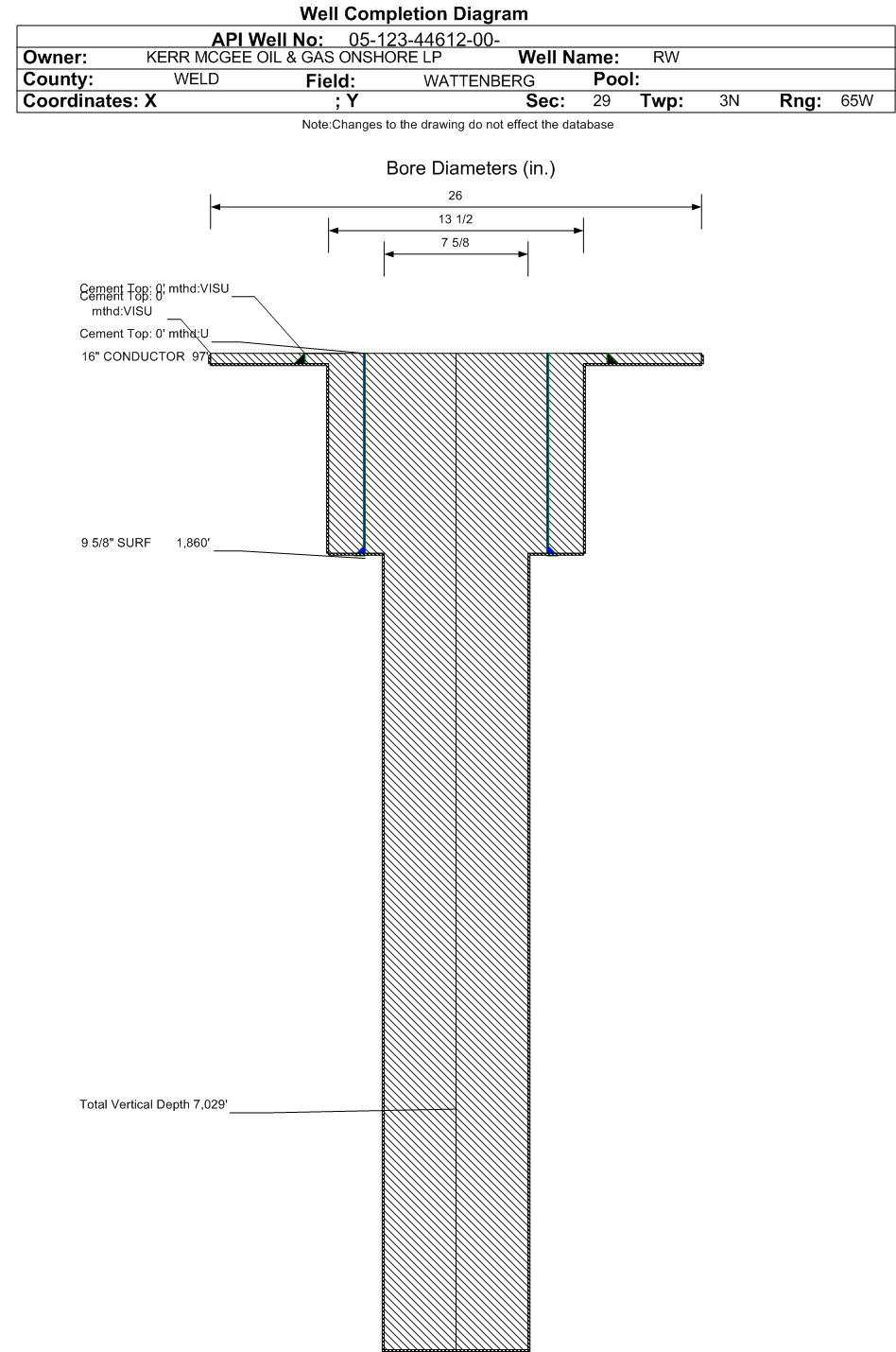

Wellbore #00             Wellbore Classification: OW             Status: AB - 7/16/2017             Measured TD: 9268 ft.    Vertical TD: 7029 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 7/16/2017
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:4/16/2019
Proposed Top PZ Location:Sec:32 Twp: 3N 65W Footage: 891 FNL  676 FWL
Bottom Hole Location:Sec:32 Twp: 3N 65W Footage: 891 FNL  676 FWL
Proposed Depth/Form:14027 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 240, Drill Unit: GWA
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42.1 , Citings Type: PLANNED
Cement:Sacks: 30, Top: 0 ft., Bottom: 40 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 590, Top: 0 ft., Bottom: 1500 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 14017 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: 1648, Top: , Bottom: 14017 ft.
Wellbore Completed
Completion Date:8/6/2017
Spud Date:7/19/2017Spud Date Is:ACTUAL
Measured TD:9268 ft.Measured PB depth:5321 ft.
True Vertical TD:7029 ft.True Vertical PB depth:5131 ft.
Bottom Hole Location:Sec:32 Twp: 3N 65WFootage: 891 FNL  676 FWL
Log Types:MWD/LWD
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 97 ft., Weight: 42.1 , Citings Type: ACTUAL
Cement:Sacks: 64, Top: 0 ft., Bottom: 97 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1860 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 701, Top: 0 ft., Bottom: 1860 ft., Determination Method: VISU
Casing:String Type: OPEN HOLE, Hole Size: 7.625 in., Size: , Top: 1860 ft., Depth: 9268 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
Additional Cement:String Type: OPEN HOLE , Top: 5321 ft., Depth: , Bottom: 6257 ft., Sacks: 290, Method:
Additional Cement:String Type: OPEN HOLE , Top: 6257 ft., Depth: , Bottom: 7107 ft., Sacks: 225, Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS1230 ft.
PARKMAN4069 ft.
SUSSEX4792 ft.
SHARON SPRINGS7298 ft.
NIOBRARA7428 ft.
  No formation data to display.

Sidetrack #01             Wellbore Classification: OW             Status: AB - 8/7/2017             Measured TD: 13851 ft.    Vertical TD: 7032 ft.

 Wellbore Data for Sidetrack #01Wellbore Classification: OW        AB - 8/7/2017
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:8/7/2019
Proposed Top PZ Location:Sec:29 Twp: 3N 65W Footage: 756 FSL  680 FWL
Bottom Hole Location:Sec:5 Twp: 2N 65W Footage: 366 FNL  747 FWL
Proposed Depth/Form:14027 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 240, Drill Unit: GWA
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 97 ft., Weight: 42.1 , Citings Type: PLANNED
Cement:Sacks: 40, Top: 0 ft., Bottom: 97 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1860 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 650, Top: 0 ft., Bottom: 1860 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 14017 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: 1648, Top: , Bottom: 14017 ft.
Wellbore Completed
Completion Date:8/13/2017
Spud Date:7/19/2017Spud Date Is:ACTUAL
Measured TD:13851 ft.Measured PB depth:5350 ft.
True Vertical TD:7032 ft.True Vertical PB depth:5159 ft.
Bottom Hole Location:Sec:5 Twp: 3N 66WFootage: 311 FNL  752 FWL
Log Types:MWD/LWD
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 97 ft., Weight: 42.1 , Citings Type: ACTUAL
Cement:Sacks: 64, Top: 0 ft., Bottom: 97 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1860 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 701, Top: 0 ft., Bottom: 1860 ft., Determination Method: VISU
Casing:String Type: OPEN HOLE, Hole Size: , Size: , Top: 1860 ft., Depth: 13851 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
Additional Cement:String Type: 1ST , Top: 6850 ft., Depth: , Bottom: 13100 ft., Sacks: , Method:
Additional Cement:String Type: OPEN HOLE , Top: 5350 ft., Depth: , Bottom: 6860 ft., Sacks: 290, Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4792 ft.
SHARON SPRINGS7298 ft.
NIOBRARA7428 ft.
  No formation data to display.

Sidetrack #02             Wellbore Classification: OW             Status: PR - 6/4/2018             Measured TD: 13610 ft.    Vertical TD: 7027 ft.

 Wellbore Data for Sidetrack #02Wellbore Classification: OW        PR - 6/4/2018
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:8/19/2019
Proposed Top PZ Location:Sec:29 Twp: 3N 65W Footage: 756 FSL  680 FWL
Bottom Hole Location:Sec:5 Twp: 2N 65W Footage: 339 FNL  712 FWL
Proposed Depth/Form:14027 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 240, Drill Unit: GWA
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 97 ft., Weight: 42.1 , Citings Type: PLANNED
Cement:Sacks: 40, Top: 0 ft., Bottom: 97 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1860 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 650, Top: 0 ft., Bottom: 1860 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 14017 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: 1648, Top: , Bottom: 14017 ft.
Wellbore Completed
Completion Date:8/16/2017
Spud Date:7/19/2017Spud Date Is:ACTUAL
Measured TD:13610 ft.Measured PB depth:13507 ft.
True Vertical TD:7027 ft.True Vertical PB depth:7030 ft.
Top PZ Location:Sec:29 Twp: 3N 65WFootage: 240 FSL  591 FWL
Bottom Hole Location:Sec:5 Twp: 2N 65WFootage: 300 FNL  712 FWL
Log Types:GR, CBL, CNL RUN ON RW 28C-5HZ (API #: 05-123-44617)
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 97 ft., Weight: 42 , Citings Type: ACTUAL
Cement:Sacks: 64, Top: 0 ft., Bottom: 97 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1860 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 701, Top: 0 ft., Bottom: 1860 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 13600 ft., Weight: 20 , Citings Type: ACTUAL
Cement:Sacks: 1420, Top: 780 ft., Bottom: 13610 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4792 ft.
SHARON SPRINGS7298 ft.
NIOBRARA7428 ft.

Formation NBRR                     Formation Classification:  OW                     Status:  PR - 6/4/2018                  Interval Top: 7780 ft.    Interval Bottom: 13498 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:5/7/2018Choke Size:
Formation Name:NIOBRARACommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:3/29/2018Treatment End Date:4/9/2018
Treatment Summary:PERF AND FRAC FROM 7780-13498. 48 BBL 15% HCL ACID, 995 BBL 7.5% HCL ACID, 8,668 BBL PUMP DOWN, 199,802 BBL SLICKWATER, 209,513 TOTAL FLUID, 1,694,761# 40/70 OTTAWA/ST. PETERS, 1,694,761# TOTAL SAND.
Total fluid used in treatment (bbls):209513Max pressure during treatment (psi):7872
Total gas used in treatment (mcf):0Fluid density (lbs/gal):8.30
Type Of gas:Number Of staged intervals:54
Total acid used in treatment (bbls):1043Min frac gradient (psi/ft):0.96
Recycled water used in treatment (bbls):2100Total flowback volume recovered (bbls):6616
Fresh water used in treatment (bbls):206370Disposition method For flowback:RECYCLE
Total proppant used (lbs):1694761Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:7240 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/4/2018Test Method:Flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 150
BBLS_OIL 228
BTU_GAS 1266
CALC_BBLS_H2O 150
CALC_BBLS_OIL 228
CALC_GOR 3355
CALC_MCF_GAS 765
CASING_PRESS 2708
GRAVITY_OIL 60
MCF_GAS 765
TUBING_PRESS 2005
Perforation Data:
Interval Top:7780 ft.# Of Holes:1296
Interval Bottom:13498 ft.Hole Size:0.44 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)8123
Total Gas Produced (MCF)88644
GOR10912
GOR DeterminationBOE
Average BOE per Day64.017
Average MCFE per Day371.317

 Federal Financial Assurance  i

 Tribal Well  i No
