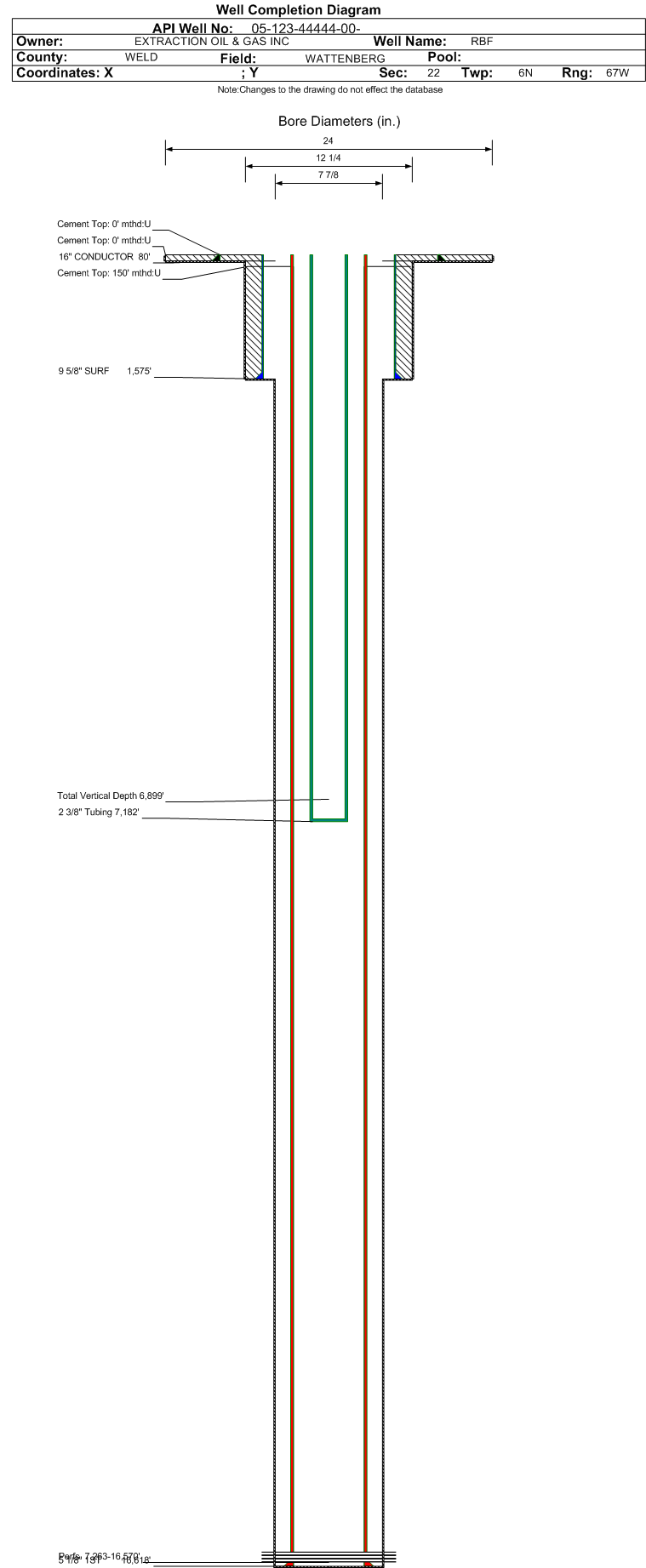

Wellbore #00 Wellbore Classification: OW Status: PR - 6/1/2025 Measured TD: 16630 ft. Vertical TD: 6899 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 6/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 3/16/2019 | | Proposed Top PZ Location: | Sec:22 Twp: 6N 67W | Footage: 2475 FNL 460 FEL | | Bottom Hole Location: | Sec:21 Twp: 6N 67W | Footage: 2475 FNL 460 FWL | | Proposed Depth/Form: | 16804 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 640, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 1500 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 16804 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 1600, Top: 1500 ft., Bottom: 16804 ft. |
| | |
| Wellbore Completed | | Completion Date: | 4/14/2017 | | Spud Date: | 3/30/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 16630 ft. | Measured PB depth: | 16614 ft. | | True Vertical TD: | 6899 ft. | True Vertical PB depth: | 6899 ft. | | Top PZ Location: | Sec:22 Twp: 6N 67W | Footage: 2499 FNL 507 FEL | | Bottom Hole Location: | Sec:21 Twp: 6N 67W | Footage: 2492 FNL 520 FWL | | Log Types: | CBL, Mud, MWD, (Triple Combo on 123-44440) | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1575 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 625, Top: 0 ft., Bottom: 1575 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.2 in., Top: 0 ft., Depth: 16618 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 2675, Top: 150 ft., Bottom: 16618 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3562 ft. | | N | N | | SUSSEX | 4102 ft. | | N | N | | SHANNON | 4653 ft. | | N | N | | SHARON SPRINGS | 7079 ft. | | N | N | | NIOBRARA | 7170 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 6/1/2025 Interval Top: 7263 ft. Interval Bottom: 16570 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 11/14/2017 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/22/2017 | Treatment End Date: | 8/12/2017 | | Treatment Summary: | 80 stage plug and perf;
439646 total bbls of fluid pumped: 438746 bbls fresh water and 900 bbls 15% HCL acid pumped;
32001540 lbs of 30/50 proppant pumped. | | Total fluid used in treatment (bbls): | 439646 | Max pressure during treatment (psi): | 9626 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.32 | | Type Of gas: | | Number Of staged intervals: | 80 | | Total acid used in treatment (bbls): | 900 | Min frac gradient (psi/ft): | 0.92 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 24462 | | Fresh water used in treatment (bbls): | 438746 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 32001540 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7182 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/15/2017 | Test Method: | | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1239 | | BBLS_OIL | 251 | | BTU_GAS | 1285 | | CALC_BBLS_H2O | 1239 | | CALC_BBLS_OIL | 251 | | CALC_GOR | 697 | | CALC_MCF_GAS | 175 | | CASING_PRESS | 900 | | GRAVITY_OIL | 43 | | MCF_GAS | 175 | | TUBING_PRESS | 1677 |
| | Perforation Data: | | Interval Top: | 7263 ft. | # Of Holes: | 2809 | | Interval Bottom: | 16570 ft. | Hole Size: | 0.44 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 3588 |
| Total Gas Produced (MCF) | 41130 |
| GOR | 11463 |
| GOR Determination | BOE |
| Average BOE per Day | 28.927 |
| Average MCFE per Day | 167.779 |
| Federal Financial Assurance | i | |
|
|
