Wellbore #00 Wellbore Classification: OW Status: AB - 6/18/2025 Measured TD: 15789 ft. Vertical TD: 7083 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW AB - 6/18/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 1/30/2019 | | Proposed Top PZ Location: | Sec:29 Twp: 6N 66W | Footage: 2278 FNL 2502 FWL | | Bottom Hole Location: | Sec:30 Twp: 6N 66W | Footage: 2303 FNL 150 FWL | | Proposed Depth/Form: | 15469 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407-1934 , Unit Acreage: 1039, Drill Unit: Sec 29:W2,Sec 30:All | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 65 , Citings Type: PLANNED | | Cement: | Sacks: 70, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1750 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 531, Top: 0 ft., Bottom: 1750 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 15811 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 1969, Top: 0 ft., Bottom: 15811 ft. |
| | |

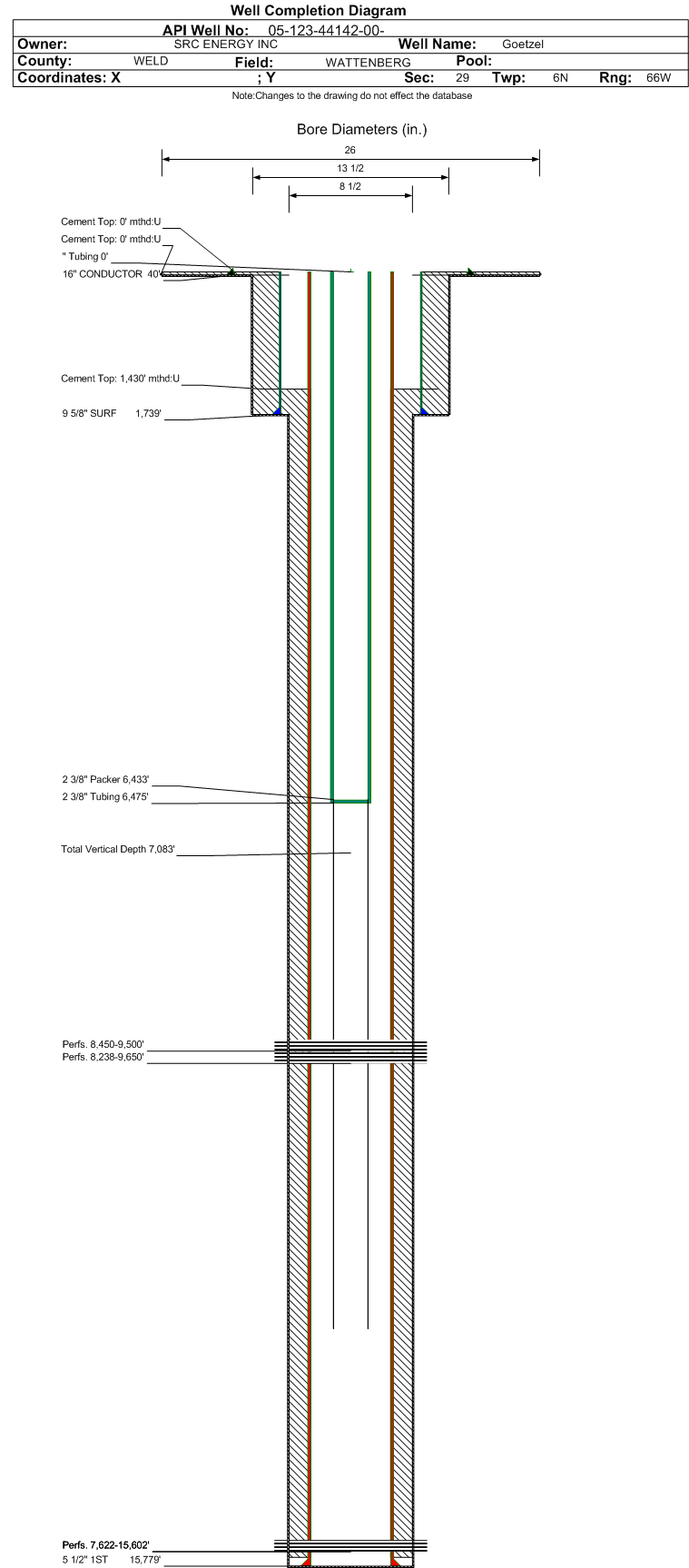

| Wellbore Completed | | Completion Date: | 5/23/2017 | | Spud Date: | 3/7/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 15789 ft. | Measured PB depth: | 15672 ft. | | True Vertical TD: | 7083 ft. | True Vertical PB depth: | 7083 ft. | | Top PZ Location: | Sec:29 Twp: 6N 66W | Footage: 2293 FNL 2425 FWL | | Bottom Hole Location: | Sec:30 Twp: 6N 66W | Footage: 2318 FNL 104 FWL | | Log Types: | MWD/LWD, CBL, Mud, (Resistivity on 123-44136). | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 40 ft., Weight: 55.0 , Citings Type: ACTUAL | | Cement: | Sacks: 35, Top: 0 ft., Bottom: 40 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1739 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 700, Top: 0 ft., Bottom: 1739 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 15759 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 2090, Top: 1430 ft., Bottom: 15759 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3520 ft. | | N | N | | SUSSEX | 4185 ft. | | N | N | | SHANNON | 4582 ft. | | N | N | | SHARON SPRINGS | 6728 ft. | | N | N | | NIOBRARA | 6764 ft. | | N | N | | FORT HAYS | 7051 ft. | | N | N | | CODELL | 7072 ft. | | N | N |
Formation FTHYS Formation Classification: OW Status: CM - 5/16/2018 Interval Top: 8450 ft. Interval Bottom: 9500 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 5/16/2018 | Treatment End Date: | N/A | | Treatment Summary: | Producing Intervals: 8450'-8610'; 9360'-9500'. | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 8450 ft. | # Of Holes: | 1440 | | Interval Bottom: | 9500 ft. | Hole Size: | 0.46 in. |
|
Formation NBRR Formation Classification: OW Status: CM - 5/16/2018 Interval Top: 8238 ft. Interval Bottom: 9650 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 5/16/2018 | Treatment End Date: | N/A | | Treatment Summary: | Producing Intervals: 8238'-8450'; 9500'-9650'. | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 8238 ft. | # Of Holes: | 1440 | | Interval Bottom: | 9650 ft. | Hole Size: | 0.46 in. |
|
Formation CODL Formation Classification: OW Status: CM - 5/16/2018 Interval Top: 7622 ft. Interval Bottom: 15602 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 5/16/2018 | Treatment End Date: | N/A | | Treatment Summary: | Producing Intervals: 7622'-8238'; 8610'-9360'; 9650'-15602'. | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7622 ft. | # Of Holes: | 1440 | | Interval Bottom: | 15602 ft. | Hole Size: | 0.46 in. |
|
Formation NBFHC Formation Classification: OW Status: AB - 6/18/2025 Interval Top: 7622 ft. Interval Bottom: 15602 ft.| Completed Information for Formation NIOBRARA-FT HAYS-CODELL | | 1st Production Date: | 11/27/2017 | Choke Size: | | | Formation Name: | NIOBRARA-FT HAYS-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/17/2018 | Treatment End Date: | 7/25/2017 | | Treatment Summary: | Plug and perf completion type. 40 stages;
199991 total bbls fluid pumped: 199429 bbl slickwater and gel, 562 bbl 15% HCL acid;
6135045 lbs. proppant (100+40/70+30/50 white sand) pumped. | | Total fluid used in treatment (bbls): | 199991 | Max pressure during treatment (psi): | 8505 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 40 | | Total acid used in treatment (bbls): | 562 | Min frac gradient (psi/ft): | 0.95 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 4120 | | Fresh water used in treatment (bbls): | 199429 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 6135045 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6475 ft. | | Tubing Packer Depth: | 6453 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/11/2017 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 58 | | BBLS_OIL | 377 | | BTU_GAS | 1330 | | CALC_BBLS_H2O | 58 | | CALC_BBLS_OIL | 377 | | CALC_GOR | 1411 | | CALC_MCF_GAS | 532 | | GRAVITY_OIL | 48 | | MCF_GAS | 532 | | TUBING_PRESS | 1540 |
| | Perforation Data: | | Interval Top: | 7622 ft. | # Of Holes: | 1440 | | Interval Bottom: | 15602 ft. | Hole Size: | 0.46 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 06/18/2025 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
