Wellbore #00 Wellbore Classification: OW Status: PR - 10/1/2022 Measured TD: 12378 ft. Vertical TD: 7241 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 10/1/2022 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 10/30/2018 | | Proposed Top PZ Location: | Sec:4 Twp: 2N 67W | Footage: 2342 FNL 269 FWL | | Bottom Hole Location: | Sec:33 Twp: 3N 67W | Footage: 2160 FSL 247 FWL | | Proposed Depth/Form: | 12449 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 320, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42.1 , Citings Type: PLANNED | | Cement: | Sacks: 30, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1800 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 710, Top: 0 ft., Bottom: 1800 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 12439 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 1455, Top: , Bottom: 12439 ft. |
| | |

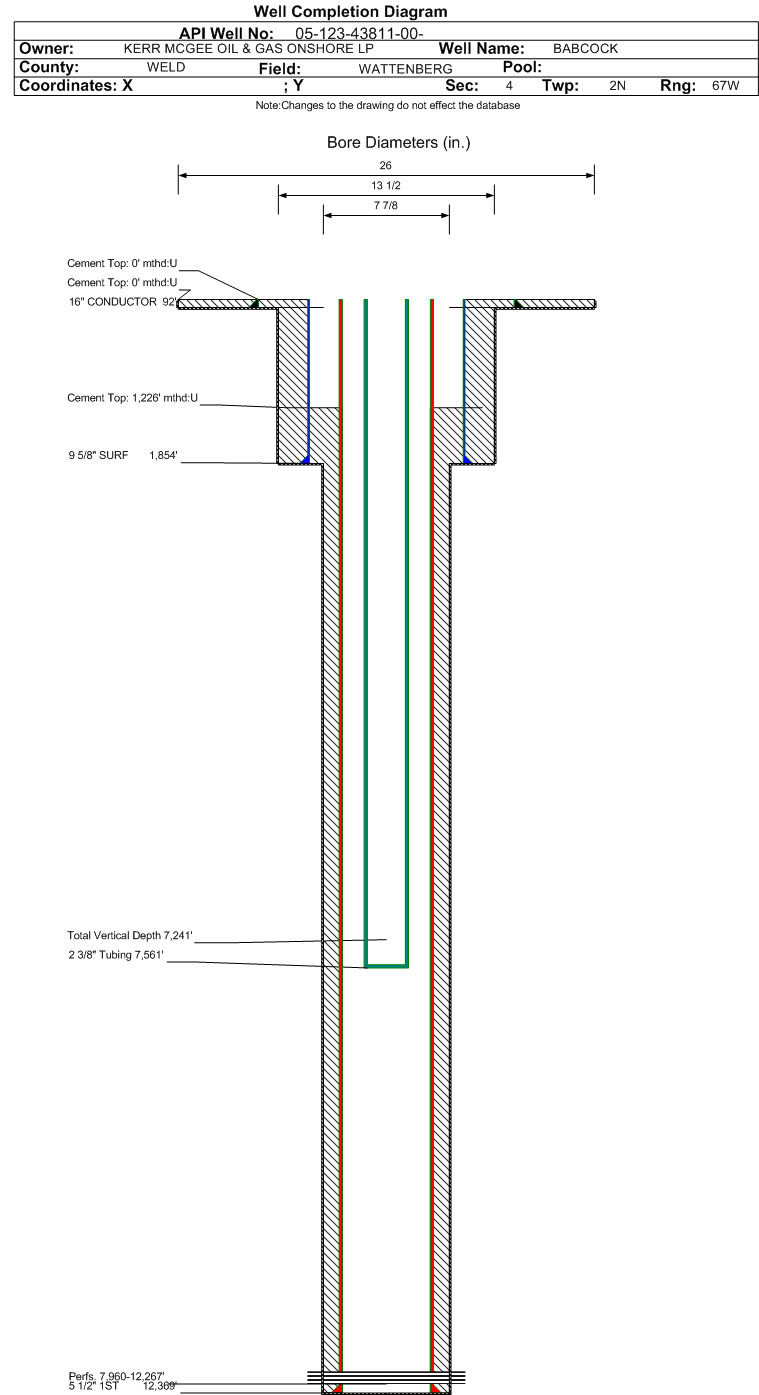

| Wellbore Completed | | Completion Date: | 6/30/2017 | | Spud Date: | 4/15/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 12378 ft. | Measured PB depth: | 12276 ft. | | True Vertical TD: | 7241 ft. | True Vertical PB depth: | 7246 ft. | | Top PZ Location: | Sec:4 Twp: 2N 67W | Footage: 2273 FNL 255 FWL | | Bottom Hole Location: | Sec:33 Twp: 3N 67W | Footage: 2124 FSL 242 FWL | | Log Types: | CBL, MWD, (CNL in 123-43809, RESISTIVITY in 123-19671) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 92 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 64, Top: 0 ft., Bottom: 92 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1854 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 724, Top: 0 ft., Bottom: 1854 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 12369 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 1240, Top: 1226 ft., Bottom: 12369 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4277 ft. | | | | | SHANNON | 4819 ft. | | | | | SHARON SPRINGS | 7448 ft. | | | | | NIOBRARA | 7574 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 10/1/2022 Interval Top: 7960 ft. Interval Bottom: 12267 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 12/20/2017 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/19/2017 | Treatment End Date: | 12/7/2017 | | Treatment Summary: | PERF AND FRAC FROM 7960-12267. 605 BBL 7.5% HCL ACID, 5,224 BBL PUMP DOWN, 147,926 BBL SLICKWATER, 153,755 TOTAL FLUID, 1,267,620# 40/70 OTTAWA/ST. PETERS, 1,267,620# TOTAL SAND. | | Total fluid used in treatment (bbls): | 153755 | Max pressure during treatment (psi): | 7908 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 40 | | Total acid used in treatment (bbls): | 605 | Min frac gradient (psi/ft): | 0.92 | | Recycled water used in treatment (bbls): | 1200 | Total flowback volume recovered (bbls): | 3806 | | Fresh water used in treatment (bbls): | 151950 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1267620 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7561 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/1/2018 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 356 | | BBLS_OIL | 548 | | BTU_GAS | 1282 | | CALC_BBLS_H2O | 356 | | CALC_BBLS_OIL | 548 | | CALC_GOR | 1097 | | CALC_MCF_GAS | 601 | | CASING_PRESS | 2019 | | GRAVITY_OIL | 54 | | MCF_GAS | 601 | | TUBING_PRESS | 1236 |
| | Perforation Data: | | Interval Top: | 7960 ft. | # Of Holes: | 984 | | Interval Bottom: | 12267 ft. | Hole Size: | 0.44 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1586 |
| Total Gas Produced (MCF) | 48523 |
| GOR | 30594 |
| GOR Determination | MCFE |
| Average BOE per Day | 27.186 |
| Average MCFE per Day | 157.695 |
| Federal Financial Assurance | i | |
|
|
