Wellbore #00 Wellbore Classification: OW Status: AB - 3/27/2024 Measured TD: 12485 ft. Vertical TD: 7397 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW AB - 3/27/2024 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 10/30/2018 | | Proposed Top PZ Location: | Sec:4 Twp: 2N 67W | Footage: 2044 FNL 664 FWL | | Bottom Hole Location: | Sec:33 Twp: 3N 67W | Footage: 2144 FSL 537 FWL | | Proposed Depth/Form: | 12514 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 160, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42.1 , Citings Type: PLANNED | | Cement: | Sacks: 30, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1800 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 710, Top: 0 ft., Bottom: 1800 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 12504 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 1463, Top: , Bottom: 12504 ft. |
| | |

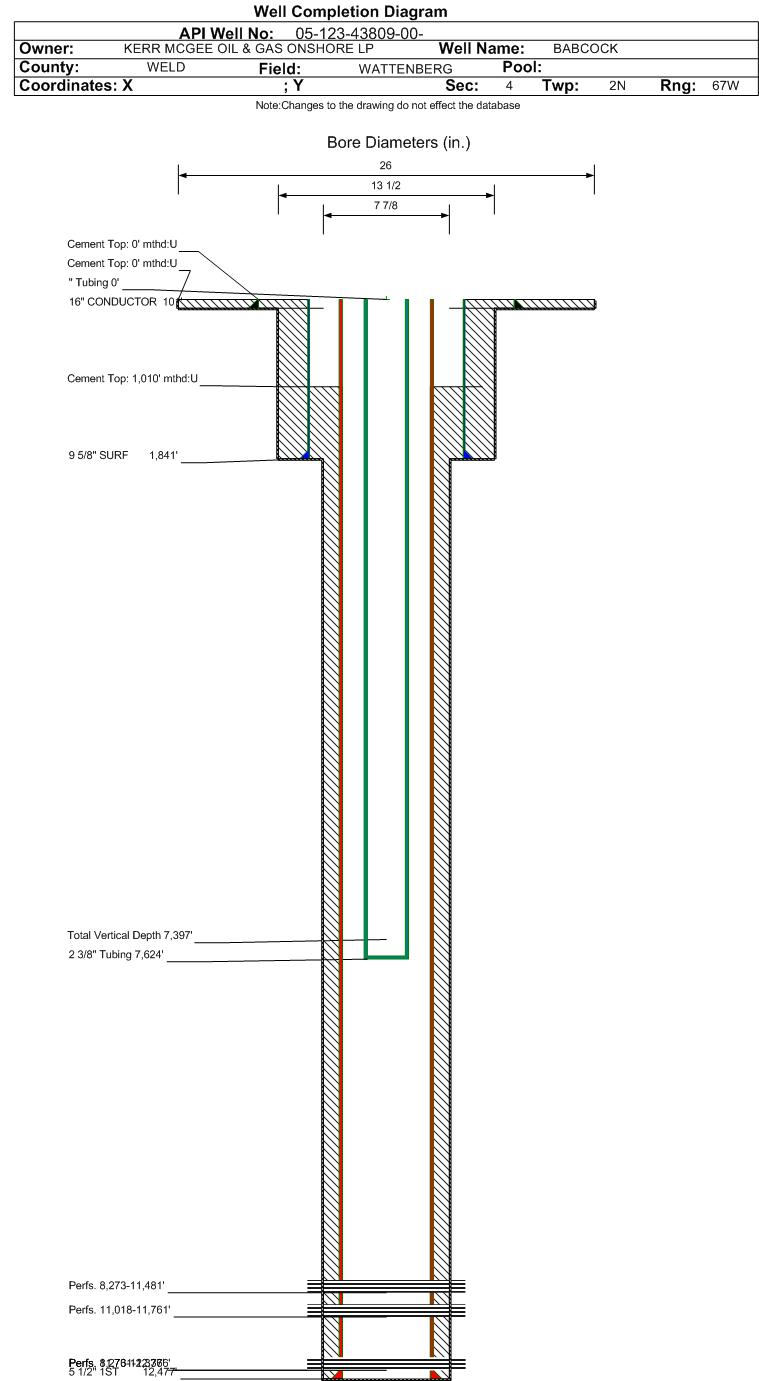

| Wellbore Completed | | Completion Date: | 6/26/2017 | | Spud Date: | 4/17/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 12485 ft. | Measured PB depth: | 12385 ft. | | True Vertical TD: | 7397 ft. | True Vertical PB depth: | 7402 ft. | | Top PZ Location: | Sec:4 Twp: 2N 67W | Footage: 2044 FNL 664 FWL | | Bottom Hole Location: | Sec:33 Twp: 3N 67W | Footage: 2144 FSL 537 FWL | | Log Types: | CBL, MWD, CNL, (RESISTIVITY in 123-19671) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 101 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 64, Top: 0 ft., Bottom: 101 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1841 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 719, Top: 0 ft., Bottom: 1841 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 12477 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 1250, Top: 950 ft., Bottom: 12477 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4277 ft. | | | | | SHANNON | 4819 ft. | | | | | SHARON SPRINGS | 7336 ft. | | | | | NIOBRARA | 7446 ft. | | | | | FORT HAYS | 7859 ft. | | | | | CODELL | 7938 ft. | | | | | CARLILE | 11750 ft. | | | |
Formation CARL Formation Classification: OW Status: CM - 3/1/2018 Interval Top: 11761 ft. Interval Bottom: 12376 ft.| Completed Information for Formation CARLILE | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CARLILE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 3/1/2018 | Treatment End Date: | N/A | | Treatment Summary: | Carlile: 11761-12376 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CARL. |
| | Perforation Data: | | Interval Top: | 11761 ft. | # Of Holes: | 168 | | Interval Bottom: | 12376 ft. | Hole Size: | 0.44 in. |
|
Formation FTHYS Formation Classification: OW Status: CM - 3/1/2018 Interval Top: 11018 ft. Interval Bottom: 11761 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/1/2018 | Treatment End Date: | N/A | | Treatment Summary: | Fort Hays: 11018-11066, 11481-11761 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 11018 ft. | # Of Holes: | 168 | | Interval Bottom: | 11761 ft. | Hole Size: | 0.44 in. |
|
Formation CLCDFH Formation Classification: OW Status: AB - 3/27/2024 Interval Top: 8273 ft. Interval Bottom: 12376 ft.| Completed Information for Formation CARLILE-CODELL-FORT HAYS | | 1st Production Date: | 12/21/2017 | Choke Size: | | | Formation Name: | CARLILE-CODELL-FORT HAYS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/19/2017 | Treatment End Date: | 12/3/2017 | | Treatment Summary: | PERF AND FRAC FROM 8273-12376. 29 BBL 7.5% HCL ACID, 1,213 BBL PUMP DOWN, 46,500 BBL SLICKWATER, 47,742 TOTAL FLUID, 1,408,550# 40/70 OTTAWA/ST. PETERS, 1,408,550# TOTAL SAND. | | Total fluid used in treatment (bbls): | 47742 | Max pressure during treatment (psi): | 7071 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 9 | | Total acid used in treatment (bbls): | 29 | Min frac gradient (psi/ft): | 0.90 | | Recycled water used in treatment (bbls): | 300 | Total flowback volume recovered (bbls): | 3806 | | Fresh water used in treatment (bbls): | 47413 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1408550 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7624 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/13/2018 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 145 | | BBLS_OIL | 223 | | BTU_GAS | 1282 | | CALC_BBLS_H2O | 145 | | CALC_BBLS_OIL | 223 | | CALC_GOR | 1193 | | CALC_MCF_GAS | 266 | | CASING_PRESS | 2032 | | GRAVITY_OIL | 54 | | MCF_GAS | 266 | | TUBING_PRESS | 1441 |
| | Perforation Data: | | Interval Top: | 8273 ft. | # Of Holes: | 168 | | Interval Bottom: | 12376 ft. | Hole Size: | 0.44 in. |
|
Formation CODL Formation Classification: OW Status: CM - 3/1/2018 Interval Top: 8273 ft. Interval Bottom: 11481 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/1/2018 | Treatment End Date: | N/A | | Treatment Summary: | Codell: 8273-11018, 11066-11481 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 8273 ft. | # Of Holes: | 168 | | Interval Bottom: | 11481 ft. | Hole Size: | 0.44 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 03/27/2024 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2029 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
