Wellbore #00 Wellbore Classification: OW Status: AB - 3/27/2024 Measured TD: 12356 ft. Vertical TD: 7378 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW AB - 3/27/2024 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 10/30/2018 | | Proposed Top PZ Location: | Sec:4 Twp: 2N 67W | Footage: 2342 FNL 2168 FWL | | Bottom Hole Location: | Sec:33 Twp: 3N 67W | Footage: 2176 FSL 2202 FWL | | Proposed Depth/Form: | 12401 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 320, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42.1 , Citings Type: PLANNED | | Cement: | Sacks: 30, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1800 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 710, Top: 0 ft., Bottom: 1800 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 12391 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 1449, Top: , Bottom: 12391 ft. |
| | |

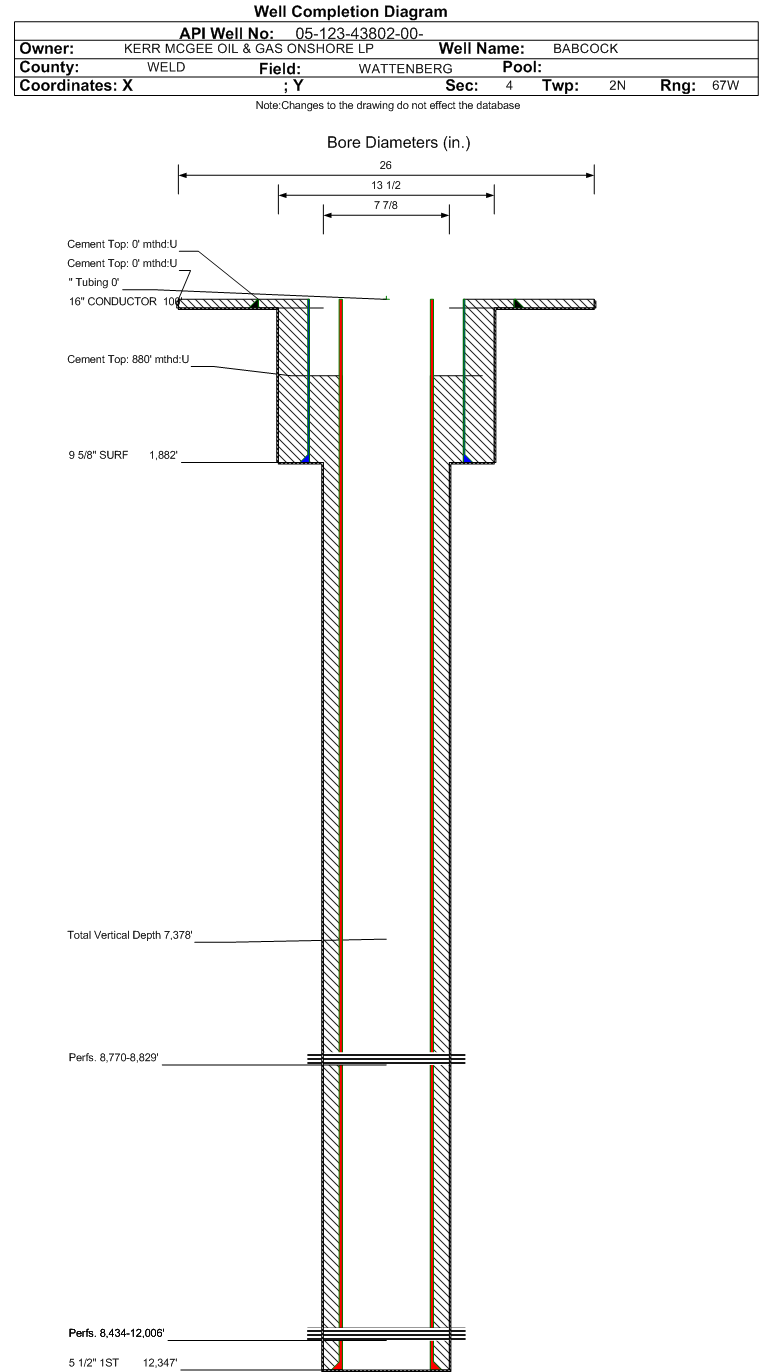

| Wellbore Completed | | Completion Date: | 5/25/2017 | | Spud Date: | 4/23/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 12356 ft. | Measured PB depth: | 12253 ft. | | True Vertical TD: | 7378 ft. | True Vertical PB depth: | 7377 ft. | | Top PZ Location: | Sec:4 Twp: 2N 67W | Footage: 1792 FNL 2232 FWL | | Bottom Hole Location: | Sec:33 Twp: 3N 67W | Footage: 2159 FSL 2242 FWL | | Log Types: | CBL, MWD, (CNL in 123-43809, RESISTIVITY in 123-19671) | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 100 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 64, Top: 0 ft., Bottom: 100 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1882 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 731, Top: 0 ft., Bottom: 1882 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 12347 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 1240, Top: 880 ft., Bottom: 12347 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4690 ft. | | | | | SHANNON | 4750 ft. | | | | | SHARON SPRINGS | 7203 ft. | | | | | NIOBRARA | 7326 ft. | | | | | FORT HAYS | 7766 ft. | | | | | CODELL | 7881 ft. | | | |
Formation FTHYS Formation Classification: OW Status: CM - 2/26/2018 Interval Top: 8770 ft. Interval Bottom: 8829 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 2/26/2018 | Treatment End Date: | N/A | | Treatment Summary: | Fort Hays: 8770-8829 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 8770 ft. | # Of Holes: | 168 | | Interval Bottom: | 8829 ft. | Hole Size: | 0.44 in. |
|
Formation CD-FH Formation Classification: OW Status: AB - 3/27/2024 Interval Top: 8434 ft. Interval Bottom: 12006 ft.| Completed Information for Formation CODELL-FORT HAYS | | 1st Production Date: | 12/21/2017 | Choke Size: | | | Formation Name: | CODELL-FORT HAYS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/26/2017 | Treatment End Date: | 11/15/2017 | | Treatment Summary: | PERF AND FRAC FROM 8434-12006. 133 BBL 7.5% HCL ACID, 65,254 BBL SLICKWATER, 1,388 BBL WATER, 66,776 TOTAL FLUID, 1,995,400# 40/70 OTTAWA/ST. PETERS, 1,995,400# TOTAL SAND. | | Total fluid used in treatment (bbls): | 66776 | Max pressure during treatment (psi): | 6946 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 9 | | Total acid used in treatment (bbls): | 133 | Min frac gradient (psi/ft): | 0.75 | | Recycled water used in treatment (bbls): | 300 | Total flowback volume recovered (bbls): | 3806 | | Fresh water used in treatment (bbls): | 66343 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1995400 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/30/2017 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 100 | | BBLS_OIL | 134 | | BTU_GAS | 1282 | | CALC_BBLS_H2O | 100 | | CALC_BBLS_OIL | 134 | | CALC_GOR | 1530 | | CALC_MCF_GAS | 205 | | CASING_PRESS | 1100 | | GRAVITY_OIL | 54 | | MCF_GAS | 205 |
| | Perforation Data: | | Interval Top: | 8434 ft. | # Of Holes: | 168 | | Interval Bottom: | 12006 ft. | Hole Size: | 0.44 in. |
|
Formation CODL Formation Classification: OW Status: CM - 2/26/2018 Interval Top: 8434 ft. Interval Bottom: 12006 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 2/26/2018 | Treatment End Date: | N/A | | Treatment Summary: | Codell: 8434-8770, 8829-12006 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | No | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 8434 ft. | # Of Holes: | 168 | | Interval Bottom: | 12006 ft. | Hole Size: | 0.44 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 03/27/2024 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2029 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
