Wellbore #00 Wellbore Classification: OW Status: PR - 11/1/2018 Measured TD: 11795 ft. Vertical TD: 7530 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 11/1/2018 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 9/11/2018 | | Proposed Top PZ Location: | Sec:14 Twp: 1N 67W | Footage: 857 FSL 492 FEL | | Bottom Hole Location: | Sec:14 Twp: 1N 67W | Footage: 50 FNL 486 FEL | | Proposed Depth/Form: | 12543 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 200, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42.1 , Citings Type: PLANNED | | Cement: | Sacks: 30, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1800 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 700, Top: 0 ft., Bottom: 1800 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 12533 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 1467, Top: , Bottom: 12533 ft. |
| | |

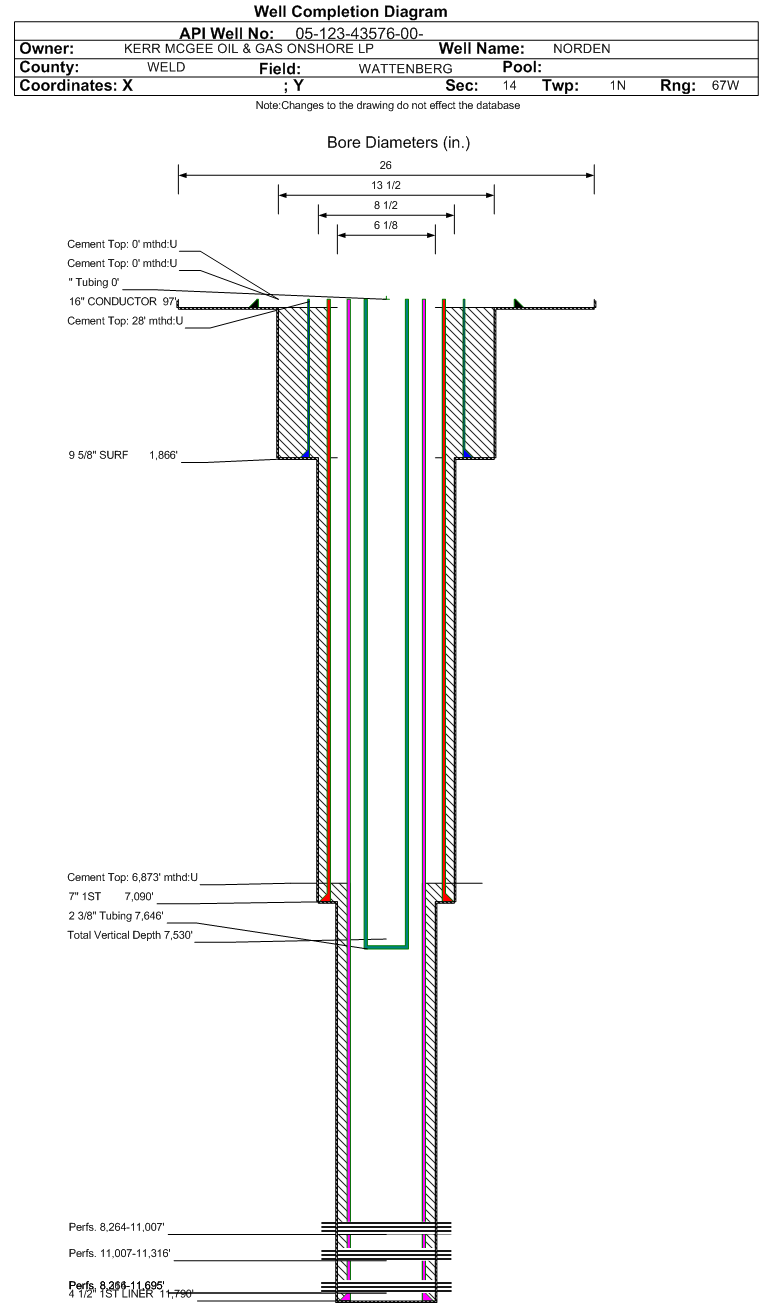

| Wellbore Completed | | Completion Date: | 8/31/2017 | | Spud Date: | 8/10/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 11795 ft. | Measured PB depth: | 11750 ft. | | True Vertical TD: | 7530 ft. | True Vertical PB depth: | 7530 ft. | | Top PZ Location: | Sec:14 Twp: 1N 67W | Footage: 1749 FSL 509 FEL | | Bottom Hole Location: | Sec:14 Twp: 1N 67W | Footage: 55 FNL 462 FEL | | Log Types: | MWD/GR, CALI, CBL, CNL | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 97 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 64, Top: 0 ft., Bottom: 97 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1866 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 667, Top: 0 ft., Bottom: 1866 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 7 in., Top: 0 ft., Depth: 7090 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 590, Top: 28 ft., Bottom: 7090 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 11790 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 310, Top: 6873 ft., Bottom: 11795 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4739 ft. | | | | | SHARON SPRINGS | 7538 ft. | | | | | NIOBRARA | 7588 ft. | | | | | FORT HAYS | 8247 ft. | | | | | CODELL | 8314 ft. | | | |
Formation NBRR Formation Classification: OW Status: CM - 4/3/2019 Interval Top: 11007 ft. Interval Bottom: 11316 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 4/3/2019 | Treatment End Date: | N/A | | Treatment Summary: | Niobrara: 11007-11316 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 11007 ft. | # Of Holes: | 204 | | Interval Bottom: | 11316 ft. | Hole Size: | 0.44 in. |
|
Formation CODL Formation Classification: OW Status: CM - 4/3/2019 Interval Top: 8316 ft. Interval Bottom: 11695 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 4/3/2019 | Treatment End Date: | N/A | | Treatment Summary: | Codell: 8316-10596, 10647-10787, 11316-11695 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 8316 ft. | # Of Holes: | 204 | | Interval Bottom: | 11695 ft. | Hole Size: | 0.44 in. |
|
Formation FTHYS Formation Classification: OW Status: CM - 4/3/2019 Interval Top: 8264 ft. Interval Bottom: 11007 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 4/3/2019 | Treatment End Date: | N/A | | Treatment Summary: | Fort Hays: 8264-8316, 10596-10647, 10787-11007 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 8264 ft. | # Of Holes: | 204 | | Interval Bottom: | 11007 ft. | Hole Size: | 0.44 in. |
|
Formation NBFHC Formation Classification: OW Status: PR - 12/2/2018 Interval Top: 8264 ft. Interval Bottom: 11695 ft.| Completed Information for Formation NIOBRARA-FT HAYS-CODELL | | 1st Production Date: | 11/2/2018 | Choke Size: | | | Formation Name: | NIOBRARA-FT HAYS-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/15/2018 | Treatment End Date: | 8/16/2018 | | Treatment Summary: | PERF AND FRAC FROM 8264-11695.
124 BBL 7.5% HCL ACID, 861 BBL PUMP DOWN, 53,079 BBL SLICKWATER, 54,063 TOTAL FLUID, 1,590,420# 40/70 OTTAWA/ST. PETERS, 1,590,420# TOTAL SAND. | | Total fluid used in treatment (bbls): | 54063 | Max pressure during treatment (psi): | 7791 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 11 | | Total acid used in treatment (bbls): | 124 | Min frac gradient (psi/ft): | 0.83 | | Recycled water used in treatment (bbls): | 150 | Total flowback volume recovered (bbls): | 5946 | | Fresh water used in treatment (bbls): | 53789 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1590420 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7646 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/2/2018 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 158 | | BBLS_OIL | 222 | | BTU_GAS | 1707 | | CALC_BBLS_H2O | 158 | | CALC_BBLS_OIL | 222 | | CALC_GOR | 1081 | | CALC_MCF_GAS | 240 | | CASING_PRESS | 2000 | | GRAVITY_OIL | 55 | | MCF_GAS | 240 | | TUBING_PRESS | 1700 |
| | Perforation Data: | | Interval Top: | 8264 ft. | # Of Holes: | 204 | | Interval Bottom: | 11695 ft. | Hole Size: | 0.44 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1109 |
| Total Gas Produced (MCF) | 28874 |
| GOR | 26036 |
| GOR Determination | MCFE |
| Average BOE per Day | 16.685 |
| Average MCFE per Day | 96.757 |
| Federal Financial Assurance | i | |
|
|
