COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-123-43121		Well Classification: OW	Status: WO - 5/2/2017
Well Name/No:	Horsetail #30H-1947 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	FUNDARE RESOURCES OPERATING COMPANY LLC - 10773 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	WO	Status Date	5/2/2017
FacilityID:	445584	LocationID:	445579
County:	WELD #123	Location:	SENE 30 10N57W 6
Field:	WILDCAT - #99999	Elevation:	4724 ft.
Basin:	DENVER (DJ) BASIN
Planned Location:	2328FNL 660 FEL	Lat/Long: 40.810644 / -103.786925	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 40.810644 / -103.786932	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: OW Status: WO - 5/2/2017 Measured TD: 13300 ft. Vertical TD: 5794 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: OW WO - 5/2/2017
Wellbore Permit			HORIZONTAL
Permit #:		Expiration Date:	4/21/2018
Proposed Top PZ Location:	Sec:30 Twp: 10N 57W	Footage: 1905 FNL 701 FEL
Bottom Hole Location:	Sec:19 Twp: 10N 57W	Footage: 89 FNL 599 FEL
Proposed Depth/Form:	13955 ft.
Surface Mineral Owner Same:	No
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: NBRR , Formation: NIOBRARA , Order: 535-369 , Unit Acreage: 960, Drill Unit: N/2 30, All 19
Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 65 , Citings Type: PLANNED
Cement:	Sacks: 179, Top: 0 ft., Bottom: 80 ft.
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1550 ft., Weight: 36 , Citings Type: PLANNED
Cement:	Sacks: 695, Top: 0 ft., Bottom: 1550 ft.
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 13955 ft., Weight: 17 , Citings Type: PLANNED
Cement:	Sacks: 2035, Top: 0 ft., Bottom: 13955 ft.

Wellbore Completed
Completion Date:	5/7/2017
Spud Date:	5/2/2017	Spud Date Is:	ACTUAL
Measured TD:	13300 ft.	Measured PB depth:	13241 ft.
True Vertical TD:	5794 ft.	True Vertical PB depth:	5796 ft.
Bottom Hole Location:	Sec:19 Twp: 10N 57W	Footage: 89 FNL 599 FEL
Log Types:	CBL, MUD LOG, MWD/LWD (CAL, NEU, IND, GR, COMP in API 123-43123)

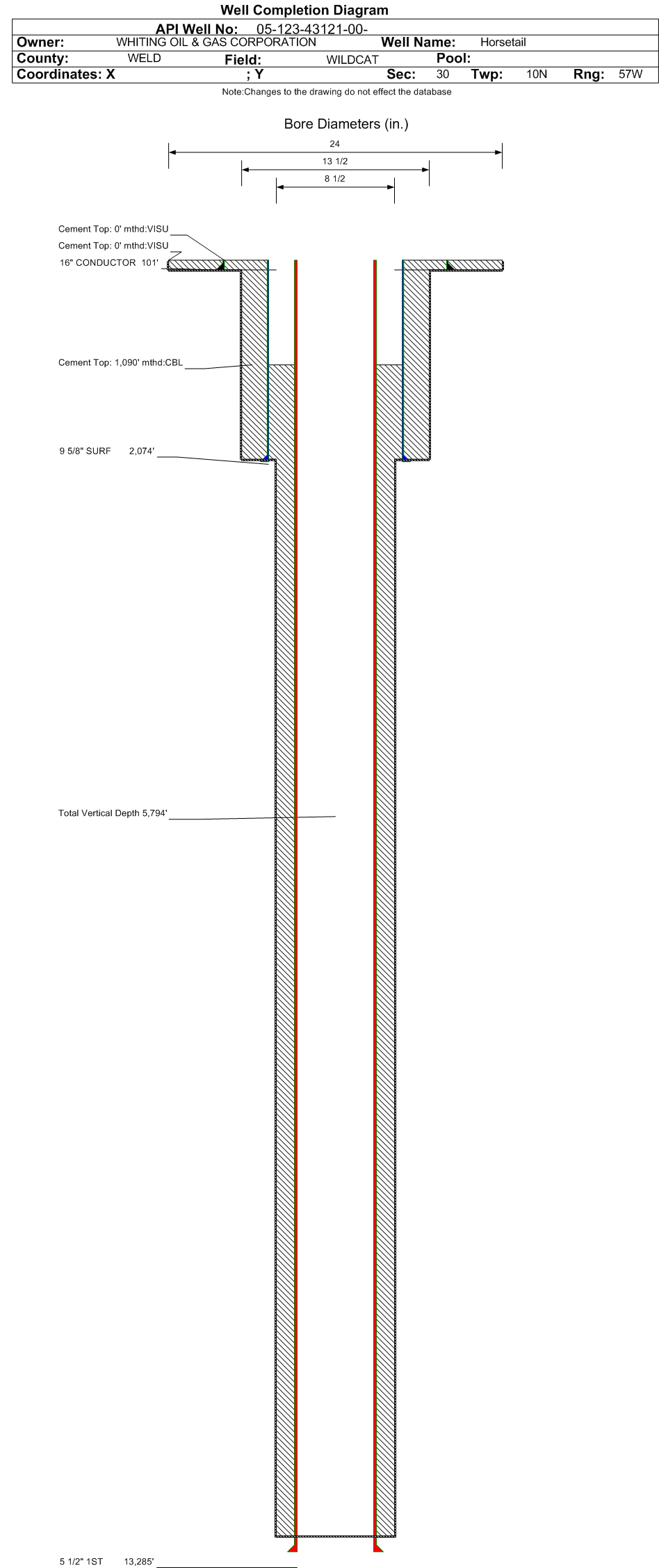

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 101 ft., Weight: 75 , Citings Type: ACTUAL
Cement:	Sacks: 153, Top: 0 ft., Bottom: 101 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2074 ft., Weight: 36 , Citings Type: ACTUAL
Cement:	Sacks: 615, Top: 0 ft., Bottom: 2074 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 13285 ft., Weight: 20 , Citings Type: ACTUAL
Cement:	Sacks: 2298, Top: 1090 ft., Bottom: 13300 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
PIERRE	1410 ft.		N	N
HYGIENE	3143 ft.		N	N
SUSSEX	3764 ft.		N	N
SHARON SPRINGS	5452 ft.		N	N
NIOBRARA	5461 ft.		N	N
FORT HAYS	5737 ft.		N	N
CODELL	5777 ft.		N	N
No formation data to display.

All Designations		Date
Primary Well Designation: Noticed Inactive i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	Y	Noticed Date 11/30/2024
Defined Inactive (WO )	Y	Defined Inactive 05/02/2017
Low Producing	N

September 2024 - August 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	0
Total Gas Produced (MCF)	0
GOR
GOR Determination
Average BOE per Day	0.000
Average MCFE per Day	0.000

Federal Financial Assurance

Tribal Well
