Wellbore #00 Wellbore Classification: OW Status: PR - 5/1/2021 Measured TD: 11965 ft. Vertical TD: 7475 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 5/1/2021 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 4/21/2018 | | Proposed Top PZ Location: | Sec:32 Twp: 2N 68W | Footage: 780 FSL 752 FEL | | Bottom Hole Location: | Sec:32 Twp: 2N 68W | Footage: 497 FNL 806 FEL | | Proposed Depth/Form: | 11908 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 160, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 22 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 30 , Citings Type: PLANNED | | Cement: | Sacks: 80, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1694 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 738, Top: 0 ft., Bottom: 1694 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 12046 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 1953, Top: , Bottom: 12046 ft. |
| | |

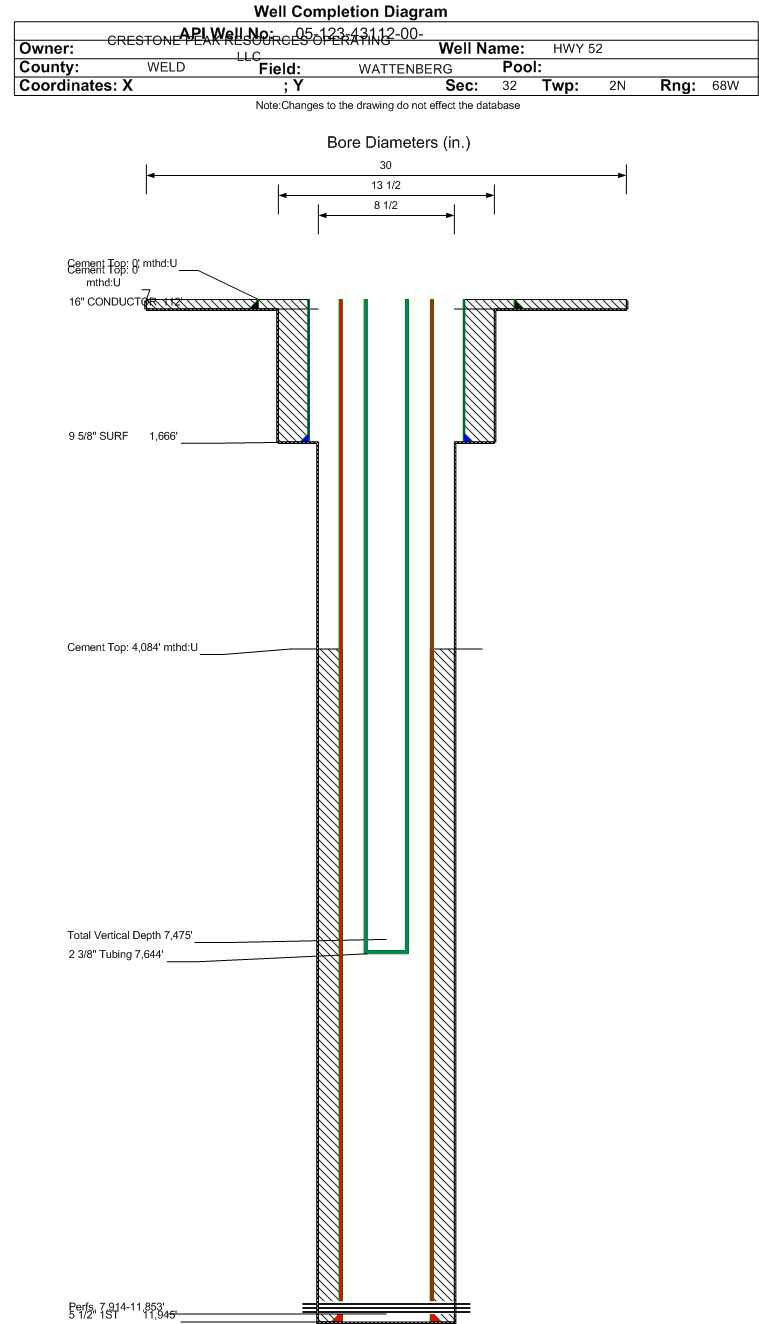

| Wellbore Completed | | Completion Date: | 8/21/2017 | | Spud Date: | 3/10/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 11965 ft. | Measured PB depth: | 11921 ft. | | True Vertical TD: | 7475 ft. | True Vertical PB depth: | 7474 ft. | | Top PZ Location: | Sec:32 Twp: 2N 68W | Footage: 780 FSL 752 FEL | | Bottom Hole Location: | Sec:32 Twp: 2N 68W | Footage: 497 FNL 806 FEL | | Log Types: | Mud Log, MWD/LWD, CBL. (Resistivity in 123-38246) | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 16 in., Top: 0 ft., Depth: 112 ft., Weight: 65 , Citings Type: ACTUAL | | Cement: | Sacks: 190, Top: 0 ft., Bottom: 112 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1666 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 637, Top: 0 ft., Bottom: 1666 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 11945 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 1420, Top: 4084 ft., Bottom: 11945 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4491 ft. | | | | | SHANNON | 5064 ft. | | | | | TEEPEE BUTTES | 6615 ft. | | | | | SHARON SPRINGS | 7536 ft. | | | | | NIOBRARA | 7774 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 5/1/2021 Interval Top: 7914 ft. Interval Bottom: 11853 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 9/3/2018 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 2/24/2018 | Treatment End Date: | 3/8/2018 | | Treatment Summary: | 156411 bbls water, 20 bbls produced brine water, 132 bbls additives (FRP-4K, ACI-97 and ASF-67) and 35 bbl HCL & Spearpoint in a 23 stage frac with 3,585,300 lbs of silica quartz proppant and 1800 lbs of Calcium Chloride
| | Total fluid used in treatment (bbls): | 156598 | Max pressure during treatment (psi): | 9041 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 23 | | Total acid used in treatment (bbls): | 35 | Min frac gradient (psi/ft): | 0.88 | | Recycled water used in treatment (bbls): | 20 | Total flowback volume recovered (bbls): | 13453 | | Fresh water used in treatment (bbls): | 156543 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 3585300 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7644 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/3/2018 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 60 | | BBLS_OIL | 277 | | BTU_GAS | 1233 | | CALC_BBLS_H2O | 60 | | CALC_BBLS_OIL | 277 | | CALC_GOR | 3191 | | CALC_MCF_GAS | 884 | | CASING_PRESS | 2023 | | GRAVITY_OIL | 45 | | MCF_GAS | 884 | | TUBING_PRESS | 1434 |
| | Perforation Data: | | Interval Top: | 7914 ft. | # Of Holes: | 529 | | Interval Bottom: | 11853 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2736 |
| Total Gas Produced (MCF) | 84678 |
| GOR | 30949 |
| GOR Determination | MCFE |
| Average BOE per Day | 47.478 |
| Average MCFE per Day | 275.396 |
| Federal Financial Assurance | i | |
|
|
