Wellbore #00 Wellbore Classification: OW Status: PR - 12/1/2025 Measured TD: 12162 ft. Vertical TD: 7682 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 12/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 4/21/2018 | | Proposed Top PZ Location: | Sec:32 Twp: 2N 68W | Footage: 780 FSL 852 FEL | | Bottom Hole Location: | Sec:32 Twp: 2N 68W | Footage: 491 FNL 928 FEL | | Proposed Depth/Form: | 11878 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NFCC , Formation: NIOBRARA-FORT HAYS-CODELL-CARLILE , Order: , Unit Acreage: 320, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 22 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 30 , Citings Type: PLANNED | | Cement: | Sacks: 80, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1691 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 737, Top: 0 ft., Bottom: 1691 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 12254 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 1988, Top: , Bottom: 12254 ft. |
| | |

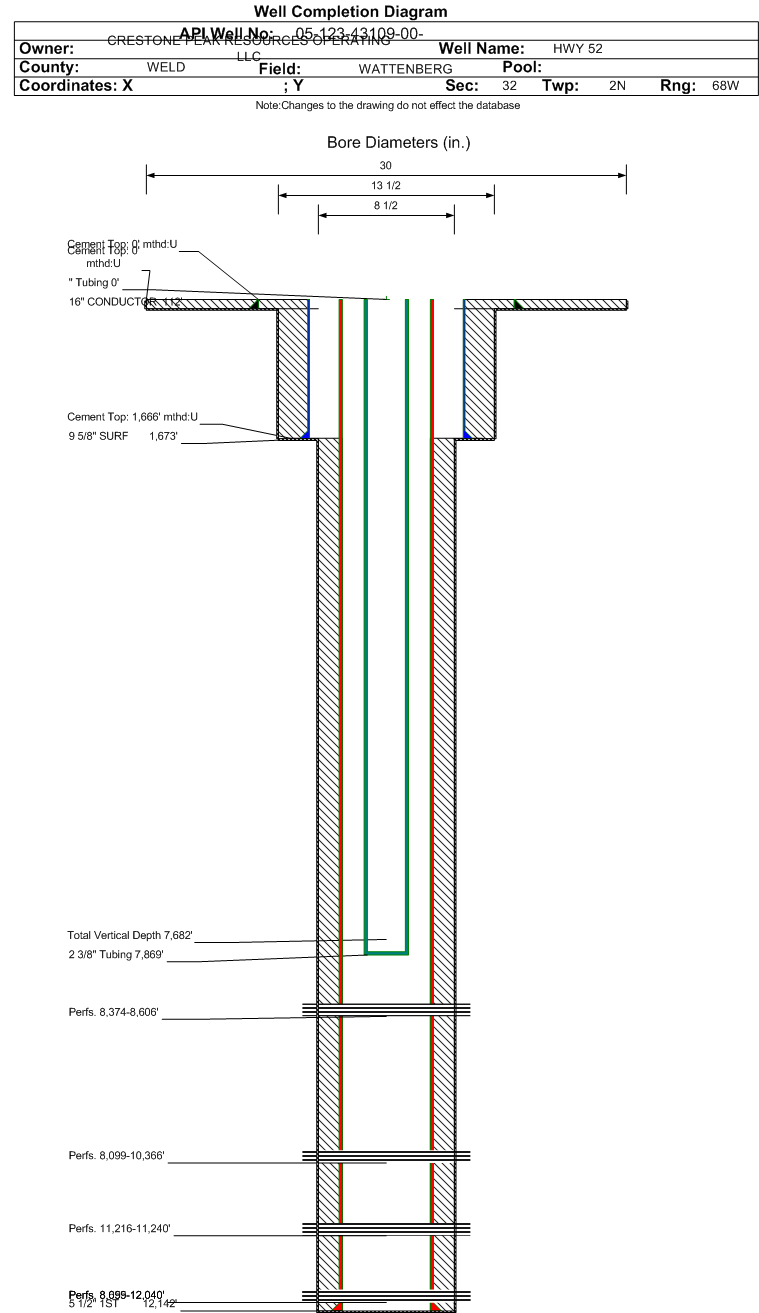

| Wellbore Completed | | Completion Date: | 8/16/2017 | | Spud Date: | 3/11/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 12162 ft. | Measured PB depth: | 12103 ft. | | True Vertical TD: | 7682 ft. | True Vertical PB depth: | 7683 ft. | | Top PZ Location: | Sec:32 Twp: 2N 68W | Footage: 780 FSL 852 FEL | | Bottom Hole Location: | Sec:32 Twp: 2N 68W | Footage: 491 FNL 928 FEL | | Log Types: | Mud Log, MWD/LWD, CBL. (Resistivity in123-38246) | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 16 in., Top: 0 ft., Depth: 112 ft., Weight: 65 , Citings Type: ACTUAL | | Cement: | Sacks: 190, Top: 0 ft., Bottom: 112 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1673 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 638, Top: 0 ft., Bottom: 1673 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 12142 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 1446, Top: 1666 ft., Bottom: 12162 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4505 ft. | | | | | SHANNON | 5045 ft. | | | | | TEEPEE BUTTES | 6603 ft. | | | | | SHARON SPRINGS | 7450 ft. | | | | | NIOBRARA | 7571 ft. | | | | | FORT HAYS | 8167 ft. | | | | | CODELL | 8628 ft. | | | | | CARLILE | 10945 ft. | | | |
Formation CARL Formation Classification: OW Status: CM - 2/1/2019 Interval Top: 11216 ft. Interval Bottom: 11240 ft.| Completed Information for Formation CARLILE | | 1st Production Date: | 9/3/2018 | Choke Size: | | | Formation Name: | CARLILE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CARL. |
| | Perforation Data: | | Interval Top: | 11216 ft. | # Of Holes: | 349 | | Interval Bottom: | 11240 ft. | Hole Size: | 0.42 in. |
|
Formation CODL Formation Classification: OW Status: CM - 2/1/2019 Interval Top: 8655 ft. Interval Bottom: 12040 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 9/3/2018 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 2/1/2019 | Treatment End Date: | N/A | | Treatment Summary: | 8655'-10291', 10500'-10241'-12040' | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 8655 ft. | # Of Holes: | 349 | | Interval Bottom: | 12040 ft. | Hole Size: | 0.42 in. |
|
Formation FTHYS Formation Classification: OW Status: CM - 2/1/2019 Interval Top: 8374 ft. Interval Bottom: 8606 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | 9/3/2018 | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 8374 ft. | # Of Holes: | 349 | | Interval Bottom: | 8606 ft. | Hole Size: | 0.42 in. |
|
Formation NBRR Formation Classification: OW Status: CM - 2/1/2019 Interval Top: 8099 ft. Interval Bottom: 10366 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 9/3/2018 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 2/1/2019 | Treatment End Date: | N/A | | Treatment Summary: | 8099'-8100', 10325'-10366' | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 8099 ft. | # Of Holes: | 349 | | Interval Bottom: | 10366 ft. | Hole Size: | 0.42 in. |
|
Formation NFCC Formation Classification: OW Status: PR - 12/1/2025 Interval Top: 8099 ft. Interval Bottom: 12040 ft.| Completed Information for Formation NIOBRARA-FORT HAYS-CODELL-CARLILE | | 1st Production Date: | 9/3/2018 | Choke Size: | | | Formation Name: | NIOBRARA-FORT HAYS-CODELL-CARLILE | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/27/2018 | Treatment End Date: | 3/29/2018 | | Treatment Summary: | 94959 bbls water and 80 bbls additives (FRP-4CS and FRP-K) in a 16 stage frac with 2,470,150 lbs of silica quartz proppant
| | Total fluid used in treatment (bbls): | 95039 | Max pressure during treatment (psi): | 8749 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 16 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.91 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 13613 | | Fresh water used in treatment (bbls): | 95039 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 2470150 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7869 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/3/2018 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 102 | | BBLS_OIL | 268 | | BTU_GAS | 1250 | | CALC_BBLS_H2O | 102 | | CALC_BBLS_OIL | 268 | | CALC_GOR | 1709 | | CALC_MCF_GAS | 458 | | CASING_PRESS | 2096 | | GRAVITY_OIL | 45 | | MCF_GAS | 458 | | TUBING_PRESS | 1129 |
| | Perforation Data: | | Interval Top: | 8099 ft. | # Of Holes: | 349 | | Interval Bottom: | 12040 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
12/2024 - 11/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 19 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.008 |
| Average MCFE per Day | 0.052 |
| Federal Financial Assurance | i | |
|
|
