COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-43088		Well Classification: OW Status: SI - 5/1/2025
Well Name/No:Schaumberg #17F-202ST
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date5/1/2025
FacilityID:445534LocationID:445225
County:WELD #123Location:SWNW 17 5N64W 6
Field:WATTENBERG - #90750Elevation:4620 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1624FNL  935 FWLLat/Long: 40.401999 / -104.580116Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.402002 / -104.579631Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #01
Start Date: 1/17/2017
End Date: 1/25/2017
Reported: 3/13/2017
Originally Reported: 2/2/2017
Days to report: 47
Days to report: 8
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

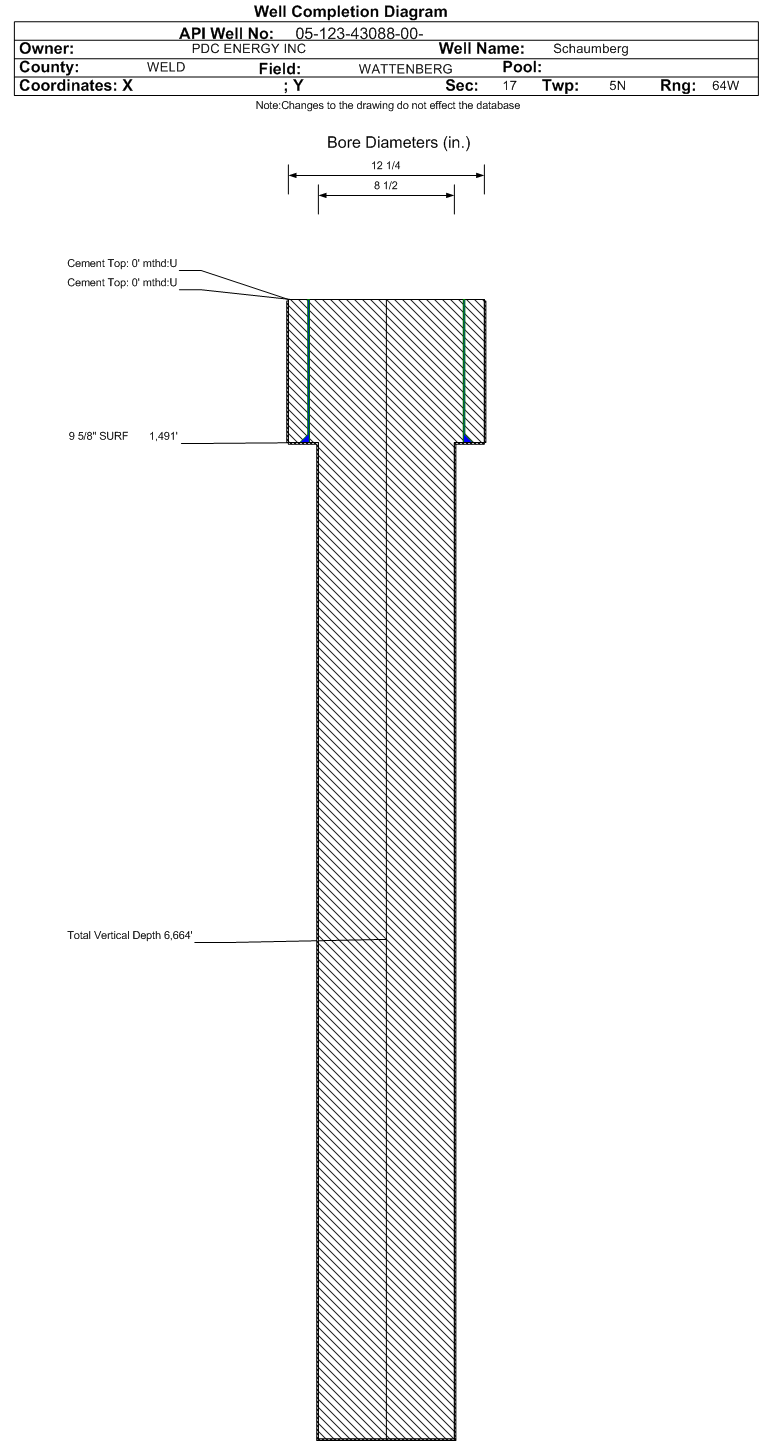

Wellbore #00             Wellbore Classification: OW             Status: AB - 5/15/2016             Measured TD: 11867 ft.    Vertical TD: 6664 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 5/15/2016
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:4/19/2018
Proposed Top PZ Location:Sec:17 Twp: 5N 64W Footage: 1505 FNL  365 FEL
Bottom Hole Location:Sec:17 Twp: 5N 64W Footage: 1505 FNL  365 FEL
Proposed Depth/Form:11987 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 400, Drill Unit: GWA
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1450 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 920, Top: 0 ft., Bottom: 1450 ft.
Casing:String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 11987 ft., Weight: 20 , Citings Type: PLANNED
Cement:Sacks: 2035, Top: 0 ft., Bottom: 11987 ft.
Wellbore Completed
Completion Date:5/19/2016
Spud Date:5/18/2016Spud Date Is:ACTUAL
Measured TD:11867 ft.Measured PB depth:11867 ft.
True Vertical TD:6664 ft.True Vertical PB depth:6664 ft.
Bottom Hole Location:Sec:17 Twp: 5N 64WFootage: 1505 FNL  365 FEL
Log Types:MWD, DIL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1491 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 730, Top: 0 ft., Bottom: 1491 ft., Determination Method: VISU
Casing:String Type: OPEN HOLE, Hole Size: 8.5 in., Size: , Top: 1491 ft., Depth: 11867 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
Additional Cement:String Type: OPEN HOLE , Top: 5240 ft., Depth: 5933 ft., Bottom: 5933 ft., Sacks: 220, Method: 1 INCH
FormationInterval TopLog BottomCoredDSTs
PARKMAN3642 ft.
SUSSEX4383 ft.
SHANNON5130 ft.
SHARON SPRINGS6678 ft.
NIOBRARA6882 ft.
  No formation data to display.

Sidetrack #01             Wellbore Classification: OW             Status: SI - 5/1/2025             Measured TD: 11810 ft.    Vertical TD: 6671 ft.

 Wellbore Data for Sidetrack #01Wellbore Classification: OW        SI - 5/1/2025
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:5/26/2018
Proposed Top PZ Location:Sec:17 Twp: 5N 64W Footage: 1500 FNL  66 FWL
Bottom Hole Location:Sec:17 Twp: 5N 64W Footage: 1481 FNL  556 FEL
Proposed Depth/Form:12036 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 400, Drill Unit: GWA
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1450 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 920, Top: 0 ft., Bottom: 1450 ft.
Casing:String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 12036 ft., Weight: 20 , Citings Type: PLANNED
Cement:Sacks: 2035, Top: 0 ft., Bottom: 12036 ft.
Wellbore Completed
Completion Date:6/4/2016
Spud Date:5/18/2016Spud Date Is:ACTUAL
Measured TD:11810 ft.Measured PB depth:11739 ft.
True Vertical TD:6671 ft.True Vertical PB depth:6677 ft.
Top PZ Location:Sec:17 Twp: 5N 64WFootage: 1500 FNL  66 FWL
Bottom Hole Location:Sec:17 Twp: 5N 64WFootage: 1481 FNL  556 FEL
Log Types:CBL, MWD (DIL in 123-43088-00)
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1491 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 730, Top: 0 ft., Bottom: 1491 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 11754 ft., Weight: 20 , Citings Type: ACTUAL
Cement:Sacks: 2090, Top: 0 ft., Bottom: 11754 ft., Determination Method: VISU
FormationInterval TopLog BottomCoredDSTs
PARKMAN3642 ft.
SUSSEX4383 ft.
SHANNON5130 ft.
SHARON SPRINGS6643 ft.
NIOBRARA6800 ft.

Formation NBRR                     Formation Classification:  OW                     Status:  SI - 5/1/2025                  Interval Top: 7122 ft.    Interval Bottom: 11697 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:3/2/2017Choke Size:
Formation Name:NIOBRARACommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:1/17/2017Treatment End Date:1/25/2017
Treatment Summary:20 Stage Plug and Perf, Perf'd from 7122-11542, 3 toe sleeves from 11603-11697 Total Fluid: 99,942 bbls Gel Fluid: 59,545 bbls Slickwater Fluid: 39,536 bbls 15% HCl Acid: 861 bbls Total Proppant: 5,072,240 lbs Silica Proppant: 5,072,240 lbs Method for determining flowback: measuring flowback tank volumes
Total fluid used in treatment (bbls):99942Max pressure during treatment (psi):4530
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.34
Type Of gas:Number Of staged intervals:20
Total acid used in treatment (bbls):861Min frac gradient (psi/ft):1.02
Recycled water used in treatment (bbls):0Total flowback volume recovered (bbls):3399
Fresh water used in treatment (bbls):99081Disposition method For flowback:DISPOSAL
Total proppant used (lbs):5072240Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:6924 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/8/2017Test Method:Flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 228
BBLS_OIL 341
BTU_GAS 1322
CALC_BBLS_H2O 228
CALC_BBLS_OIL 341
CALC_GOR 3000
CALC_MCF_GAS 1023
CASING_PRESS 2708
GRAVITY_OIL 50
MCF_GAS 1023
TUBING_PRESS 1843
Perforation Data:
Interval Top:7122 ft.# Of Holes:1224
Interval Bottom:11697 ft.Hole Size:0.42 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)377
Total Gas Produced (MCF)1686
GOR4472
GOR DeterminationBOE
Average BOE per Day1.915
Average MCFE per Day11.105

 Federal Financial Assurance  i

 Tribal Well  i No
