COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-123-43028		Well Classification: OW	Status: WO - 12/12/2016
Well Name/No:	Horsetail #30G-3144 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	FUNDARE RESOURCES OPERATING COMPANY LLC - 10773 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	WO	Status Date	12/12/2016
FacilityID:	445349	LocationID:	445362
County:	WELD #123	Location:	SWNE 30 10N57W 6
Field:	WILDCAT - #99999	Elevation:	4740 ft.
Basin:	DENVER (DJ) BASIN
Planned Location:	2375FNL 1920 FEL	Lat/Long: 40.810528 / -103.791475	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 40.810527 / -103.791479	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: OW Status: WO - 12/12/2016 Measured TD: 13790 ft. Vertical TD: 5697 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: OW WO - 12/12/2016
Wellbore Permit			HORIZONTAL
Permit #:		Expiration Date:	3/31/2018
Proposed Top PZ Location:	Sec:30 Twp: 10N 57W	Footage: 2367 FSL 1434 FEL
Bottom Hole Location:	Sec:31 Twp: 10N 57W	Footage: 120 FSL 1691 FEL
Proposed Depth/Form:	13836 ft.
Surface Mineral Owner Same:	No
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: NBRR , Formation: NIOBRARA , Order: 535-508 , Unit Acreage: 960, Drill Unit: S/2 30, All 31
Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 65 , Citings Type: PLANNED
Cement:	Sacks: 179, Top: 0 ft., Bottom: 80 ft.
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1520 ft., Weight: 36 , Citings Type: PLANNED
Cement:	Sacks: 645, Top: 0 ft., Bottom: 1520 ft.
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 13836 ft., Weight: 17 , Citings Type: PLANNED
Cement:	Sacks: 2019, Top: 0 ft., Bottom: 13836 ft.

Wellbore Completed
Completion Date:	12/17/2016
Spud Date:	12/13/2016	Spud Date Is:	ACTUAL
Measured TD:	13790 ft.	Measured PB depth:	13729 ft.
True Vertical TD:	5697 ft.	True Vertical PB depth:	5699 ft.
Bottom Hole Location:	Sec:31 Twp: 10N 57W	Footage: 120 FSL 1691 FEL
Log Types:	Mud, LWD, CBL

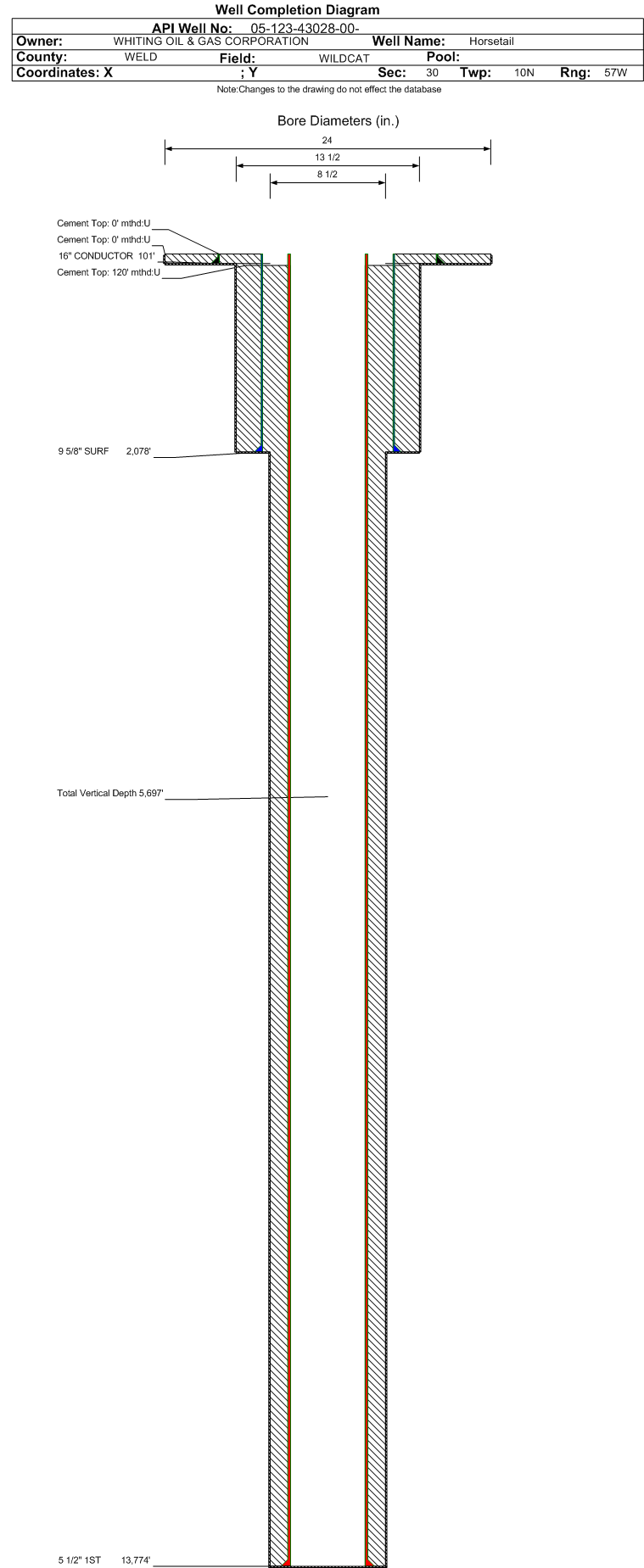

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 101 ft., Weight: 65 , Citings Type: ACTUAL
Cement:	Sacks: , Top: 0 ft., Bottom: 101 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2078 ft., Weight: 36 , Citings Type: ACTUAL
Cement:	Sacks: 670, Top: 0 ft., Bottom: 2078 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 13774 ft., Weight: 20 , Citings Type: ACTUAL
Cement:	Sacks: 2320, Top: 120 ft., Bottom: 13774 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
PIERRE	1400 ft.		N	N
HYGIENE	3133 ft.		N	N
SHARON SPRINGS	5482 ft.		N	N
NIOBRARA	5485 ft.		N	N
No formation data to display.

All Designations		Date
Primary Well Designation: Noticed Inactive i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	Y	Noticed Date 11/30/2024
Defined Inactive (WO )	Y	Defined Inactive 12/12/2016
Low Producing	N

September 2024 - August 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	0
Total Gas Produced (MCF)	0
GOR
GOR Determination
Average BOE per Day	0.000
Average MCFE per Day	0.000

Federal Financial Assurance

Tribal Well
