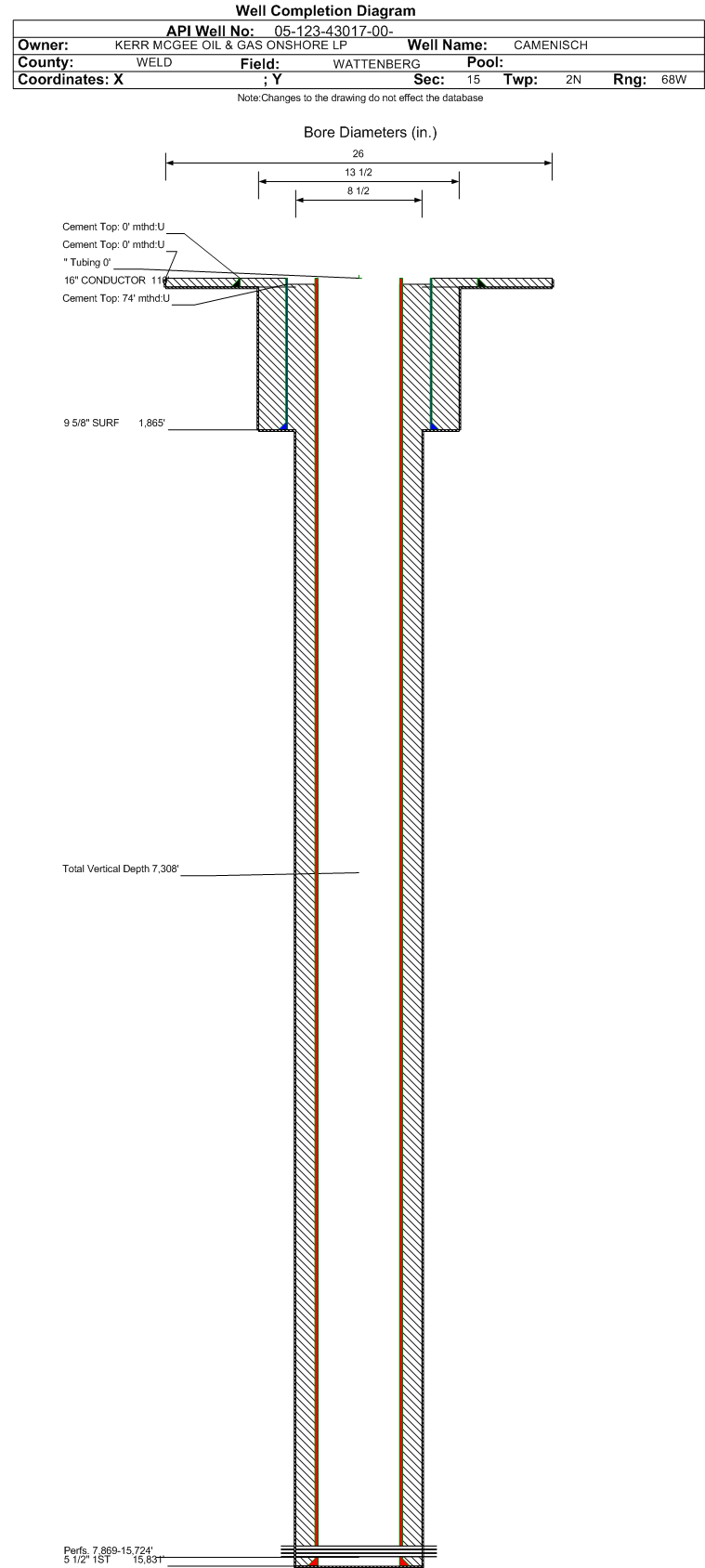

Wellbore #00 Wellbore Classification: OW Status: PR - 10/20/2017 Measured TD: 15845 ft. Vertical TD: 7308 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 10/20/2017 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 3/30/2018 | | Proposed Top PZ Location: | Sec:15 Twp: 2N 68W | Footage: 2184 FNL 1743 FEL | | Bottom Hole Location: | Sec:22 Twp: 2N 68W | Footage: 461 FSL 1729 FEL | | Proposed Depth/Form: | 15705 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 460, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1800 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 710, Top: 0 ft., Bottom: 1800 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 15695 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 1853, Top: , Bottom: 15695 ft. |
| | |
| Wellbore Completed | | Completion Date: | 4/11/2017 | | Spud Date: | 3/7/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 15845 ft. | Measured PB depth: | 15741 ft. | | True Vertical TD: | 7308 ft. | True Vertical PB depth: | 7310 ft. | | Top PZ Location: | Sec:15 Twp: 2N 68W | Footage: 2181 FNL 1747 FEL | | Bottom Hole Location: | Sec:22 Twp: 2N 68W | Footage: 487 FSL 1733 FEL | | Log Types: | CBL, MWD/GR, CNL, (IND in 05-123-24995, 05-123-26359, 05-123-08587) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 110 ft., Weight: 42.1 , Citings Type: ACTUAL | | Cement: | Sacks: 64, Top: 0 ft., Bottom: 110 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1865 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 727, Top: 0 ft., Bottom: 1865 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 15831 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 2080, Top: 74 ft., Bottom: 15831 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4244 ft. | | | | | SHARON SPRINGS | 7277 ft. | | | | | NIOBRARA | 7431 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 10/20/2017 Interval Top: 7869 ft. Interval Bottom: 15724 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 10/6/2017 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/22/2017 | Treatment End Date: | 9/6/2017 | | Treatment Summary: | "PERF AND FRAC FROM 7869-15,724.
1,452 BBL 7.5% HCL ACID, 17,793 BBL PUMP DOWN, 275,139 BBL SLICKWATER, - 294,384 TOTAL FLUID
2,361,005# 40/70 OTTAWA/ST. PETERS, - 2,361,005# TOTAL SAND."
| | Total fluid used in treatment (bbls): | 294384 | Max pressure during treatment (psi): | 7626 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 76 | | Total acid used in treatment (bbls): | 1452 | Min frac gradient (psi/ft): | 0.88 | | Recycled water used in treatment (bbls): | 3220 | Total flowback volume recovered (bbls): | 3164 | | Fresh water used in treatment (bbls): | 289712 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 2361005 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/20/2017 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 107 | | BBLS_OIL | 157 | | BTU_GAS | 1255 | | CALC_BBLS_H2O | 107 | | CALC_BBLS_OIL | 157 | | CALC_GOR | 1465 | | CALC_MCF_GAS | 230 | | CASING_PRESS | 1400 | | GRAVITY_OIL | 56 | | MCF_GAS | 230 |
| | Perforation Data: | | Interval Top: | 7869 ft. | # Of Holes: | 1798 | | Interval Bottom: | 15724 ft. | Hole Size: | 0.44 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 3090 |
| Total Gas Produced (MCF) | 114538 |
| GOR | 37067 |
| GOR Determination | MCFE |
| Average BOE per Day | 62.564 |
| Average MCFE per Day | 362.866 |
| Federal Financial Assurance | i | |
|
|
