Wellbore #00 Wellbore Classification: OW Status: PR - 7/1/2020 Measured TD: 10850 ft. Vertical TD: 6014 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 7/1/2020 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 3/28/2018 | | Proposed Top PZ Location: | Sec:22 Twp: 9N 59W | Footage: 500 FNL 1654 FEL | | Bottom Hole Location: | Sec:22 Twp: 9N 59W | Footage: 330 FSL 1650 FEL | | Proposed Depth/Form: | 10444 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-681 , Unit Acreage: 3840, Drill Unit: S:10,11,14,15,22,23 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: PLANNED | | Cement: | Sacks: 6, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1850 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 535, Top: 0 ft., Bottom: 1850 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 10896 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 1042, Top: , Bottom: | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6247 ft., Depth: 10444 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

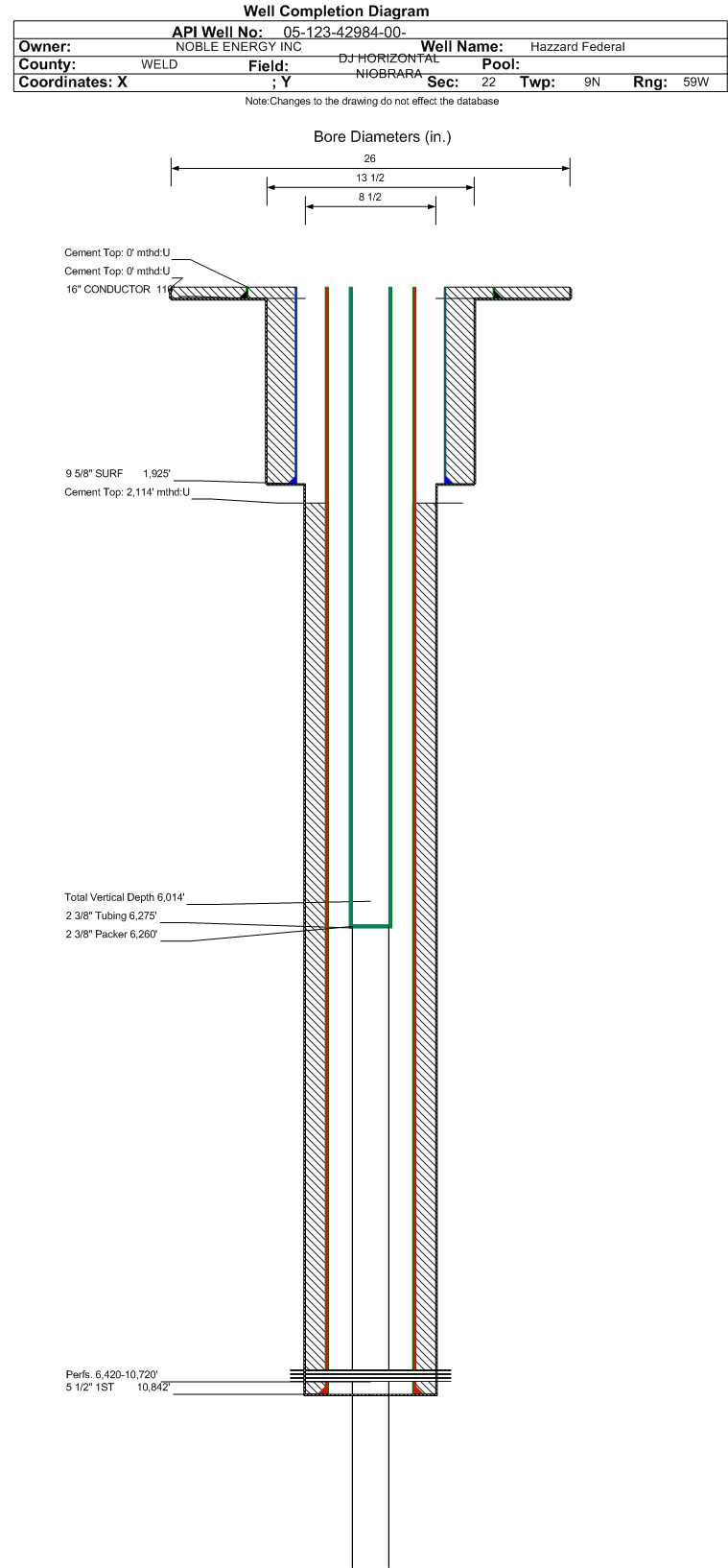

| Wellbore Completed | | Completion Date: | 3/2/2017 | | Spud Date: | 2/27/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 10850 ft. | Measured PB depth: | 10799 ft. | | True Vertical TD: | 6014 ft. | True Vertical PB depth: | 6014 ft. | | Top PZ Location: | Sec:22 Twp: 9N 59W | Footage: 518 FNL 1718 FEL | | Bottom Hole Location: | Sec:22 Twp: 9N 59W | Footage: 331 FSL 1652 FEL | | Log Types: | CBL, MWD/LWD, (DIL in API 123-42982) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 110 ft., Weight: 42.09 , Citings Type: ACTUAL | | Cement: | Sacks: 64, Top: 0 ft., Bottom: 110 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1925 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 666, Top: 0 ft., Bottom: 1925 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 10842 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 1136, Top: 2114 ft., Bottom: 10842 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3441 ft. | | | | | SUSSEX | 4124 ft. | | | | | SHANNON | 4566 ft. | | | | | TEEPEE BUTTES | 5318 ft. | | | | | NIOBRARA | 6076 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 7/1/2020 Interval Top: 6420 ft. Interval Bottom: 10720 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 12/11/2017 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/22/2017 | Treatment End Date: | 9/1/2017 | | Treatment Summary: | FRAC'D W/ 535 BBLS 15% HCl, 4852754 LBS 40/70 SAND, AND 115620 BBLS SLURRY. | | Total fluid used in treatment (bbls): | 116154 | Max pressure during treatment (psi): | 7233 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.46 | | Type Of gas: | | Number Of staged intervals: | 216 | | Total acid used in treatment (bbls): | 535 | Min frac gradient (psi/ft): | 0.77 | | Recycled water used in treatment (bbls): | 3338 | Total flowback volume recovered (bbls): | 289 | | Fresh water used in treatment (bbls): | 112281 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4852754 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6275 ft. | | Tubing Packer Depth: | 6280 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/20/2017 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 557 | | BBLS_OIL | 395 | | BTU_GAS | 1342 | | CALC_BBLS_H2O | 557 | | CALC_BBLS_OIL | 395 | | CALC_GOR | 501 | | CALC_MCF_GAS | 198 | | CASING_PRESS | 7 | | GRAVITY_OIL | 37 | | MCF_GAS | 198 | | TUBING_PRESS | 710 |
| | Perforation Data: | | Interval Top: | 6420 ft. | # Of Holes: | 648 | | Interval Bottom: | 10720 ft. | Hole Size: | 0.48 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2649 |
| Total Gas Produced (MCF) | 2930 |
| GOR | 1106 |
| GOR Determination | BOE |
| Average BOE per Day | 8.637 |
| Average MCFE per Day | 50.092 |
| Federal Financial Assurance | i | |
|
|
