Wellbore #00 Wellbore Classification: OW Status: PR - 7/1/2020 Measured TD: 17216 ft. Vertical TD: 6023 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 7/1/2020 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 3/28/2018 | | Proposed Top PZ Location: | Sec:22 Twp: 9N 59W | Footage: 400 FNL 1405 FEL | | Bottom Hole Location: | Sec:10 Twp: 9N 59W | Footage: 330 FNL 1375 FEL | | Proposed Depth/Form: | 16153 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-681 , Unit Acreage: 3840, Drill Unit: S:10,11,14,15,22,23 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: PLANNED | | Cement: | Sacks: 6, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1850 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 535, Top: 0 ft., Bottom: 1850 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17206 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 1803, Top: , Bottom: | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6353 ft., Depth: 16153 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

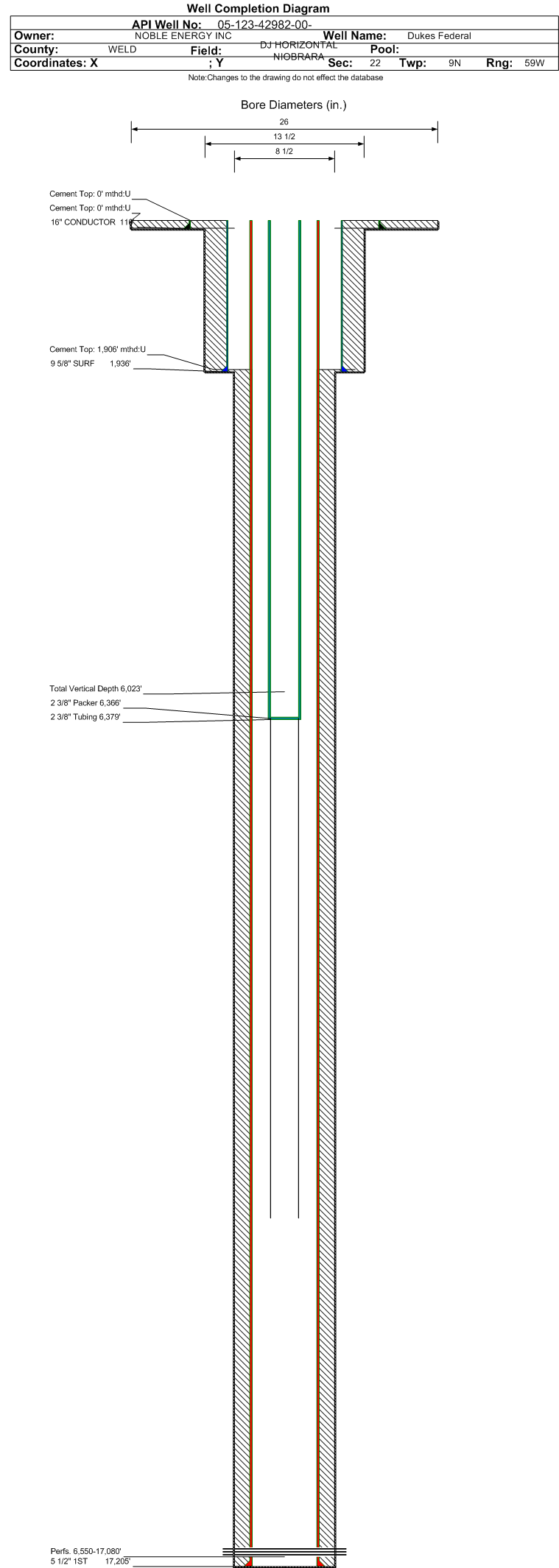

| Wellbore Completed | | Completion Date: | 2/23/2017 | | Spud Date: | 2/18/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 17216 ft. | Measured PB depth: | 17163 ft. | | True Vertical TD: | 6023 ft. | True Vertical PB depth: | 6023 ft. | | Top PZ Location: | Sec:15 Twp: 9N 59W | Footage: 400 FNL 2475 FEL | | Bottom Hole Location: | Sec:10 Twp: 9N 59W | Footage: 337 FNL 1415 FEL | | Log Types: | CBL, MWD/LWD, Resistivity | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 110 ft., Weight: 42.09 , Citings Type: ACTUAL | | Cement: | Sacks: 64, Top: 0 ft., Bottom: 100 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1936 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 671, Top: 0 ft., Bottom: 1936 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17205 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 1895, Top: 1906 ft., Bottom: 17216 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3443 ft. | | | | | SUSSEX | 4152 ft. | | | | | TEEPEE BUTTES | 5388 ft. | | | | | SHANNON | 6162 ft. | | | | | NIOBRARA | 6178 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 7/1/2020 Interval Top: 6550 ft. Interval Bottom: 17080 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 12/8/2017 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/5/2017 | Treatment End Date: | 9/14/2017 | | Treatment Summary: | NIOBRARA FRAC'D WITH 107466GALS 15% HCl, 9887332 LBS 40/70 SAND, AND 288636 BBLS SLURRY | | Total fluid used in treatment (bbls): | 292694 | Max pressure during treatment (psi): | 8139 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.46 | | Type Of gas: | | Number Of staged intervals: | 262 | | Total acid used in treatment (bbls): | 2558 | Min frac gradient (psi/ft): | 0.88 | | Recycled water used in treatment (bbls): | 1500 | Total flowback volume recovered (bbls): | 41 | | Fresh water used in treatment (bbls): | 288636 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 9887332 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6379 ft. | | Tubing Packer Depth: | 6386 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/15/2017 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1193 | | BBLS_OIL | 467 | | BTU_GAS | 1390 | | CALC_BBLS_H2O | 1193 | | CALC_BBLS_OIL | 467 | | CALC_GOR | 565 | | CALC_MCF_GAS | 264 | | GRAVITY_OIL | 34 | | MCF_GAS | 264 | | TUBING_PRESS | 830 |
| | Perforation Data: | | Interval Top: | 6550 ft. | # Of Holes: | 1572 | | Interval Bottom: | 17080 ft. | Hole Size: | 0.48 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 8904 |
| Total Gas Produced (MCF) | 2001 |
| GOR | 224 |
| GOR Determination | BOE |
| Average BOE per Day | 25.316 |
| Average MCFE per Day | 146.834 |
| Federal Financial Assurance | i | |
|
|
