Wellbore #00 Wellbore Classification: OW Status: PR - 1/17/2018 Measured TD: 11082 ft. Vertical TD: 6115 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 1/17/2018 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 3/28/2018 | | Proposed Top PZ Location: | Sec:21 Twp: 9N 59W | Footage: 1214 FNL 361 FEL | | Bottom Hole Location: | Sec:21 Twp: 9N 59W | Footage: 1212 FNL 328 FWL | | Proposed Depth/Form: | 11042 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-680 , Unit Acreage: 640, Drill Unit: Sec 21: All | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: PLANNED | | Cement: | Sacks: 6, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1850 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 535, Top: 0 ft., Bottom: 1850 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 11051 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 1061, Top: , Bottom: | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6307 ft., Depth: 11042 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

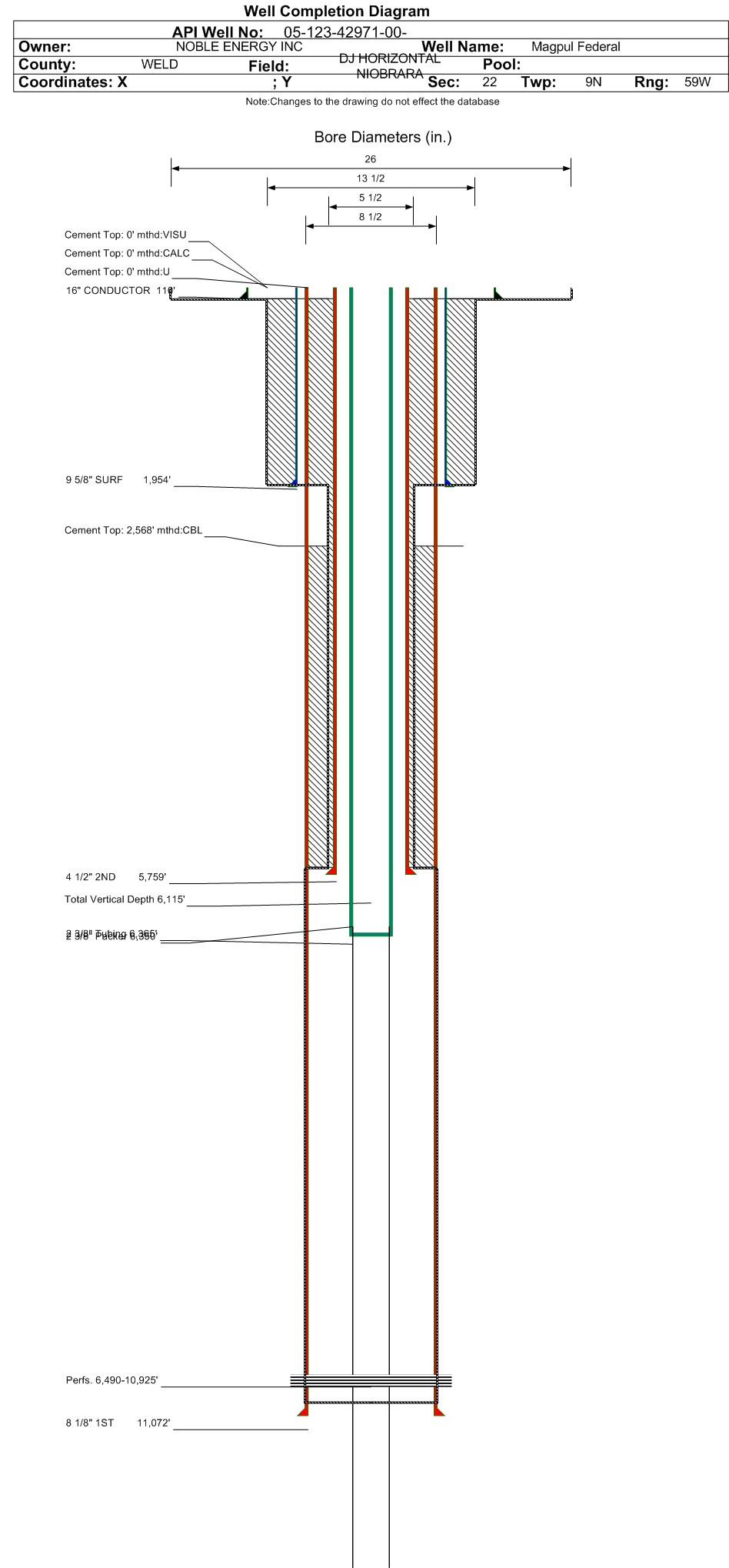

| Wellbore Completed | | Completion Date: | 5/26/2017 | | Spud Date: | 5/22/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 11082 ft. | Measured PB depth: | 11021 ft. | | True Vertical TD: | 6115 ft. | True Vertical PB depth: | 6115 ft. | | Top PZ Location: | Sec:21 Twp: 9N 59W | Footage: 1214 FNL 361 FEL | | Bottom Hole Location: | Sec:21 Twp: 9N 59W | Footage: 1212 FNL 328 FWL | | Log Types: | CBL, MWD/LWD, MUD, (DIL in 123-42969 & 123-42632) | | Log Types: | | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 110 ft., Weight: 42.09 , Citings Type: ACTUAL | | Cement: | Sacks: 64, Top: 0 ft., Bottom: 110 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1954 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 694, Top: 0 ft., Bottom: 1954 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 8.2 in., Top: 0 ft., Depth: 11072 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 1168, Top: 2568 ft., Bottom: 11072 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: 5.5 in., Size: 4.5 in., Top: 0 ft., Depth: 5759 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3287 ft. | | | | | SUSSEX | 4093 ft. | | | | | SHANNON | 4580 ft. | | | | | TEEPEE BUTTES | 5384 ft. | | | | | NIOBRARA | 6068 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 1/17/2018 Interval Top: 6490 ft. Interval Bottom: 10925 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 1/9/2018 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/28/2017 | Treatment End Date: | 11/4/2017 | | Treatment Summary: | niobrara frac'd with 3470 bbls 15% HCl, 6069786 lbs 40/70 sand, and 158300 bbls fluid. | | Total fluid used in treatment (bbls): | 161770 | Max pressure during treatment (psi): | 6510 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.48 | | Type Of gas: | | Number Of staged intervals: | 112 | | Total acid used in treatment (bbls): | 3470 | Min frac gradient (psi/ft): | 0.75 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 6393 | | Fresh water used in treatment (bbls): | 158300 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 6069786 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6365 ft. | | Tubing Packer Depth: | 6370 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/17/2018 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1086 | | BBLS_OIL | 450 | | BTU_GAS | 1342 | | CALC_BBLS_H2O | 1086 | | CALC_BBLS_OIL | 450 | | CALC_GOR | 528 | | CALC_MCF_GAS | 238 | | CASING_PRESS | 6 | | GRAVITY_OIL | 37 | | MCF_GAS | 238 | | TUBING_PRESS | 588 |
| | Perforation Data: | | Interval Top: | 6490 ft. | # Of Holes: | 672 | | Interval Bottom: | 10925 ft. | Hole Size: | 0.48 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2196 |
| Total Gas Produced (MCF) | 7645 |
| GOR | 3481 |
| GOR Determination | BOE |
| Average BOE per Day | 9.609 |
| Average MCFE per Day | 55.737 |
| Federal Financial Assurance | i | |
|
|
