Wellbore #00 Wellbore Classification: OW Status: PR - 7/1/2018 Measured TD: 20575 ft. Vertical TD: 7096 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 7/1/2018 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 3/14/2018 | | Proposed Top PZ Location: | Sec:1 Twp: 5N 66W | Footage: 494 FNL 504 FEL | | Bottom Hole Location: | Sec:13 Twp: 5N 66W | Footage: 2127 FNL 490 FEL | | Proposed Depth/Form: | 20664 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 800, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 42 , Citings Type: PLANNED | | Cement: | Sacks: 80, Top: 0 ft., Bottom: 100 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 1500 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 20664 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 1977, Top: 1500 ft., Bottom: 20664 ft. |
| | |

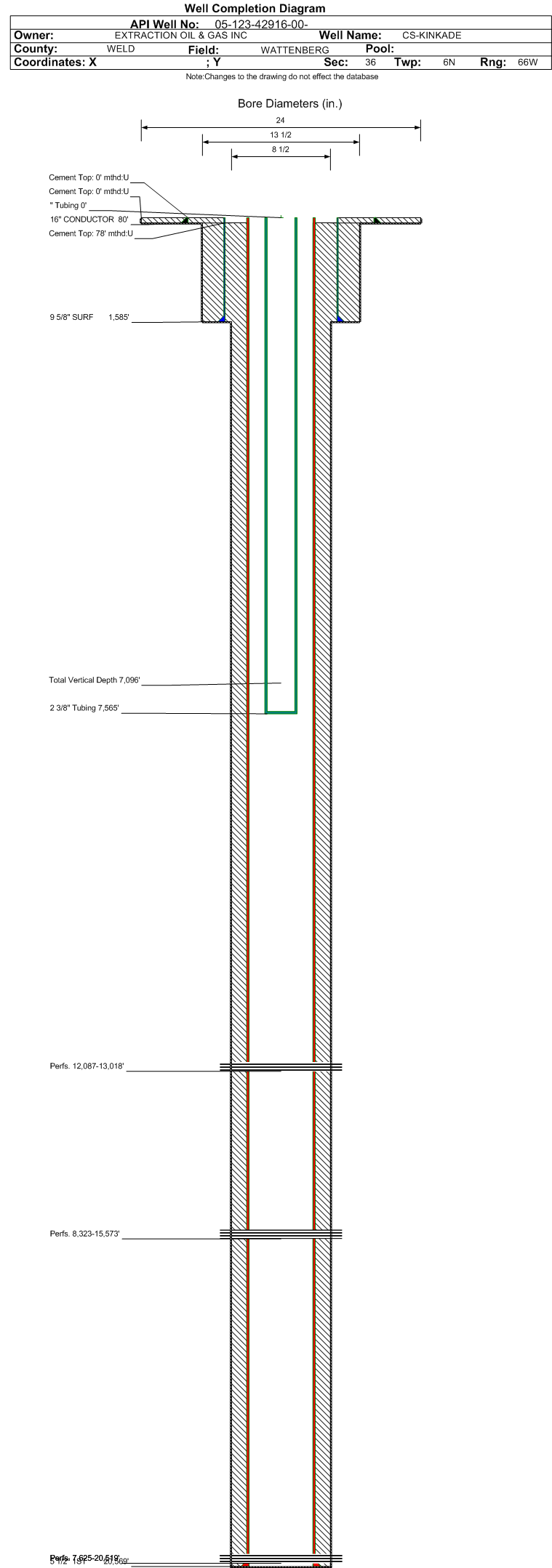

| Wellbore Completed | | Completion Date: | 10/1/2017 | | Spud Date: | 6/17/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 20575 ft. | Measured PB depth: | 20569 ft. | | True Vertical TD: | 7096 ft. | True Vertical PB depth: | 7096 ft. | | Top PZ Location: | Sec:1 Twp: 5N 66W | Footage: 494 FNL 504 FEL | | Bottom Hole Location: | Sec:13 Twp: 5N 66W | Footage: 2127 FNL 490 FEL | | Log Types: | CBL, Mud, MWD/LWD, (Triple Combo on 123-42915). | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1585 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 550, Top: 0 ft., Bottom: 1585 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 20569 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 3250, Top: 78 ft., Bottom: 20569 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3690 ft. | | N | N | | SUSSEX | 4260 ft. | | N | N | | SHANNON | 4951 ft. | | N | N | | SHARON SPRINGS | 6880 ft. | | N | N | | NIOBRARA | 6976 ft. | | N | N | | FORT HAYS | 7462 ft. | | N | N | | CODELL | 7610 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: CM - 10/4/2018 Interval Top: 12087 ft. Interval Bottom: 13018 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 8/10/2018 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 1/17/2018 | Treatment End Date: | 1/30/2018 | | Treatment Summary: | Producing Interval: 12087'-13018'. | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 12087 ft. | # Of Holes: | 171 | | Interval Bottom: | 13018 ft. | Hole Size: | 0.42 in. |
|
Formation FTHYS Formation Classification: OW Status: CM - 10/4/2018 Interval Top: 8323 ft. Interval Bottom: 15573 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | 8/10/2018 | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 1/17/2018 | Treatment End Date: | 1/30/2018 | | Treatment Summary: | Producing Intervals: 8323'-8759'; 10601'-10740'; 11310'-11980'; 13156'-13496'; 15509'-15573'. | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 8323 ft. | # Of Holes: | 324 | | Interval Bottom: | 15573 ft. | Hole Size: | 0.42 in. |
|
Formation CODL Formation Classification: OW Status: CM - 10/4/2018 Interval Top: 7625 ft. Interval Bottom: 20519 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 8/10/2018 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 1/17/2018 | Treatment End Date: | 1/30/2018 | | Treatment Summary: | Producing Intervals: 7625'-8290'; 8789'-10571'; 10768'-11281'; 13062'-13125'; 13527'-15478'; 15603'-20519'. | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7625 ft. | # Of Holes: | 1808 | | Interval Bottom: | 20519 ft. | Hole Size: | 0.42 in. |
|
Formation NBFHC Formation Classification: OW Status: PR - 8/27/2018 Interval Top: 7625 ft. Interval Bottom: 20519 ft.| Completed Information for Formation NIOBRARA-FT HAYS-CODELL | | 1st Production Date: | 8/10/2018 | Choke Size: | | | Formation Name: | NIOBRARA-FT HAYS-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 1/17/2018 | Treatment End Date: | 1/30/2018 | | Treatment Summary: | Frac'd Niobrara-Fort Hays-Codell with 65-stage plug-and-perf;
13000580 total lbs proppant pumped: 30/50 mesh sand;
22929 total bbls fluid pumped: 22917 bbls fresh water and 12 bbls 15% HCL acid. | | Total fluid used in treatment (bbls): | 22929 | Max pressure during treatment (psi): | 8553 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 65 | | Total acid used in treatment (bbls): | 12 | Min frac gradient (psi/ft): | 0.91 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 20164 | | Fresh water used in treatment (bbls): | 22917 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 13000580 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7565 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/27/2018 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 94 | | BBLS_OIL | 339 | | BTU_GAS | 1300 | | CALC_BBLS_H2O | 94 | | CALC_BBLS_OIL | 339 | | CALC_GOR | 5209 | | CALC_MCF_GAS | 1766 | | CASING_PRESS | 2906 | | GRAVITY_OIL | 40 | | MCF_GAS | 1766 | | TUBING_PRESS | 2715 |
| | Perforation Data: | | Interval Top: | 7625 ft. | # Of Holes: | 2303 | | Interval Bottom: | 20519 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 10211 |
| Total Gas Produced (MCF) | 148040 |
| GOR | 14498 |
| GOR Determination | BOE |
| Average BOE per Day | 97.780 |
| Average MCFE per Day | 567.126 |
| Federal Financial Assurance | i | |
|
|
