Wellbore #00 Wellbore Classification: OW Status: PR - 5/26/2018 Measured TD: 13855 ft. Vertical TD: 5683 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 5/26/2018 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 3/3/2018 | | Proposed Top PZ Location: | Sec:30 Twp: 10N 57W | Footage: 2554 FNL 399 FWL | | Bottom Hole Location: | Sec:19 Twp: 10N 57W | Footage: 100 FNL 453 FWL | | Proposed Depth/Form: | 13720 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-369 , Unit Acreage: 960, Drill Unit: N/2 S30, All S19 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 65 , Citings Type: PLANNED | | Cement: | Sacks: 179, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1580 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 645, Top: 0 ft., Bottom: 1580 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 13720 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 2003, Top: 0 ft., Bottom: 13720 ft. |
| | |
| Wellbore Completed | | Completion Date: | 10/27/2016 | | Spud Date: | 10/23/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 13855 ft. | Measured PB depth: | 13799 ft. | | True Vertical TD: | 5683 ft. | True Vertical PB depth: | 5684 ft. | | Top PZ Location: | Sec:30 Twp: 10 57W | Footage: 2485 FNL 410 FWL | | Bottom Hole Location: | Sec:19 Twp: 10N 57W | Footage: 85 FNL 456 FWL | | Log Types: | MWD/LWD, Mud Log, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 101 ft., Weight: 65 , Citings Type: ACTUAL | | Cement: | Sacks: 153, Top: 0 ft., Bottom: 101 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2065 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 645, Top: 0 ft., Bottom: 2065 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 13845 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 1910, Top: 1560 ft., Bottom: 13855 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PIERRE | 1418 ft. | | N | N | | HYGIENE | 3195 ft. | | N | N | | SUSSEX | 3833 ft. | | N | N | | SHARON SPRINGS | 5794 ft. | | N | N | | NIOBRARA | 5801 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 5/26/2018 Interval Top: 6154 ft. Interval Bottom: 13754 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 5/22/2018 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 4/6/2018 | Treatment End Date: | 4/13/2018 | | Treatment Summary: | 50 Stage Plug & Perf, 961703 lbs 100 Mesh, 3466060 lbs 40/70 Prem White sand, 107 bbls 15% HCl, 196781 bbls slickwater | | Total fluid used in treatment (bbls): | 196888 | Max pressure during treatment (psi): | 7145 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 50 | | Total acid used in treatment (bbls): | 107 | Min frac gradient (psi/ft): | 0.80 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 5873 | | Fresh water used in treatment (bbls): | 196781 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4427763 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |

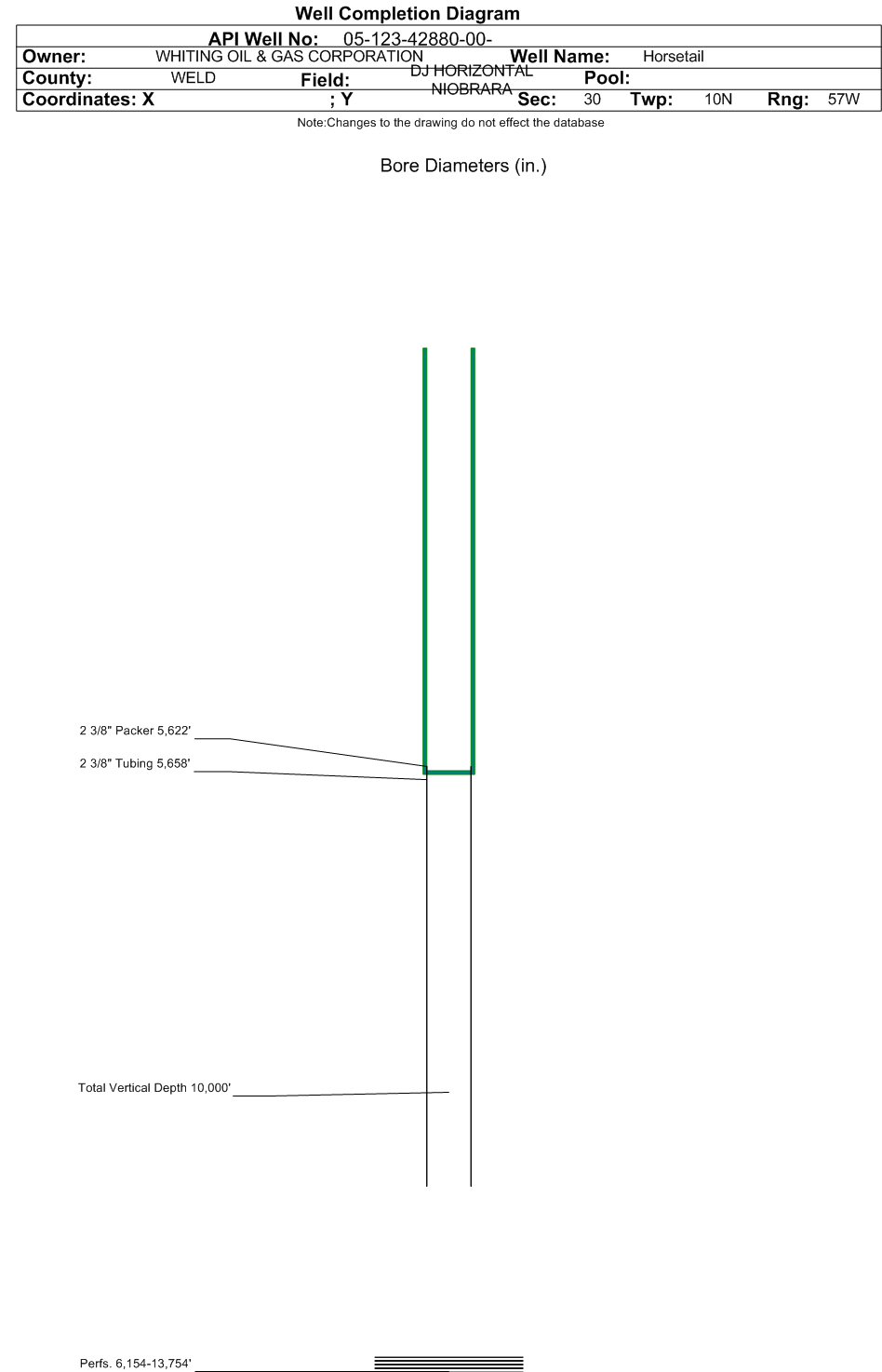

| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5658 ft. | | Tubing Packer Depth: | 5642 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/26/2018 | Test Method: | Separator | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 816 | | BBLS_OIL | 519 | | BTU_GAS | 1524 | | CALC_BBLS_H2O | 816 | | CALC_BBLS_OIL | 519 | | CALC_GOR | 303 | | CALC_MCF_GAS | 157 | | CASING_PRESS | 160 | | GRAVITY_OIL | 34 | | MCF_GAS | 157 | | TUBING_PRESS | 650 |
| | Perforation Data: | | Interval Top: | 6154 ft. | # Of Holes: | 1999 | | Interval Bottom: | 13754 ft. | Hole Size: | 0.375 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 7406 |
| Total Gas Produced (MCF) | 2323 |
| GOR | 313 |
| GOR Determination | BOE |
| Average BOE per Day | 21.366 |
| Average MCFE per Day | 123.929 |
| Federal Financial Assurance | i | |
|
|
