Wellbore #00 Wellbore Classification: OW Status: SI - 1/1/2025 Measured TD: 16383 ft. Vertical TD: 6651 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 1/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 2/4/2018 | | Proposed Top PZ Location: | Sec:26 Twp: 5N 64W | Footage: 216 FNL 623 FWL | | Bottom Hole Location: | Sec:25 Twp: 5N 64W | Footage: 171 FNL 501 FEL | | Proposed Depth/Form: | 13629 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 640, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1400 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 920, Top: 0 ft., Bottom: 1400 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 16363 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 2035, Top: 0 ft., Bottom: 16363 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 5840 ft., Depth: 13629 ft., Weight: 13.5 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

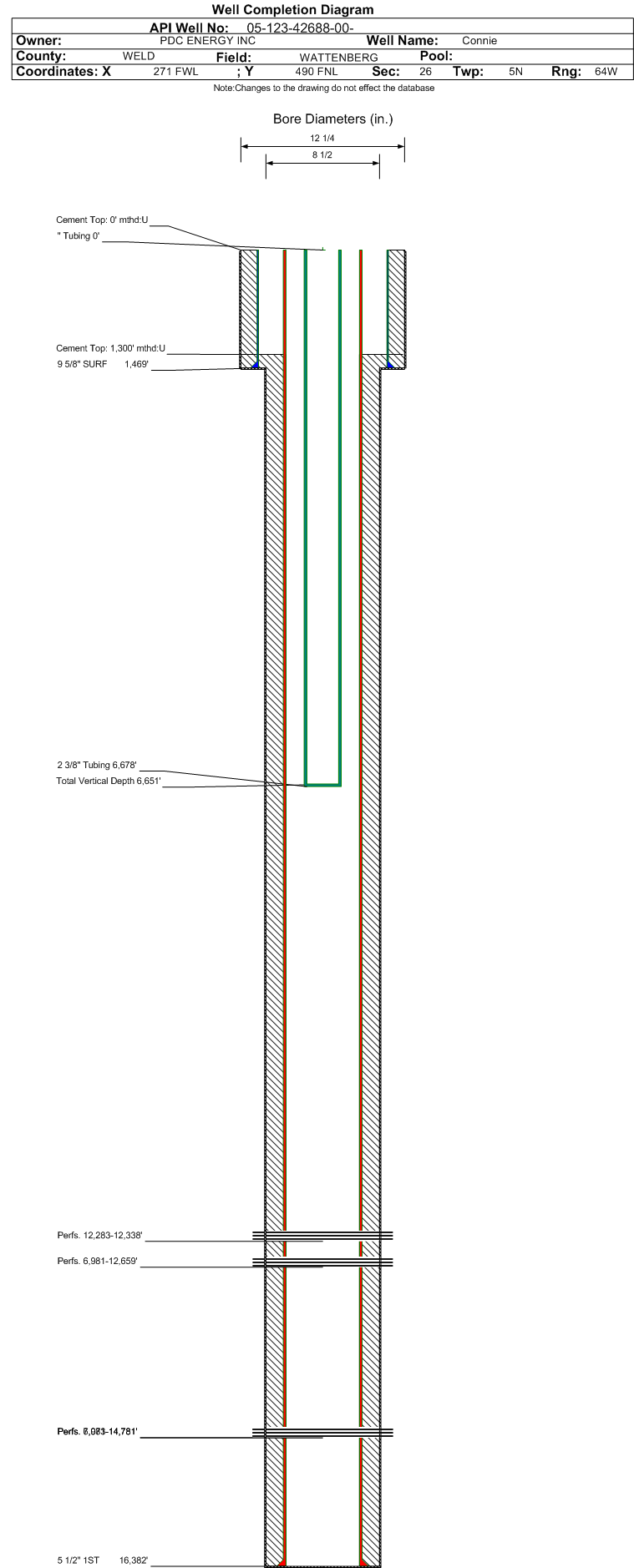

| Wellbore Completed | | Completion Date: | 5/26/2016 | | Spud Date: | 5/16/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 16383 ft. | Measured PB depth: | 16367 ft. | | True Vertical TD: | 6651 ft. | True Vertical PB depth: | 6651 ft. | | Top PZ Location: | Sec:26 Twp: 5N 64W | Footage: 216 FNL 623 FWL | | Bottom Hole Location: | Sec:25 Twp: 5N 64W | Footage: 171 FNL 501 FEL | | Log Types: | CBL, MWD (DIL in 123-19303) | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1469 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 680, Top: 0 ft., Bottom: 1469 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 16382 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 2630, Top: 1300 ft., Bottom: 16382 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3492 ft. | | | | | SUSSEX | 3977 ft. | | | | | SHARON SPRINGS | 6400 ft. | | | | | NIOBRARA | 6522 ft. | | | | | FORT HAYS | 7073 ft. | | | | | CODELL | 12283 ft. | | | |
Formation CODL Formation Classification: OW Status: CM - 3/13/2017 Interval Top: 12283 ft. Interval Bottom: 12338 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 3/13/2017 | Treatment End Date: | N/A | | Treatment Summary: | Completed Depths: 12283-12338 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 12283 ft. | # Of Holes: | 1068 | | Interval Bottom: | 12338 ft. | Hole Size: | 0.42 in. |
|
Formation FTHYS Formation Classification: OW Status: CM - 3/13/2017 Interval Top: 7073 ft. Interval Bottom: 14781 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 3/13/2017 | Treatment End Date: | N/A | | Treatment Summary: | Completed Depths: 7073-9280, 9618-12283, 12659-14781 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 7073 ft. | # Of Holes: | 1068 | | Interval Bottom: | 14781 ft. | Hole Size: | 0.42 in. |
|
Formation NBFHC Formation Classification: OW Status: SI - 1/1/2025 Interval Top: 6981 ft. Interval Bottom: 14781 ft.| Completed Information for Formation NIOBRARA-FT HAYS-CODELL | | 1st Production Date: | 12/16/2016 | Choke Size: | | | Formation Name: | NIOBRARA-FT HAYS-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/20/2016 | Treatment End Date: | 11/6/2016 | | Treatment Summary: | 55 Stage Plug and Perf, Perf'd from 6981-16193, 3 Toe Sleeves from 16221-16315, Frac plug at 14781
Total Fluid: 199,668 bbls
Gel Fluid: 127,064 bbls
Slickwater Fluid: 71,313 bbls
15% HCl Acid: 1,291 bbls
Total Proppant: 11,509,100 lbs
Silica Proppant: 11,509,100 lbs
Method for determining flowback: measuring flowback tank volumes | | Total fluid used in treatment (bbls): | 199668 | Max pressure during treatment (psi): | 4480 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 55 | | Total acid used in treatment (bbls): | 1291 | Min frac gradient (psi/ft): | 0.96 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 11799 | | Fresh water used in treatment (bbls): | 198378 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 11509100 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6678 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/23/2016 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 316 | | BBLS_OIL | 535 | | BTU_GAS | 1395 | | CALC_BBLS_H2O | 316 | | CALC_BBLS_OIL | 535 | | CALC_GOR | 2241 | | CALC_MCF_GAS | 1199 | | CASING_PRESS | 2701 | | GRAVITY_OIL | 50 | | MCF_GAS | 1199 | | TUBING_PRESS | 1788 |
| | Perforation Data: | | Interval Top: | 6981 ft. | # Of Holes: | 1068 | | Interval Bottom: | 14781 ft. | Hole Size: | 0.42 in. |
|
Formation NBRR Formation Classification: OW Status: CM - 3/13/2017 Interval Top: 6981 ft. Interval Bottom: 12659 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 3/13/2017 | Treatment End Date: | N/A | | Treatment Summary: | Completed Depths: 6981-7073, 9280-9618, 12338-12659 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 6981 ft. | # Of Holes: | 1068 | | Interval Bottom: | 12659 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
11/2024 - 10/2025 |
| Total Oil Produced (Barrels) | 161 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | BOE |
| Average BOE per Day | 0.440 |
| Average MCFE per Day | 2.551 |
| Federal Financial Assurance | i | |
|
|
