Wellbore #00 Wellbore Classification: OW Status: PR - 9/6/2017 Measured TD: 17887 ft. Vertical TD: 7481 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 9/6/2017 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 12/16/2017 | | Proposed Top PZ Location: | Sec:26 Twp: 1N 67W | Footage: 268 FNL 350 FWL | | Bottom Hole Location: | Sec:35 Twp: 1N 67W | Footage: 465 FSL 52 FWL | | Proposed Depth/Form: | 17696 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 720, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1823 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 680, Top: 0 ft., Bottom: 1823 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7881 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 890, Top: 0 ft., Bottom: 7881 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6783 ft., Depth: 17696 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 710, Top: 6783 ft., Bottom: 17696 ft. |
| | |

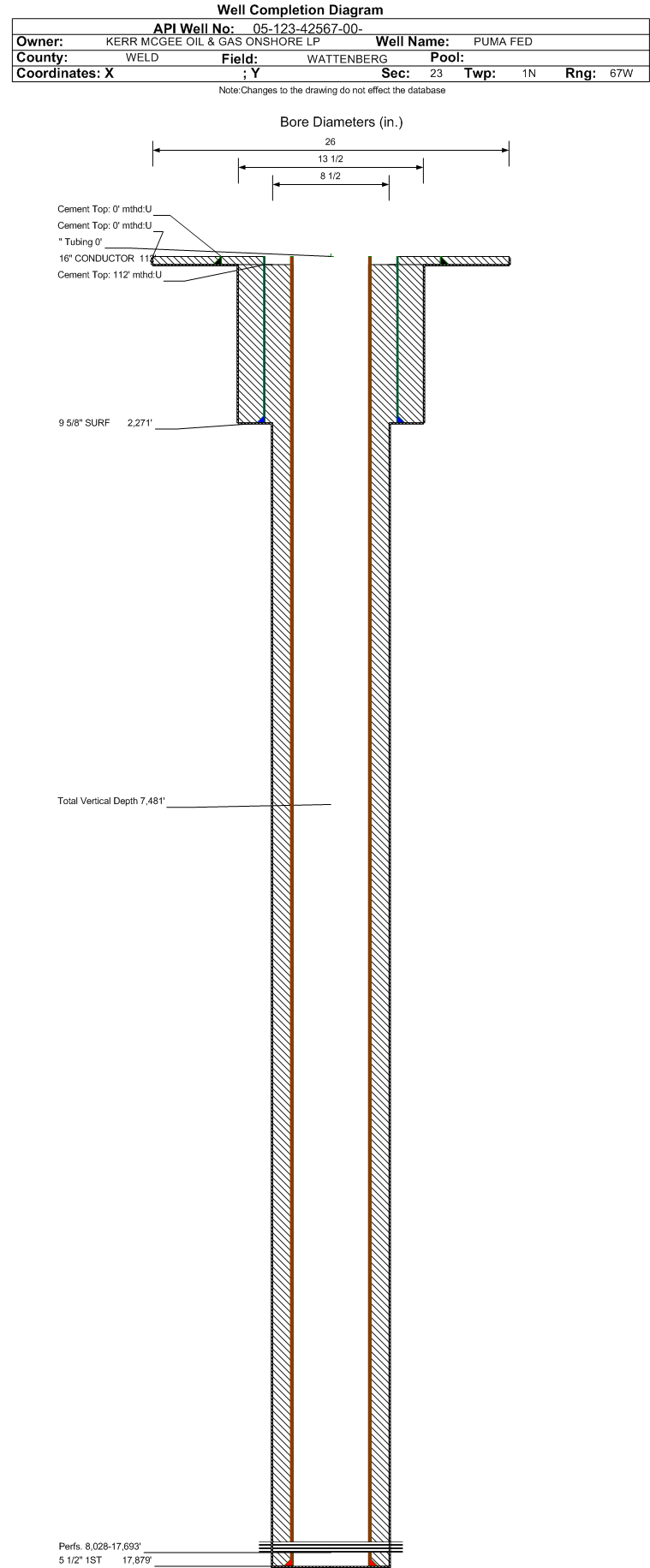

| Wellbore Completed | | Completion Date: | 3/29/2017 | | Spud Date: | 1/11/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 17887 ft. | Measured PB depth: | 17877 ft. | | True Vertical TD: | 7481 ft. | True Vertical PB depth: | 7481 ft. | | Top PZ Location: | Sec:26 Twp: 1N 67W | Footage: 240 FNL 350 FWL | | Bottom Hole Location: | Sec:35 Twp: 1N 67W | Footage: 469 FSL 75 FWL | | Log Types: | CBL, MWD/GR, (RESISTIVITY in 05-123-42568) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 112 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 64, Top: 0 ft., Bottom: 112 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2271 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 880, Top: 0 ft., Bottom: 2271 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17879 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 2480, Top: 112 ft., Bottom: 17879 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4739 ft. | | | | | SHARON SPRINGS | 7467 ft. | | | | | NIOBRARA | 7488 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 9/6/2017 Interval Top: 8028 ft. Interval Bottom: 17693 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 8/27/2017 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/7/2017 | Treatment End Date: | 8/18/2017 | | Treatment Summary: | "PERF AND FRAC FROM 8028-17,693.
710 BBL 7.5% HCL ACID, 10,604 BBL PUMP DOWN, 262,993 BBL SLICKWATER, - 274,307 TOTAL FLUID
7,747,250# 40/70 OTTAWA/ST. PETERS, - 7,747,250# TOTAL SAND."
| | Total fluid used in treatment (bbls): | 274307 | Max pressure during treatment (psi): | 7652 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 37 | | Total acid used in treatment (bbls): | 710 | Min frac gradient (psi/ft): | 0.87 | | Recycled water used in treatment (bbls): | 11810 | Total flowback volume recovered (bbls): | 2005 | | Fresh water used in treatment (bbls): | 261787 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 7747250 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/6/2017 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 28 | | BBLS_OIL | 78 | | BTU_GAS | 1304 | | CALC_BBLS_H2O | 28 | | CALC_BBLS_OIL | 78 | | CALC_GOR | 2385 | | CALC_MCF_GAS | 186 | | CASING_PRESS | 1350 | | GRAVITY_OIL | 53 | | MCF_GAS | 186 |
| | Perforation Data: | | Interval Top: | 8028 ft. | # Of Holes: | 876 | | Interval Bottom: | 17693 ft. | Hole Size: | 0.44 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 6196 |
| Total Gas Produced (MCF) | 82014 |
| GOR | 13236 |
| GOR Determination | BOE |
| Average BOE per Day | 55.855 |
| Average MCFE per Day | 323.949 |
| Federal Financial Assurance | i | |
|
|
